10-30kva High Frequency UPS , 3 Phase Uninterrupted Power Supply with 0.9 Output PF

China 10-30kva High Frequency UPS , 3 Phase Uninterrupted Power Supply with 0.9 Output PF supplier
10-30kva High Frequency UPS , 3 Phase Uninterrupted Power Supply with 0.9 Output PF supplier 10-30kva High Frequency UPS , 3 Phase Uninterrupted Power Supply with 0.9 Output PF supplier

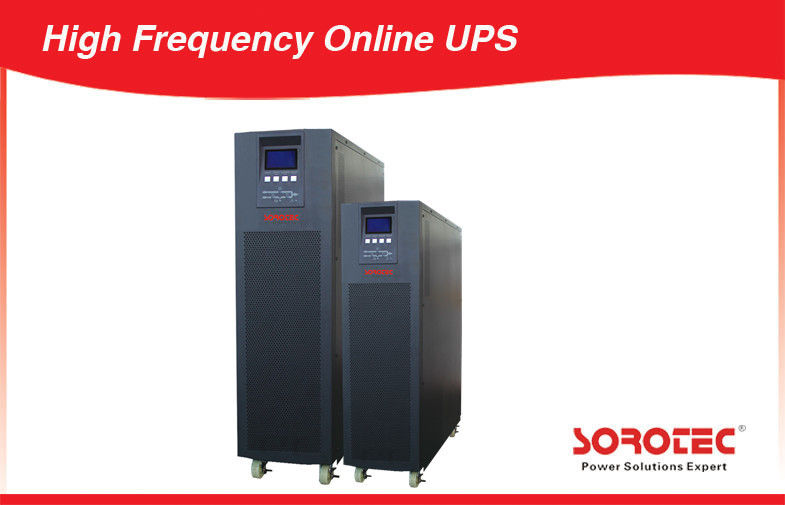

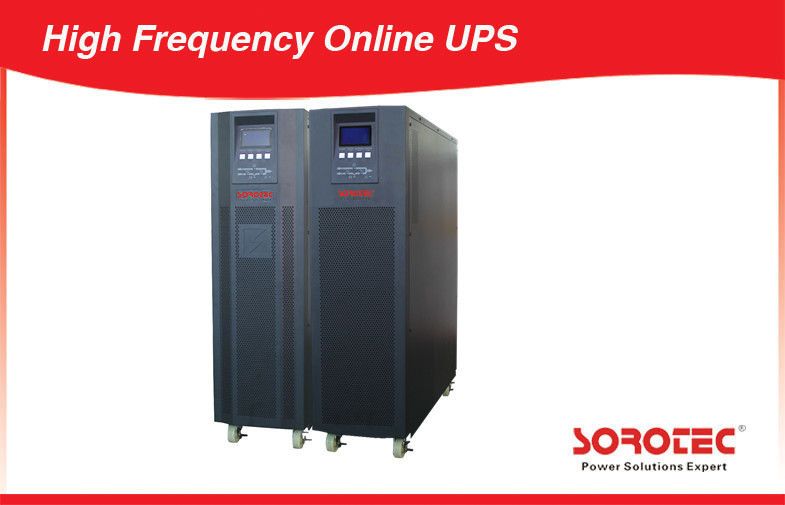

Large Image :  10-30kva High Frequency UPS , 3 Phase Uninterrupted Power Supply with 0.9 Output PF

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9335C Plus 10-30kVA Online UPS

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS Online UPS
Price: Negotiable Price
Packaging Details: Standard Exported Cartons and Pallets for High Frequency Online UPS
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Product: 3 Phase Uninterrupted Power Supply Online UPS UPS Capacity: 10-30kva
Output Power Factor: 0.9 Wave Form: Pure Sine Wave
Frequency Range: 50/60hz Input Voltage Range: 110-300vac
Application: Computers/Telecom/Data Centre Color: Black
Sample: Available

10-30kva High Efficiency IGBT Rectifier 3 Phase Uninterrupted Power Supply Online UPS



HP9335C Series High Frequency Online UPS Uninterrupted Power Supply System

3Ph in 3Ph out,10-30kva,output Power Factor 0.9,adjustable Battery Numbers via Display Screen,True Double-Conversion,ECO Mode For Energy Saving,Automatic Charging in Off Mode.



Key Features:

  • Output power factor 0.9
  • True double-conversion
  • Optional N+X parallel redundancy
  • Optional isolation transformer offers full isolation
  • Wide input voltage range (110-300 VAC)
  • Generator Input Available
  • Accepts dual-mains inputs
  • Adjustable battery numbers
  • Maintenance bypass available
  • 50Hz/60Hz frequency converter mode
  • ECO mode operation for energy saving
  • Emergency power off function (EPO)
  • Active power factor correction in all phases
  • DSP technology guarantees high performance
  • SNMP+USB+RS-232 multiple communications
  • 3-stage extendable charging design for optimized battery performance



Technical Parameters

MODEL HP9335C Plus 10-30KVA
10K 10K-XL 15K 15K-XL 20K 20K-XL 30K 30K-XL
CAPACITY 10KVA / 9KW 15KVA / 13.5KW 20KVA / 18KW 30KVA / 27KW
PHASE 3 Phase with Neutral
INPUT
Voltage Range Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
Low Line Comeback Low Line Loss Voltage + 10V
High Line Loss 300 VAC(Ph-N) ± 3 %
High Line Comeback High Line Loss Voltage - 10V
Phase Three phase with ground
Power Factor ≥ 0.99 at 100% Load
OUTPUT
Output voltage 208/220/230/240VAC(Ph-N)
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload AC mode 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
Battery mode 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
Current Crest Ratio 3:1 max
Harmonic Distortion ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time Line←→Battery 0 ms
Inverte←→Bypass 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
Line←→ECO <10 ms
EFFICIENCY
AC mode > 89% > 89% > 89% > 90%
Battery Mode > 86% > 88% > 87% > 89%
BATTERY
Standard Model Type







12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah
Numbers 20(18-20 adjustable) 2 x 20(18-20 adjustable) 2 x 20(18-20 adjustable) 3 x 20(18-20 adjustable)
Recharge Time 9 hours recover to 90% capacity
Charging Current 1.0 A ± 10% (max.) 2.0 A ± 10% (max.) 2.0 A ± 10% (max.) 4.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
Long-run Model Type Depending on applications
Numbers 18-20
Charging Current 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 12.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
PHYSICAL
Standard Model Dimension,DxWxH(mm) 832 X250X894 832 X250X1275
Long-run Model Dimension,DxWxH(mm) 609 X250X768 832 X250X828
ENVIRONMENT
Operation Temperature 0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity <95 % and non-condensing
Operation Altitude <1000m
Acoustic Noise Level Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
USB Power management from SNMP manager and web browser
