10kVA 9kw High Frequency Prue Sine Wave Inverter Single Phase for Bank Station and Network

China 10kVA 9kw High Frequency Prue Sine Wave Inverter Single Phase for Bank Station and Network supplier
10kVA 9kw High Frequency Prue Sine Wave Inverter Single Phase for Bank Station and Network supplier 10kVA 9kw High Frequency Prue Sine Wave Inverter Single Phase for Bank Station and Network supplier

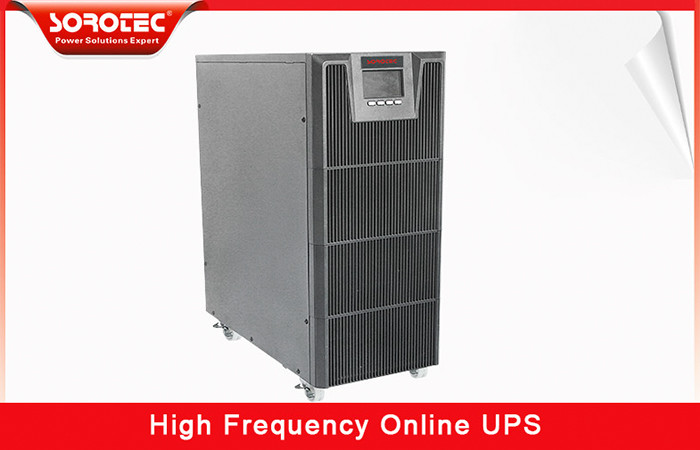

Large Image :  10kVA 9kw High Frequency Prue Sine Wave Inverter Single Phase for Bank Station and Network

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9116C Plus 6-10KVA Online UPS

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS High Frequency Online UPS
Price: 1-1000USD
Packaging Details: Standard Exported Cartons and Pallets for High Frequency Online UPS
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000PCS/Month for High Frequency Online UPS
Contact Now
Detailed Product Description
Product Name: High Frequency Online UPS Power Supply UPS Capacity: 6-10KVA
Power Factor: 0.9 Input Voltage: 120-275VAC
Frequency: 40-70HZ Inbuilt Battery: 180VDC
Weight: 59KG Dimension: 248*500*565mm

10kVA 9kw High Frequency Prue Sine Wave Inverter Single Phase for Bank Station and Network



Typical Application

Date centre,bank station,network,communication equipment,office,automatic equipment,monitors equipment control system.



Quick detail

Product Name High Frequency Online UPS Power Supply
Function Stable to output and Uninterrupted Power Supply for loads
Model HP9116C PLUS 6-10KVA
Output Power Factor 0.9
Nominal voltage 220/230/240/380AC
Input voltage regulation 220±2%VAC
Operation Temperature 0-40℃
Advantages:   High Efficiency ,Small Size,Light Weight,Low Noise ,Stable to output



Powerfull Function,Output PF.= 0.9

Output Power Factor 0.9 can take more loads

Three phase input model support three phase PFC

Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

Efficiency up to 93.5%when take the 30%load,ECO mode efficiency up to 98%



Multifunction Friendly Design&Advanced Parallel Technology

Frequency conversion provides more stable output

Select trip technology avoid and isolation system fault

Flexible extension capacity and redundance management

On line mode provides higher system availability

High efficiency mode provides more economic operation

Stable parallel control technology support 3 units for parallel working



Highly Flexible & Extendable

1.Battery voltage optional depend on capacity

2.Get more back up time ,lower system invests

3.Charge current can be adjusted

4.More discharge time and more capacity battery

5.Support 3 phase input or 1 phase input for three phase UPS

6.Super wide input voltage and frequency range for bad power quality

7.Advanced Digital control DSP technology and best power component



Technical Parameters of High Frequency Online UPS HP9116C PLUS 6-10KVA

Model HP9116C 6-10KVA
6KT 6KT-XL 10KT 10KT-XL
Rated Power 6KVA/5.4KW 10KVA/9KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70Hz
Input
Voltage Range 120~275VAC (±3VAC)
THDi <5%
Power Factor ≥0.99
Output
Voltage Regulation 220±1%VAC
Frequency Regulation 50/60 Hz±0.2Hz
Waveform Pure sine wave
Power Factor 0.9
Voltage Distortion Linear load<2% Non-linear load<4%
Overload Capability 105%~125% for 1 min;125%~150% for 30 s; >150% for 0.5 s
Efficiency >94%
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
Battery
DC Voltage 180VDC 192/240VDC 180VDC 192/240VDC
Recharge Time 5hours to 90% of capacity
Recharge Current 1A 4.2A 1A 4.2A
Display
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <55dB
Physics Characteristic
Weight
(KG)
59 14 62 16
Dimensions: Wx D x H )mm 248X500X565 212X500X420 248X500X565 212X500X420


10kVA 9kw High Frequency Prue Sine Wave Inverter Single Phase for Bank Station and Network
