50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS | Price : | 100-1000 |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets For Solar Power Inverters | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union,Paypal, | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SSP3119C 1000-5000VA |
|
Detail Information |
|||
| Product: | On-Grid Solar Inverter | Solar Controller: | 12/24/48 MPPT |
|---|---|---|---|
| Nominal Voltage: | 220/230/240VAC | Waveform: | Pure Sine Wave |
| Parallel Function: | 6 PCS | Priority: | PV/Battery/Grid |
| Display: | LCD | Power Factor: | 0.9 |
| Application: | Home And Office | Capacity: | 1-5Kva |
| High Light: | grid hybrid solar power inverter,hybrid pv inverter |
||
Product Description
On-Grid Solar Inverter With Energy Storage And MPPT Solar Controller
SSP3119C series on/off Grid Hybrid Solar Inverter 1kVA-5kVA 48VDC with 120A MPPT Controller.widely used to supply the reliable long back up time power for theTV, Computer, DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners, cameras and photographic equipment etc
Product brief introduction
1.Single phase output to 30KW using 6 units.
2.Three phase output using either 3 units(15kw) or max 6 units (30 kw)
3.Output power factor :1.0
4.Parallel operation up to 6 units from 3K/4K/5K models.
5.Discharging /Charging Time can be selected
6.For Self-consumption and Feed-back to the Grid
7.Energy Storage Function with Battery Pack
8.High Frequency Pure Sine Wave Output
9.Power Supply Priority for PV ,Battery or Grid
10.Users-Adjustable Charging current and voltage
11.Built-in 80A/120A MPPT Solar Charge Controller
12.Multiple operation modes:Grid-tie,off-grid and grid-tie with backup
SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:
| MODEL | 1K-12 | 2K-24 | 3K-48 | 4K-48 | 5K-48 |
| Max.PV Array Power | 1000W | 2000W | 4000W | 4000W | 6000W |
| Rated Output Power | 1000W | 2000W | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 145VDC | 145VDC | 145VDC | 145VDC | 145VDC |
| MPPT Range @ Operating Voltage | 15~115VDC | 30~115VDC | 60~115VDC | 60~115VDC | 60~115VDC |
| MPPT Tracker Number | 1 | 1 | 1 | 1 | 2 |
| GRID-TIE OPERATION | |||||
| GRID OUTPUT(AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Output Voltage Range | 184-264.5VAC | ||||
| Nominal Output Current | 4.3A | 8.7A | 13A | 17.4A | 21.7A |
| Power Factor | >0.99 | ||||
| Efficiency | |||||
| Maximum Conversion Efficiency (DC/AC) | 90% | ||||
| GRID INPUT | |||||
| Accepatable Input Voltage Range | 90-280VAC or 170-280VAC | ||||
| Frequency Range | 50HZ/60HZ(Auto sensing) | ||||
| Maximum AC Input Current | 30A | 40A | |||
| BATTERY MODE OUTPUT(AC) | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||
| Output Waveform | Pure Sine Wave | ||||
| Efficiency(DC to AC) | 93% | ||||
| BATTERY&CHARGER | |||||
| Nominal DC Voltage | 12VDC | 24VDC | 48VDC | 48VDC | 48VDC |
| Maximum Solar Charge Current | 80A | 80A | 80A | 80A | 120A |
| Maximum AC Charge Current | 60A | ||||
| Maximum Charge Current | 140A | 140A | 140A | 140A | 180A |
| INTERFACE | |||||
| Parallel Function | N/A | N/A | Yes | Yes | Yes |
| Communication | USB or RS232/Dry-Contact | ||||
| ENVIRONMENT | |||||
| Humidity | 0~90%RH (No condensing) | ||||
| Operating Temperature | 0 to 50℃ | ||||

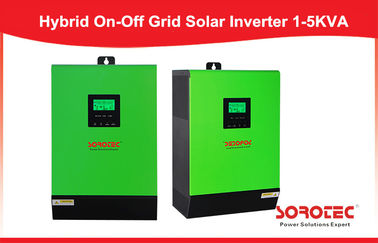

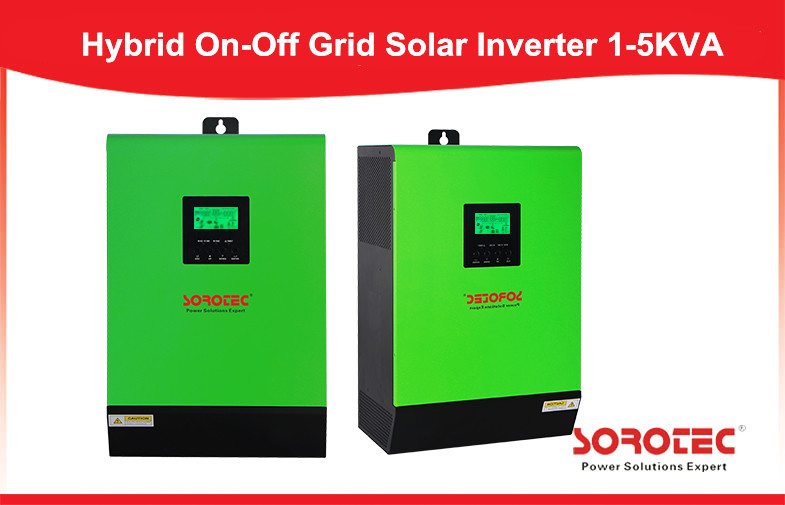

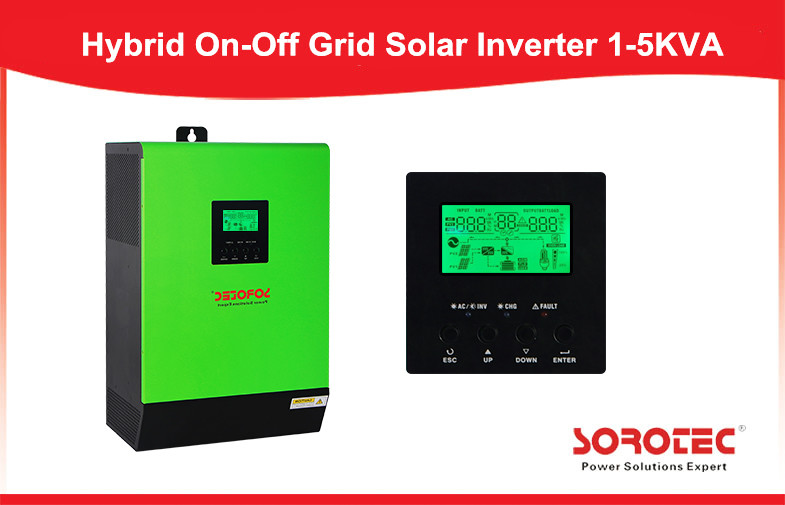

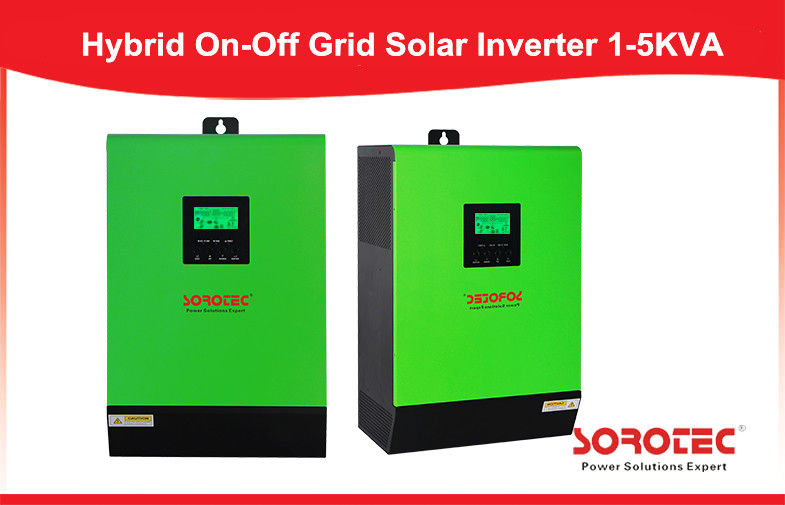

Product Show about SSP3119C Series On-Off Grid Hybrid Solar Power Inverters:
