Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | SOROTEC |
Certification: | CE,ROHS,ISO9000 |
Model Number: | GP9111C 6 - 15KVA |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 5 |
Price: | USD10000 |
Packaging Details: | Standard Exported Cartons and Pallets |
Delivery Time: | Within 15-30days after receiving your 30% TT deposit |
Payment Terms: | L/C, T/T, Western Union,Paypal |
Supply Ability: | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
Detail Information |
|||
Product Name: | Low Frequnency Online UPS | Frequency Range: | 50/60HZ±10% |
---|---|---|---|
Capacity: | 6-20Kva | Power Factor: | 0.8(lagging) |
Nominal Voltage: | 220/230/240VAC&380/400/415VAC | Display: | LED/LCD |
Operating: | Temperature:0-40℃ Relative Humidity :0-90% | Phase: | 1ph/1ph Or 3ph/1ph |
High Light: | uninterruptable power supply,remote control ups |
Product Description

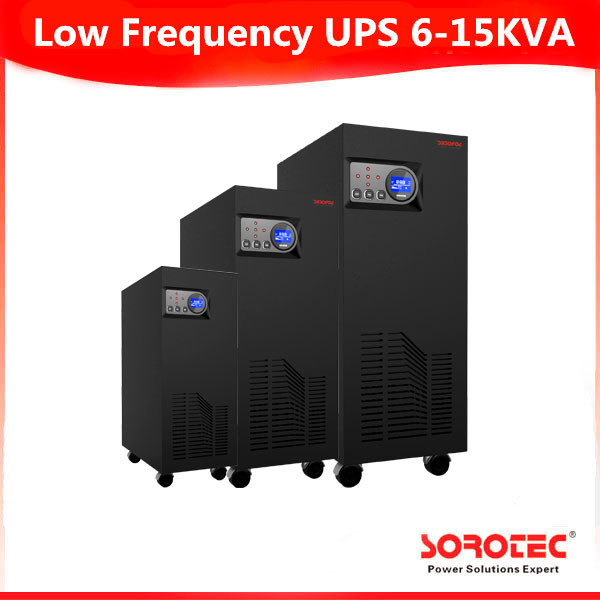

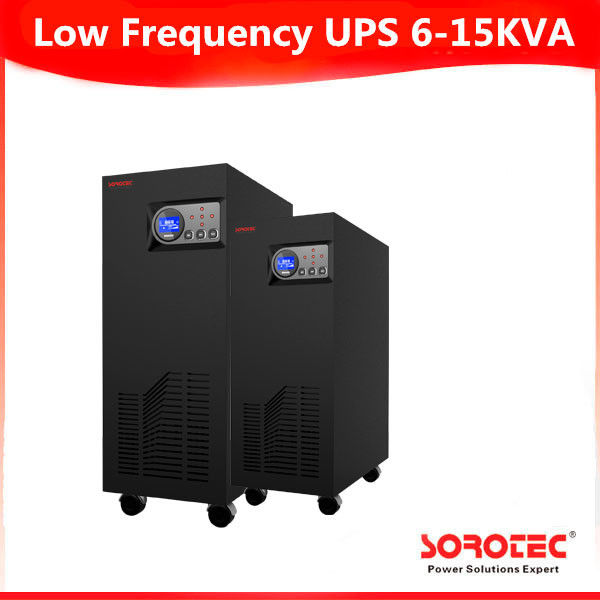

6-15KVA Black Color GP9111C 1 Ph in / 1 Ph out Low Frequency Online UPS
Product Snapshot:
1.Pure-online double conversion technology.
2.Output conversion time is zero .
3.Intelligent battery management, extending the battery life.
4.Machine the internal standard mathes the output isolation transfomer.
5.Suitable for all kinds of loads, and a high overload capacity.
Multifunction design
1.Using intelligent battery management technology to extend the life of battery and reduce the numberof maintaince
2.English /chinese (optional)LCD dispaly panel,to the user to accurately display the work environment and ups status information, user -friendly operation of the UPS.
3.Through RS232 and SNMP interface and intelligent monitor software to communicate with the computure.
4.Suitable for all kinds of loads,and a high overload capacity.
Applications:
IDC data exchange center medium-sized rooms, medium-scale network management systems, billing center, banking / securities clearing centers, industrial process control, traffic control areas......
Technical Specifications of Online UPS GP9111C GP9311C Series:
Model |
GP9111C 6-15KVA |
GP9311C10-40KVA |
|||||||||||||||
6KVA |
8KVA |
10KVA |
15KVA |
10KVA |
15KVA |
20KVA |
30KVA |
40KA |
|||||||||
Capacity |
6KVA/ 4.8KW |
8KVA /6.4KW |
10KVA /8KW |
15KVA /12KW |
10KVA /8KW |
15KVA /12KW |
20KVA /16KW |
30KVA /24KW |
40KA /32KW |
||||||||
Rated voltage |
220V single phase |
380V three phase 4 wires+G |
|||||||||||||||
Rated frequency |
50/60HZ |
||||||||||||||||
AC input |
|||||||||||||||||
Voltage range |
220V±25% single phase |
380V±25% three phase 4 wires + G |
|||||||||||||||
Frequency range |
50/60HZ±5% |
||||||||||||||||
Soft strat |
0-100% 5sec |
||||||||||||||||
Power factor |
>0.92(with input filter) |
||||||||||||||||
Bypass input |
|||||||||||||||||
Voltage range |
220V±25% single phase |
380V±25% three phase 4 wires + G |
|||||||||||||||
Frequency range |
50/60HZ±10% |
||||||||||||||||
Inverter bypass |
(overload)0ms |
||||||||||||||||
Output |
|||||||||||||||||
Voltage accuracy |
220V±1%(steady-state load), 220V±3%(load fluctuations) |
||||||||||||||||
Frequency accuracy |
50/60Hz±0.05Hz(battery power) |
||||||||||||||||
Power factor |
0.8(lagging) |
||||||||||||||||
Distortion |
<3%(linear load), <5%(non linear load) |
||||||||||||||||
Steady-state response time |
<10ms |
||||||||||||||||
Overload capacity |
110%load can run normally;125%10min;150%1min; |
||||||||||||||||
battery |
|||||||||||||||||
Nominal voltage |
192V |
360V |
|||||||||||||||
Float voltage |
216V |
405V |
|||||||||||||||
Cut-off voltage |
168V |
315V |
|||||||||||||||
Charger current |
1A-50A(According to the battery capacity can be set configuration) |
||||||||||||||||
Other |
|||||||||||||||||
Display |
LEDLCD |
||||||||||||||||
Alarm |
Sound and light alarm |
||||||||||||||||
Protection |
UPS over current, short circuit, under voltage, over temperature |
||||||||||||||||
Environment |
|
||||||||||||||||
Noise |
60-65dB |
||||||||||||||||
Operating |
Temperature:0-40℃ Relative humidity :0-90% |
||||||||||||||||
Box color |
Gray (optional) |
||||||||||||||||
Physical |
|||||||||||||||||
Wight |
Net |
122 |
125 |
143 |
175 |
182.5 |
235.5 |
285.5 |
354.8 |
354.8 |
|||||||
Gross |
142 |
147 |
163 |
199 |
225.5 |
268.5 |
325.2 |
389.5 |
389.5 |
||||||||
Dimensions: W×D×Hmm) |
210×600×560 |
305×586×850 |
350×675×920 |
430×792×1060 |
