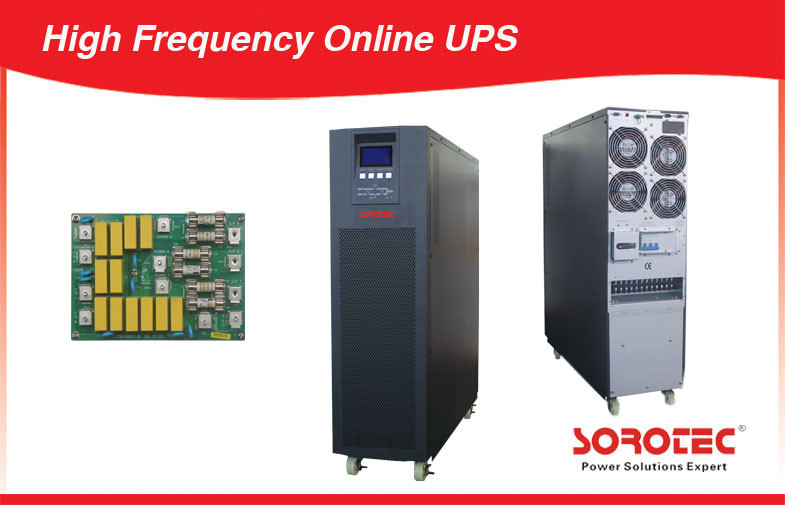

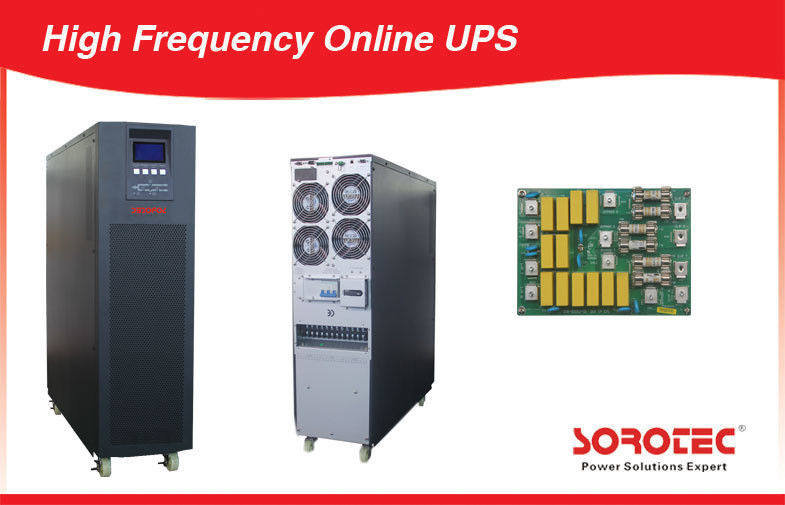

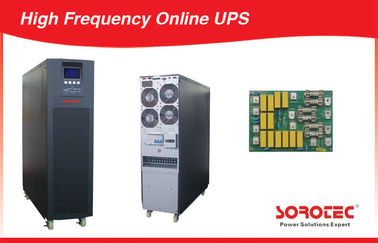

10-30KVA PF 0.9 High Frequency Online UPS , Personal Computers Pure Sine Wave UPS

Minimum Order Quantity : 2PCS Online UPS Price : Negotiable Price
Packaging Details : Standard Exported Cartons and Pallets for High Frequency Online UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, , T/T, Western Union Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9335C Plus 10-30kVA Online UPS

Detail Information

Product: High Frequency Online UPS UPS Capacity: 10-30KVA
Output Power Factor: 0.9 Wave Form: Pure Sine Wave
Frequency Range: 50/60hz Input Voltage Range: 110-300vac
Application: Computers/Telecom/Data Centre Color: Black
Sample: Available Nominal Voltahe: 380/450/415VAC
Output Voltage: 208/220/230/240vac Operation Humidity: <95%
Operation Temperature: 0-40℃
High Light:

pure sine wave ups

,

high frequency ups

Product Description



10-30KVA PF 0.9 High Frequency Online UPS , Personal Computers Pure Sine Wave UPS

HP9335C Plus Series delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.
High Frequency Online UPS HP9335 plus represents the best solution that is both cost effective and environmental friendly,

Product snapshot

product name High frequency online ups
model 10-30KVA
nominal voltage 380/450/415VAC
frequency range 50/60HZ
output power factor 0.9


Key Features:

  • Generator Input Available
  • Accepts dual-mains inputs
  • Adjustable battery numbers
  • ECO mode operation for energy saving
  • Emergency power off function (EPO)
  • Active power factor correction in all phases
  • DSP technology guarantees high performance
  • SNMP+USB+RS-232 multiple communications
  • Maintenance bypass available
  • 50Hz/60Hz frequency converter mode
  • Output power factor 0.9
  • True double-conversion
  • Optional N+X parallel redundancy
  • Optional isolation transformer offers full isolation
  • Wide input voltage range (110-300 VAC)
  • 3-stage extendable charging design for optimized battery performance


Technical Parameters

MODEL HP9335C Plus 10-30KVA
10K 10K-XL 15K 15K-XL 20K 20K-XL 30K 30K-XL
CAPACITY 10KVA / 9KW 15KVA / 13.5KW 20KVA / 18KW 30KVA / 27KW
PHASE 3 Phase with Neutral
INPUT
Voltage Range Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
Low Line Comeback Low Line Loss Voltage + 10V
High Line Loss 300 VAC(Ph-N) ± 3 %
High Line Comeback High Line Loss Voltage - 10V
Phase Three phase with ground
Power Factor ≥ 0.99 at 100% Load
OUTPUT
Output voltage 208/220/230/240VAC(Ph-N)
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload AC mode 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
Battery mode 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
Current Crest Ratio 3:1 max
Harmonic Distortion ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time Line←→Battery 0 ms
Inverte←→Bypass 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
Line←→ECO <10 ms
EFFICIENCY
AC mode > 89% > 89% > 89% > 90%
Battery Mode > 86% > 88% > 87% > 89%
BATTERY
Standard Model Type

12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah
Numbers 20(18-20 adjustable) 2 x 20(18-20 adjustable) 2 x 20(18-20 adjustable) 3 x 20(18-20 adjustable)
Recharge Time 9 hours recover to 90% capacity
Charging Current 1.0 A ± 10% (max.) 2.0 A ± 10% (max.) 2.0 A ± 10% (max.) 4.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
Long-run Model Type Depending on applications
Numbers 18-20
Charging Current 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 12.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
PHYSICAL
Standard Model Dimension,DxWxH(mm) 832 X250X894 832 X250X1275
Long-run Model Dimension,DxWxH(mm) 609 X250X768 832 X250X828
ENVIRONMENT
Operation Temperature 0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity <95 % and non-condensing
Operation Altitude <1000m
Acoustic Noise Level Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
USB Power management from SNMP manager and web browser
