50 / 60HZ 3Ph / in 3 Ph / out Low Frequency Online UPS Used for Date Center

China 50 / 60HZ 3Ph / in 3 Ph / out Low Frequency Online UPS Used for Date Center supplier
50 / 60HZ 3Ph / in 3 Ph / out Low Frequency Online UPS Used for Date Center supplier 50 / 60HZ 3Ph / in 3 Ph / out Low Frequency Online UPS Used for Date Center supplier

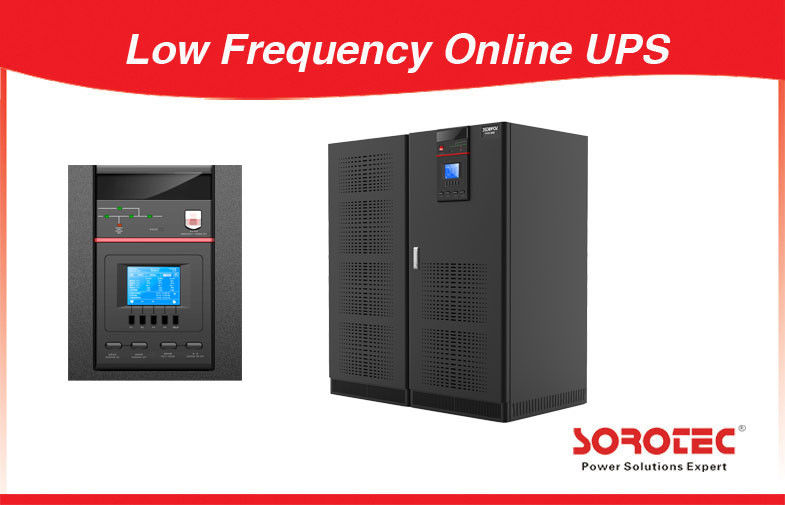

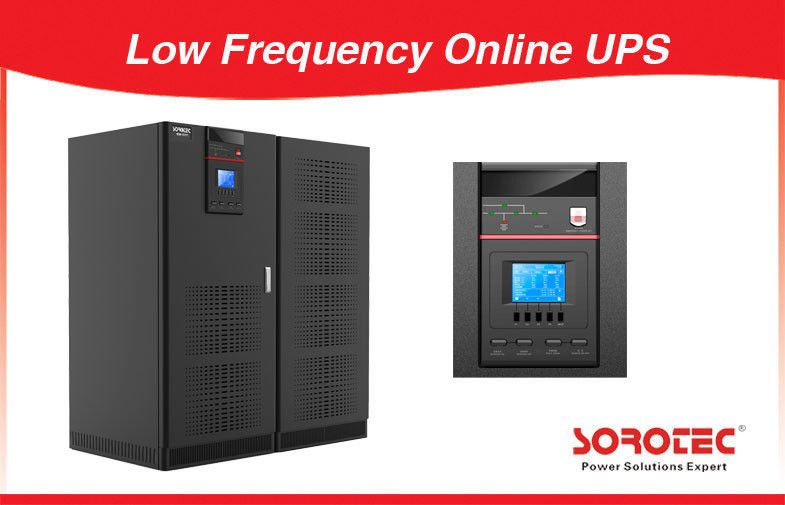

Large Image :  50 / 60HZ 3Ph / in 3 Ph / out Low Frequency Online UPS Used for Date Center

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: GP9335C 10-800KVA

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: 10000USD
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000PCS Per Month
Contact Now
Detailed Product Description
Product Name: Low Frequency Online Ups Phase: Three Ph/in Three Ph/out
Output Power Factor: 0.9 Model: 10-800KVA
Nominal Frequency: 50/60HZ DC Voltage: 360/384/432/480VAC
Protection Level: IP20 Weight: 980 -7390KG
Dimension(w*d*h): 900*855*1900MM System Efficiency: 94% (Full Loads)
Application: Data Center,industry,servers Show: LCD Display
Colour: Black


50 / 60HZ 3Ph / in 3 Ph / out Low Frequency Online UPS Used for Date Center


Excellent Electrical Performance :

Online double transform structure ,double DSP control technology .

GP9335C series UPS using real online double transform structure,this architecture is currently the best to solve the power structure,the framework can almost completely solve all the power problems.


Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.


Efficient *energy-saving-environment-protection-innovation:

GP9335C series UPS for china's top product,nominal capacity from 120kva to 800kva ,had application in the key equipment for the power system protection,could provide high quality power ,with high level of availability and scalability,and invest iminimize yptal cost of ownership(TCO).


Product  Features:

1.Advanced distributed active parallel technology can realize parallel operation of 6PCS UPS units without the need of centralized bypass cabinet.


2.6-inch extra large LCD that can display 12 language (Chinese ,English,Russian,Spanish,French and so on).


3.Extra wide input voltage and frequency range make it adapt to severe power grid environment


4.Use advanced 6th generation DSP and full digital control technologies to realize higher system stability.


5.Output power factor is 0.9, carrying capacity than conventional UPS with 10% above, as users reduce investment cost.


6.Intelligent battery management maintains battery automatically to prolong the battery life.

7.Standard input/output filter improves the system EMC performance.


8.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions.

9.Layered independently-sealed ventilation channel and re-dundant fan, circuit boards with protective paints and a dust filter embedded make it highly efficient to dissipate heat and protect the product effectively under severe environment.


GP9335C Series Technical Specification:

Model GP9335C
Rectifier Type 6p 12p 6p 12p 6p 12p 6p 12p 6p 12p
Rated Nominal 120KVA/108KW 160KVA/144KVA





Rated input voltage 380/400/415VAC 3-phase 4-wire
Rated frequency 50/60HZ
Input parameters
Input voltage range ±25%
Input frequency range 45Hz~65Hz
Input soft start function 0-100% 5-300settable
Input power factor >0.98(If harmonic filter is added)
Input harmonic current (THDi) ‹4.5%(If harmonic filter is added)
Bypass voltage range -20%~+15%
Bypass frequency range 50/60HZ±10%
Output parameters
Inverter output voltage 380/400/415VAC 3-phase 4-wire
Voltage stability ±1%(Steady status),±3%(Transient status)
Frequency 50/60Hz
Mains power synchronization window ±5%
Actually measured frequency accuracy (internal clock) 50/60Hz±0.01Hz
Output power factor 0.9(Output 90kW per 100kVA)
Transient response time <5ms
Inverter overload capability At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s
  3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds
Short circuit current from inverter
Maximum Bypass capability 1000% for 100ms
  With 100% balanced load <1°
Phase shift
characteristic With 100% imbalance load <1°
  100% linear load <1%
Total harmonic
Distortion(THDv) 100% non-linear load <3%
System efficiency (full load) Up to 94% (inverter efficiency is up to 98%)
Rectifier output parameters
Charger output voltage stability 1%
DC ripple voltage ≤1%
Operating environment
Operating temperature range 0~40°C
Storage temperature -25~70°C(Without battery)
Relative humidity 0~95% No condensation
Noise (1m) 58-68dB
Protection level IP20
Standard Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design andTest IEC62040-3
