Wall Mounted Integrated Sine Wave Power Inverter Solar Powered

China Wall Mounted Integrated Sine Wave Power Inverter Solar Powered supplier
Wall Mounted Integrated Sine Wave Power Inverter Solar Powered supplier Wall Mounted Integrated Sine Wave Power Inverter Solar Powered supplier

Large Image :  Wall Mounted Integrated Sine Wave Power Inverter Solar Powered

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: SSP3118C1 1 - 5KVA

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Price: USD1000PIECE
Packaging Details: Standard Exported Cartons and Pallets.
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Nominal Voltage: 230VAC Selectable Volatage Range: 170-280VAC(For Personal Computers)
Frequency Range: 50 Hz/60 Hz Transfer Time: 20MS
Waveform: Pure Sine Wave Output Net Weight (kgs): 6.8~11KG
Service: OEM/ODM Produce Built-in: PWM Solar Controller
Capacity: 5kVA/4000W Size(W*D*H): 100 X 272 X 355mm
Rated Power: 1-5kva Output Power Factor: 0.8
Controller: PWM Or MPPT Controller Color: Silver
Efficiency: 90%-93% Product Model: SSP3118C1
Battery Voltage: 12/24/48VDC

Wall Mounted Integrated Solar Power Inverter Built-in PWM Solar Controller



Quick Detailes:
Product Model: SSP3118C1
Capacity:1-5Kva
Output Wave Form:Pure Sine Wave
Input Voltage:230VAC
Built-in :PWM Solar Charge Controller
Design: High Frequency Half-Bridge
Parallel Function :Max 6pcs for 4/5kva

Solar Power Inverter SSP3118C1 Product Description:

1. Cold start function

1. Overload and short circuit protection

2. Auto restart while AC is recovering

3. Remote panel available

4. Cold start function

5. Pure sine wave inverter

6. Compatible to mains voltage or generator power

7. Selectable charging current based on applications

8. Configurable AC/Solar input priority via LCD setting

9. Built-in PWM solar charge controller

10. Smart battery charger design for optimized battery performance

11. Parallel operation with up to 6 units only available for 4KVA/5KVA

12. Selectable input voltage range for home appliances and personal computers

Solar Power Inverter SSP3118C1 Application:

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip



Solar Power Inverter SSP3118C1 Technical Specification:

MODEL C1 1K-1250

C1 2K-2450

C1 3K-2450 C1 4K-4850 C1 5K-4850
Rated Power 1000VA / 800W 2000VA/1600W 3000VA / 2400W 4000VA / 3200W 5000VA / 4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15.5 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 50VDC 60VDC 105VDC
Standby Power Consumption 1 W 2 W 2W
Maxmum Solar Charge Current 50A 50A 50 A
Maximum AC Charge Current 20 A 30 A 60 A
Maximum Charge Current 50 A 50 A 110 A
PHYSICAL
Dimension, D x W x H (mm) 100*240*318 105*272*355 120 x 295 x 468
Net Weight (kgs) 5 6.4 6.9 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C

Product Show

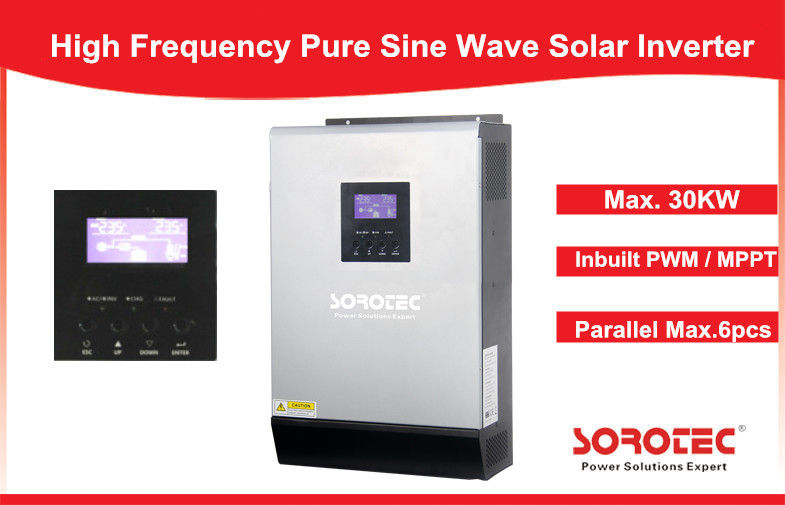

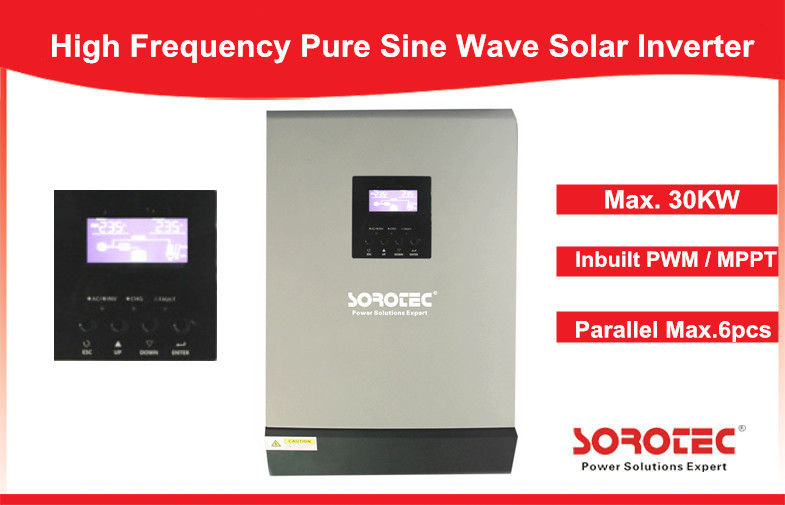

Wall Mounted Integrated Sine Wave Power Inverter Solar Powered



APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip







COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.



2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.





FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
