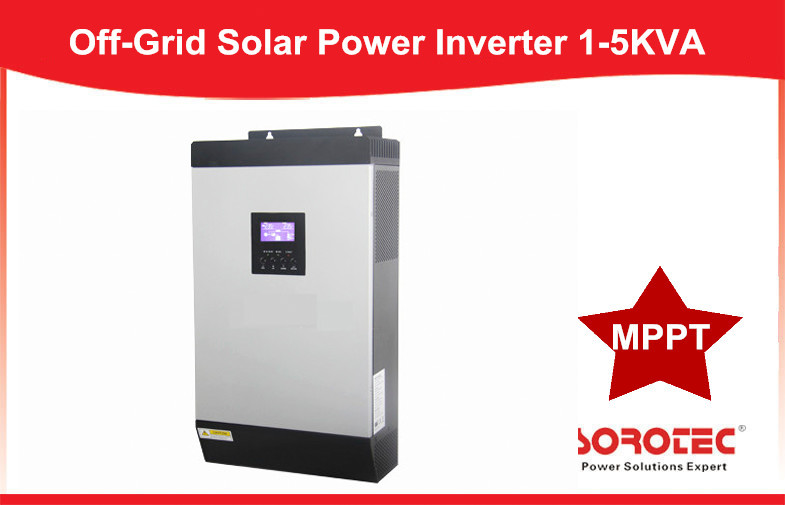

Multi Function 230VAC 5KVA / 4000W Solar Power Inverters / Off Grid Inverter

China Multi Function 230VAC 5KVA / 4000W Solar Power Inverters / Off Grid Inverter supplier
Multi Function 230VAC 5KVA / 4000W Solar Power Inverters / Off Grid Inverter supplier Multi Function 230VAC 5KVA / 4000W Solar Power Inverters / Off Grid Inverter supplier

Large Image :  Multi Function 230VAC 5KVA / 4000W Solar Power Inverters / Off Grid Inverter

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: SSP3118C4 2- 5KVA

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Product Model: SSP3118C4 Transfer Time: 10ms-20ms
Waveform: Pure Sine Wave Output Voltage: 230VAC±5%
Output Efficiency: 93% Battery Voltage: 24/48VDC
Capacity: 1-5KVA Size(W*D*H): 100 X 272 X 355mm
Color: Orange,Green Weight(Kg): N.W: 6.8kg~11kg
Nominal Frequency: 50/60HZ Output Power Factor: 0.8
Built-in Controller: 60A MPPT Solar Controller

230VAC 5KVA/4000W Off-Grid Solar Power Inverters Built-in MPPT Solar Controller

Parallel configuration (only SSP3118C 4KVA/5KVA)

Our products can be put in parallel configuration,up to 6 pieces parallel,if the necessary power is too high for a single unit.

SSP3118C4 Solar Inverter Product Description

SSP3118C4 series is a multi-function off-grid type solar power inverter for self-consumption,which capacity from 2kva to 5kva,built-in with MPPT solar charge controller, 4KVA/5KVA with max up to 6 units solar inverters parallel function and total capacity 24KW. It power sourcing from Utility,battery ,PV.And supports charging priorities for Utility, PV, Utility & PV.Remote control with RS232/USB,LCD display information in real-times.

 it support Various Charging Priority Modes and Output Priorities . High Frequency with half-bridge design,Pure sine wave can provide reliable long backup time ac power supply for home and office equipment such as:Fridge,Air-conditional,TV,Computer .etc

SSP3118C4 Solar Inverter Key Features:

1.Hybrid Off-Grid Solar Power Inverters

2.Built-in MPPT solar controller

3.Support mains voltage or generator power

4.Auto restart while AC is recovering

5.6 units can Parallel operation only for 4Kva/5Kva

6.Cold start function,Remote panel available

7.Selectable charging current based on applications

8.Configurable AC/Solar input priority via LCD settin

9.Smart battery charger design for optimized battery performance

10.Selectable input voltage range for home appliances and personal computers

SSP3118C4 Solar Power Inveter Applications:

1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip



SSP3118C4 Solar Power Inverter Technical Specification:

MODEL C4 2K-2460 C4 3K-2460 C4 4K-4860 C4 4K-4880 C4 5K-4860 C4 5K-4880
Rated Power 2KVA/1600W 3KVA/2400W 4KVA/3200W 4KVA/3200W 5KVA/4000W 5KVA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48VDC
Floating Charge Voltage 27 VDC 54VDC
Overcharge Protection 31VDC 62VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 1500W 3000W 3000W 4000W
MPPT Range @ Operating Voltage 30 ~ 115VDC 60 ~ 115VDC
Maximum PV Array Open Circuit Voltage 145VDC 145VDC
Maximum Solar Charge Current 60A 60A 60A 80A
Maximum AC Charge Current 20/30A 30A 60A 60A 60A
Maximum Charge Current 60A 120A 120A 140A
Maximum Efficiency 98%
Standby Power Consumption 2W
PHYSICAL
Dimension, D x W x H (mm) 295*140*440 295*140*540
Net Weight (kgs) 7.4 11.5
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C

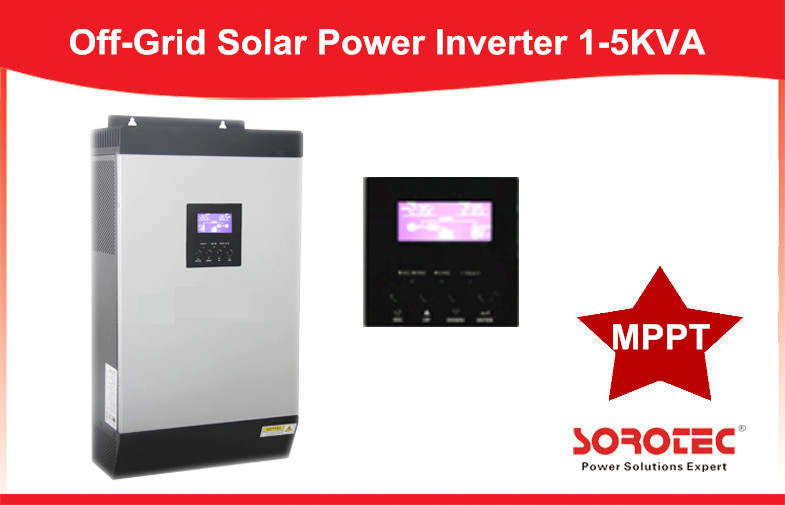

                                               Product Show



Multi Function 230VAC 5KVA / 4000W Solar Power Inverters / Off Grid Inverter

APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip





COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.





FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
