Digital control DSP technology high frequency online UPS , Sine Wave UPS for Home Use

China Digital control DSP technology high frequency online UPS , Sine Wave UPS for Home Use supplier
Digital control DSP technology high frequency online UPS , Sine Wave UPS for Home Use supplier Digital control DSP technology high frequency online UPS , Sine Wave UPS for Home Use supplier

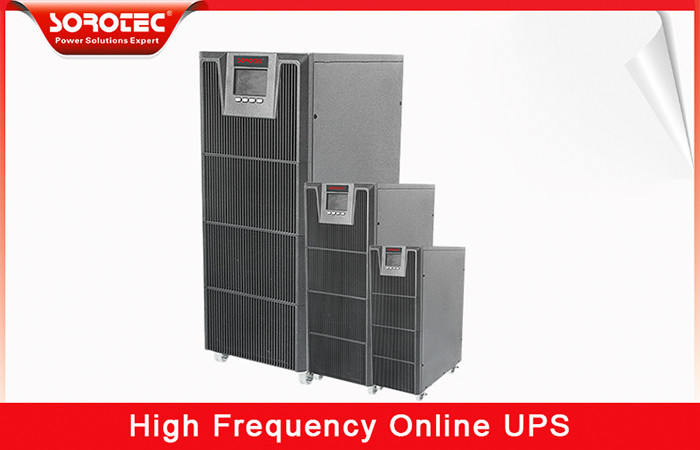

Large Image :  Digital control DSP technology high frequency online UPS , Sine Wave UPS for Home Use

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: HP9116C PLUS

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month
Contact Now
Detailed Product Description
Product Name: HP9116C PLUS Current Crest Ratio: 3∶1

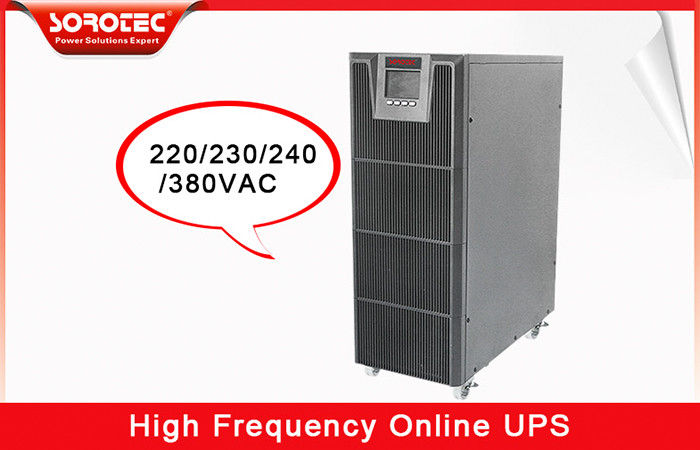

Nominal Voltage: 220/230/240/380VAC Power Factor: 0.9
Recharge Time: 7 Hours To 90% Of Capacity Voltage Distortion: Linear Load<2% Non-linear Load<4%
Overload Capability: 105%~125% For 1 Min;125%~150% For 30 S; >150% For 0.5 S Interface: Smart RS232, SNMP(Optional),USB (Optional)
Display: LCD Waveform: Pure Sine Wave



Digital control DSP technology high frequency online UPS , Sine Wave Ups For Home Use



Flexible strategy


On line mode provides higher system availability
High efficiency mode provides more economic operation
Frequency conversion provides more stable output



Advanced parallel technology


Stable parallel control technology make sure current sharing to 1%
Select trip technology can avoid and isolation system fault then improved system availability
Flexible extension capacity and redundance management that can satisfy all kinds of requirements
Support maximum 3 units for parallel working





HP9116C Plus 6-10KVA it is a Online UPS with Large LCD display, 1Ph in/1Ph out UPS High Reliability, Wide Input Voltage, output Power Factor 0.9, Zero Transfer Time,RS232/SNMP/USB Optional. High flexible and extendable can satisfy different requirement and lower system invests. Multifunction friendly design management can satisfy all kinds of requirements, more than others, Stable parallel control technology and Input topology design make the system safe and reliable, Support maximum 3units for parallel working.ECO mode efficiency up to 98%.



It can provide reliable power supply for data centre, telecom, industry, medical precision equipment. Often used for personal computers, network, industry, medical, telecom, and security.





HP9116C PLUS Product Description :

 Model  HP9116C/HP9316 Plus 1-20k series
 Type  High Frequency Online UPS
 Phase  1 Ph in/1Ph out & 3Ph in/3 Ph out
 Capacity  1-20KVA
 Output Power Factor  0.9
 Nominal Voltage  220/230/240/380VDC
 Nominal Frequency  40-70HZ
 Parallel Working  Maximum 3 units
 Battery Voltage  24VDC/36VDC/48VDC/72VDC/96VDC
 Transfer Time  0ms



HP9116C PLUS Muilti-function and Friendly Design

Higher Power Factor /Higher Efficiency /Support Three Phase Input

Output Power Factor Up To 0.9

Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.

Input power factors up to 0.99

Three phase input model support three phase PFC , input THDI<5%

Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

Efficiency up to 93.5%when take the 30%load

ECO mode efficiency up to 98%.

Product application areas
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on.

Advanced Parallel Technology
1. Stable parallel control technology make sure current sharing to 1%.

2. Select trip technology can avoid and isolation system fault then improved system availability.

3. Flexible extension capacity and redundance management that can satisfy all kinds of 4. requirements.

5. Support maximum 3 units for parallel working Flexible strategy.

Flexible Strategy
6. On line mode provides higher system availability.

7. High efficiency mode provides more economic operation.

8. Frequency conversion provides more stable output.



HP9116C PLUS Technical Specification:

Model HP9116C PLUS 1-3KVA
1KT 1KT-XL 2KT 2KT-XL 3KT 3KT-XL
Rated Power 1KVA/0.9KW 2KVA/1.8KW 3KVA/2.7KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70HZ
Input
Voltage Range 115~300VAC
THDi <10%
Power Factor >0.98
Output
Voltage Regulation 220±2%VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.9
Voltage Distortion Linear load<4% Non-linear load<7%
Overload Capability 110%~150% for 47-25 sec;150% ~200% for 25-300ms;>200% for 200m
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Efficiency(on line mode) >89% >90% >90%
Battery
DC Voltage 24VDC 36VDC 48VDC 72VDC 72VDC 96VDC
Recharge Time 7 hours to 90% of capacity
Recharge Current 1A 6A 1A 6A 1A 6A
Display
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP card (Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <45dB <50dB
Physics Characteristic
Dimensions: Wx D x H )mm 145X345X229 192X393X328



Digital control DSP technology high frequency online UPS , Sine Wave UPS for Home Use







                          Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.


Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.



The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



                                        FAQ



1.WHY CHOOSE US ?



QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

.......................................................................................................................................................................


1.Output wave when take the full load

This product provide pure sine wave output when take the resistance load.

...................................................................................................................................................

2.About THDI

Because this series product is not rectifier function, so can’t make the THDI when use it.

...................................................................................................................................................

3. About service

We are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most

perfect after- sales service.

...................................................................................................................................................

4.About SORO technology

We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.


.......................................................................................................................................................................

5. How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................
