10KVA~800KVA Three Phase Modular UPS High Frequency Online UPS with Monitoring System

Minimum Order Quantity : 2PCS Price : Negotiable
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: Shenzhen,China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: MPS9335C 10-800KVA

Detail Information

Type: Modular UPS High Frequency UPS: Yes
Phase: Three Phase Output Voltage: 380/400/415VAC
Frequency: 50/60HZ Protection: Unbalanced Loads
Output Power Factor: 1.0 Application: Data Center
Input THDi: <3% DSP Full Digital Control: Yes
Display: LCD Display 13 Languages Parallel Operation: 4 Unites
Overload Capacity: 110% 1h,125% 10mins,150% 1mins,>150% 200ms Communication Ports: RS232,RS485,Dry Contact,SNMP Card,EPO,Generator Port
Operation Temperature: 0-40°C OEM/LOGO: Yes
Wave Form: Sine Wave Color: Black
High Light:

ups power


remote control ups

Product Description

10KVA~800KVA High Frequency Online Three Phase Modular UPS with Monitoring System
Key Features:

1. Superior energy saving and environment-friendly:
Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%


2. Superior capability of powering load:
Output PF is 0.9, no need of power deration with load of leading or lagging PF


3. Easy-to-install:
Top or bottom cabling, no need of input cabling cabinet.


4. Easy-to-maintain:
Full front access, UPS, failed part can be replaced shortly


5. Easy-to-modify:
The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover,

the battery cell can be replace in time when it fails without interrupting the normal operation of UPS.


6. 6-inch extra large LCD

can display 12 language(Chinese,English,Russian,Spanish,French and so on )


10KVA~800KVA Three Phase Modular UPS High Frequency Online UPS with Monitoring System 0



ApplicationIDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax,
hospital system, industrial automation, precision equipment, etc.

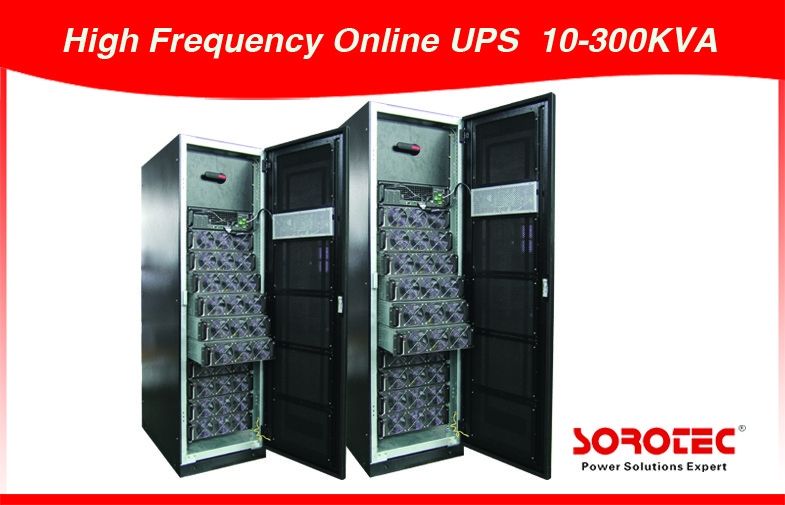

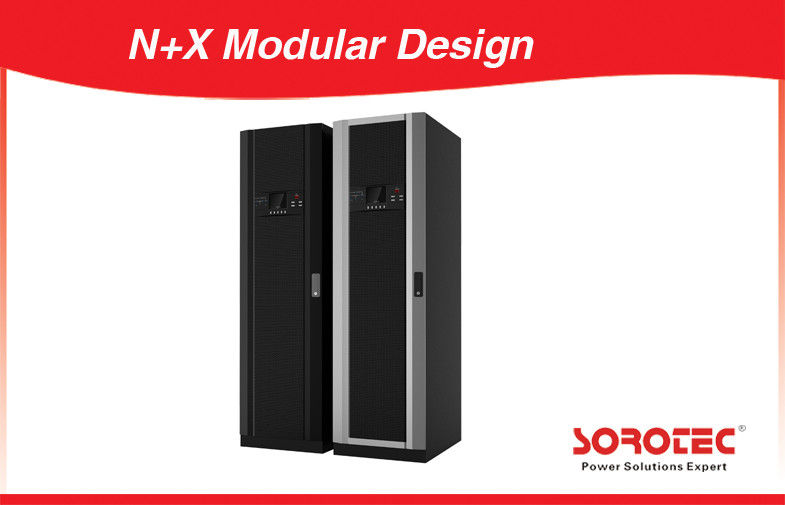

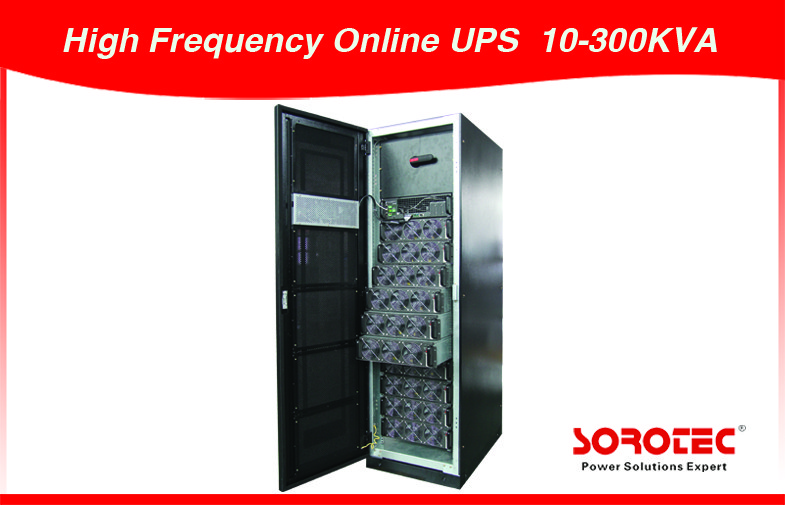

Modular UPS configuration system:

MPS9335C 150K-XL A series Configuration system
(MAX 5pcs power module)
(Dimension(mm) : 600×800×1400)

MPS9335C 300K-XL B series Configuration system
(MAX 10pcs power module
(Dimension(mm) : 600×800×2100)

MPS9335C 150K C series Configuration system
The battery module and power module can be
automatically configured
(Dimension(mm) : 600×1100×2100)

hot swapping battery cabinet


Technical Specifications of Modular UPS, MPS9335 10-300KVA

ModelMPS9335 10-300KVA
Main input
Input voltage380V/400V/415AC(Optional South America 208v)
Input Frequency Range50/60Hz
Power FactorFull load>0.99 ,Half load >0. 98
THDiTHDi <3%
Input power soft-start fantion5-30s settable
Input Voltage Ranges228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range40-70Hz
Battery Voltage±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy± 1%
Bypass Input voltage380/400/415VAC 3-phase 4-wire
Voltage RangesDefault value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Inverter Output Voltage380/400/415VAC 3-phase 4-wire
Voltage Accuracy± 0.5%(balanced load), ± 1% (unbalanced load)
THDiTHD<1%(linear load), THD<3%(nonlinear load)
Power Factor0.9
Three Phase Angle accuracy120°c ± 0.5°c
Current Crest Ratio3:1
Overload Capacity110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time0ms,15ms(ECO Mode)
Frequency50Hz/60Hz (Settable)
Mains synchronization range±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection LevelIP41/IP42
Communication PortsRS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency> 96% at load above 50%, >95% at load above 25%
Operation Temperature0-40 °c
Storage Temperature-25 °c -70 °c (without battery)
Noise(dB)55-62dB,Adjusted with load
 5 module cabinetmodule :RMS050/10, RMS100/20, RMS150/30150KG
 10 module cabinetmodule :RMS100/10, RMS200/20, RMS300/30150KG
 module :PM1010KVA power module :20KG
Weightmodule :PM2020KVA power module :21KG
 module :PM3030KVA power module :32KG
Dimendion(W XD XH)mm5 module cabinet600X1400X850
10 module cabinet600X2070X850
power module440X132X660(10KVA/20KVA/30KVA)

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943

Note: Product specifications are subject to change without further notice.
