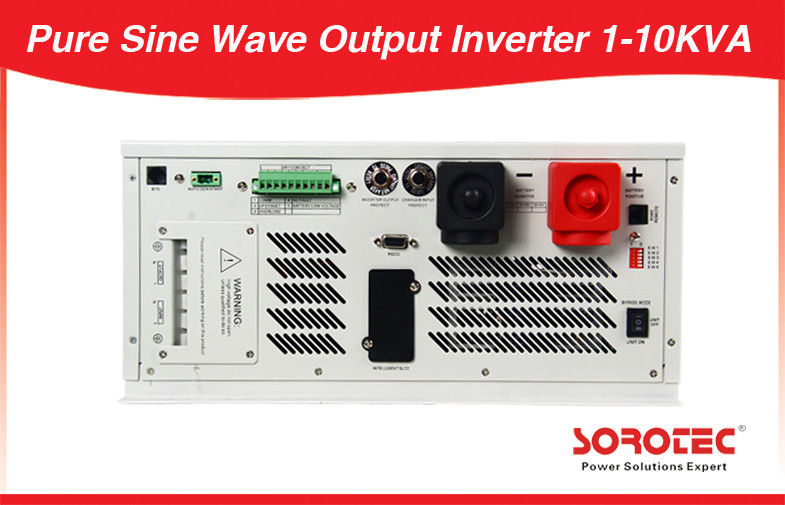

1-10KW China Supply Pure Sine Wave Inverter 12V/24V/48V Solar Power Inverter

Minimum Order Quantity : USD10000 Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: Guangdong (Mainland) , China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: IG3115CS 1 - 10KW

Detail Information

Output Power:: 1-10kw Type: DC/AC Inverters
Output Frequency: 50HZ/60HZ Color: Black
Size(W*D*H): 598*218*179mm Weight(kg): G.W: 16~40KG
Input Wave Form: Sine Wave (utility Or Generator) Efficiency On Line Transfer Mode: ≥95%+
High Light:

solar energy inverter

,

home power inverter

Product Description



1-10KW China Supply Pure Sine Wave Inverter 12V/24V/48V Solar Power Inverter :





Key Features:

1.Pure sine wave output

2.The charging current is big up to 70 Amp

3.Output power factor:s 0.9-1

4.Well accept generator's output

5.Full automatical and silent operation

6.Automatically transfer between battery and line modes

7.Microprocessor control guarantees high reliability

8.Remote control function

9.Four-steps intelligent charging control to recharging time

10. Bypass and bypass voltage regulation function

11. Could be setting frequency by LCD display with color screen

12. Battery type and charge current can be select







Full protection:

Protection for low battery voltage ,over load ,output short circuit and over- temperature restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.







Applications:

Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.







Technical Parameters:

MODEL IG3115CS       1-10KVA
1000W 1500W 2000W 3000W 4000W 5000W 6000W 8000W 1000W
Input wave form  Sine wave (utility or generator)
Normal voltage 120VAC(option) 230VAC 220/230/240VAC
Low voltage re trip  90V±4% & 184V/154V±4% 154V
Low voltage re engage  100V±4% & 194V/164V±4% 164V
High voltage re trip 140V±4% & 253V±4% 273V
High voltage re engage 135V±4% & 243V±4% 263V
Normal input frequency  50Hz/ 60Hz (auto detection)
Low freq trip  47Hz for 50Hz,57Hz for 60Hz 40Hz
 High freq trip  55Hz for 50Hz,65Hz for 60Hz 80Hz
 Output Wave form  (Bypass mode)same as input
 Over-Load Protection Circuit breaker  Yes
Short circuit Protection  Circuit breaker Yes
 Efficiency on line transfer mode 95%+
 Line transfer time 10ms Typical
 Bypass without battery connected Yes
 Max bypass current 30 amp or amp
 Bypass over load current 30 amp or amp:Alarm
Inverter specification/output
 Output wave form Pure sine wave
 Output continuos power watts 1000 1500 2000 3000 4000 5000 6000 8000W 10000W
 Output continuos power VA 1000 1500 2000 3000 4000 5000 6000 8000W 10000W
 Power factor 0.9-1.0
 Nominal Output Voltage rms  120VAC(option) 230VAC 230VAC
 Output Voltage regulation +/- 10%rms
 Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
 Safety Certification >88%
 Short circuit protection Yes,fault after 1 secs
 Inverter specification/input
 Nominal input voltage 12V/24V/48V
 Minimum start voltage 10V/20V/40V
Low battery alarm 10.5V/21V/42V
Low battery trip 10V/20V/40V
High voltage alarm 16V/32V/64V
 Power saver Below 25 watts when enabled
Power saver Same switched on/off on remote
Charger mode spe cification
Output voltage Dependent on battery type
Charge current 10-85A MAX 75A MAX 85A MAX
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection 15.7v for 12v(*2 for 24v;*4 for 48v)




APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip







COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.







WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.






FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
