1KVA to 5KVA Solar Power Inverters , solar grid inverter with Energy Storage

Minimum Order Quantity : 2PCS Price : 200-1000
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information

Product Name: On/off Grid Hybrid Solar Inverter Type: DC/AC Inverter
Output Power: 1000va-5000va Power Factor: 0.9
Waveform: Pure Sine Wave DC Voltage: 12V/24V/48V
Input Voltage: 90-280vac Or 170-280vac Output Voltage: 220/230/240vac
Frequency: 50/60hz (auto-sensing) Application: Home And Office
Controller: 80A/120A MPPT Parallel Function: 3K/4K/5K
High Light:

mppt solar inverter


hybrid pv inverter

Product Description


1KVA to 5KVA Solar Power Inverters , solar grid inverter with Energy Storage


Model SSP3119C
Color White or Green
Capacity 1000-5000VA
Output Power Factor 0.9
Parallel Function 3KVA/4KVA/5KVA
Controller Max.120Amp MPPT Solar Charge Controller



Key Features:


■Pure sine wave output

■Self-consumption and Feed-in to the grid

■Programmable supply priority for PV, Battery or Grid

■User-adjustable charging current and voltage

■Monitoring software for real-time status display and control

■Parallel operation up to 6 units only for 3K/4K/5K models

■Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup



Protection Function:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.



Provide long time backup ac power supply for the household appliances ,office appliances and solar power system.etc



SSP3119C Wall Mounted Integrated Solar Power Inverter technical specifications:


MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 90%
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃




Product Picture Show:

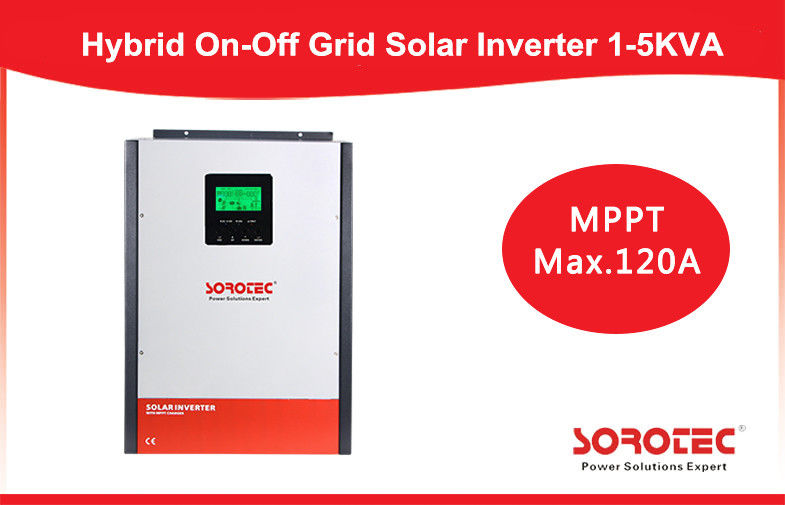

1KVA to 5KVA Solar Power Inverters , solar grid inverter with Energy Storage 0

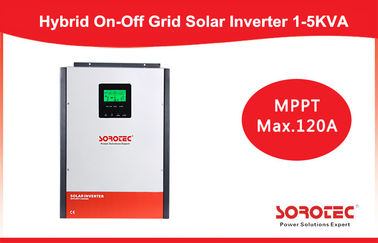

1KVA to 5KVA Solar Power Inverters , solar grid inverter with Energy Storage 1
