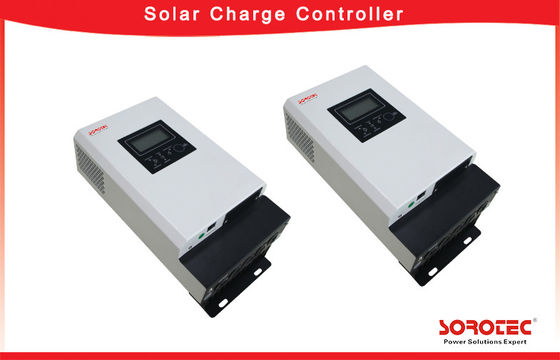

24V 100A MPPT Solar Controller , Solar Battery Charger Controller

Minimum Order Quantity : 5PCS Packaging Details : Carton, export type packing or according to your requirement
Delivery Time : Within 15-30days after receiving your 30% TT deposit Supply Ability : 3000PCS per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: MPPT Solar Charge Controller

Detail Information

Maximum PV Array Open Circuit Voltage: 150VDC Maximum Efficiency: 99.5%
Charging Method: Three Stagrs: Bulk, Absorption And Floating Overload Protection: >110% : Audible Alarm
Maximum Charge Current: 100A Maximum PV Array Power: 800W/1600W/3200W
Nominal Battery Voltage: 12VDC/24VDC/48VDC
Highlight:

morningstar solar regulator

,

Solar Charger Controller

Product Description



24V 60A MPPT Solar Controller , Solar Battery Charger Controller



Key Features:

  • Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
  • Compatible for PV systems in 12V.24V or 48V
  • Three-stage charging optimizes battery performance
  • Maximun charging current up to 1000A
  • Maximun efficiency up to 99.5%
  • Battery temperature sensor(BTS)automatically provides temperature compensation
  • Support wide range of lead-acid batteries including wet,AGM,and gel batteries
  • Multifunction LCD displis detailed information



Product Descriptions of MPPT Solar Charge Controller:

Solar Charge Controller 20A 30A 40A 50A 60A 80A 100A
Controller Properties MPPT (Maximum Power Point Tracking)
System Voltage Auto-recognition
Heat-dissipation Self-cooling
Input
MPPT Range @Operating Voltage 12V 15-115VDC
24V 30-115VDC
48V 60-115VDC
MAX. PV Input Voltage 150VDC
PV Rated Power 12V 260W 390W 520W 650W 800W 1040W 1300W
24V 520W 780W 1040W 1300W 1600W 2080W 2600W
48V 1040W 1560W 2080W 2600W 3200W 4160W 5200W
Output
Nominal Battery Type AGM , Flooded & Customized
MAX. Efficiency 98% 99.50%
Charge Method 3 stages: Bulk , Absorption , Float 3 stages: CC , CV , CF
Protection
Overload >110% ,Audible Alarm
Overcharge Yes
Polarity Reversal Protection @ Solar Cell & Battery Yes
Display & Communication
Display High definition LCD segment backlight display
Communication RS485
Physical
Size(mm) 240*168*66 315*165*128 406*314*128
Net Weight (KG) 2.4 4.5 7.1
Environment
Humidity 0-90% RH( No condensing )
Operation Temperature 0℃ - +55℃
Storage Temperature -40℃ - +75℃
IP (Ingress Protection) IP21 IP31 IP43



SOROTEC All the Inverter Series :



modified sine wave inverter with charge IG3110.jpg IG3112E.jpg Pure sine wave inverter with ISO transformer IG3115C.jpg
Modified Sine Wave Inverter with charge Pure Sine Wave Inverter for Solar System Sine Wave Inverter with ISO transformer
high frequency pure sine wave inverter IG3117C.jpg MPPT solar charge.jpg off grid solar inverter with MPPT controller SSP3117C.jpg
High Frequency Inverter with charger and AC power SCC mppt solar charge controller REVO Series Hybrid solar inverter






APPLICATION OF OUR PRODUCT



1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.





COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.





WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.




FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................

3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
