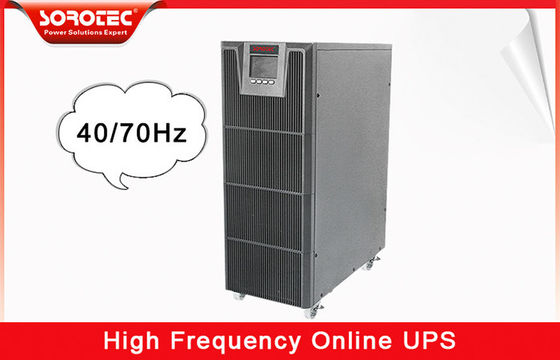

3KVA 2.7KW Pure Sine Wave High Frequency Online UPS Power Supply

Minimum Order Quantity : 2PCS Price : 10000USD
Packaging Details : Standard Exported Cartons and Pallets Payment Terms : Western Union, L/C, T/T
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: HP9116C PLUS 1-3KVA

Detail Information

Model: HP9116C PLUS Type: High Frequency Online UPS
Phase: Single Phase Capacity: 6-10KVA
Power Factor: 0.9 Parallel Function: 3pcs
Input Voltage: 220/230/240VAC Output Voltage: 220/230/240VAC
Application: Telecom ,Industry,Medical
High Light:

ups uninterruptible power supply


high frequency ups

Product Description

3KVA 2.7KW Pure Sine Wave High Frequency Online UPS Power Supply-HP9116C PLUS Series




Typical Application

-Data centre,

-bank station,

-network ,

-communication equipment,

-office, automatic equipment,

-monitor equipment,

-control system and so on


Good Performance and strong extendable capacity

1.Optional Battery voltage  depend on capacity  to satisfy different requirement.

2.Convenience to get more back up time and lower system invests

3.Convenience to save cost of battery

4.Intelligent battery monitors Charge current can be adjust

5.Standant charge current 4A

6.Support more discharge time and more capacity battery for 8A charger Input topology design

7.Support three phase input or single phase input for three phase UPS

8.Super wide input voltage and frequency range suitable for bad power electirc environment

9.Digital control DSP technology and best power component make the system safe and reliable


3KVA 2.7KW Pure Sine Wave High Frequency Online UPS Power Supply 0

Multifunction friendly design and advanced parallel technology

1.Stable parallel control technology make sure current sharing to 1%

2.Select trip technology can avoid and isolation system fault then improved system availability

3.Flexible extension capacity and redundance management that can satisfy all kinds of requirements

4.Support maximum 3 units for parallel working Flexible strategy

5.On line mode provides higher system availability

6.High efficiency mode provides more economic operation

7.Frequency conversion provides more stable output


3KVA 2.7KW Pure Sine Wave High Frequency Online UPS Power Supply 1

Powerful  function and Higher Power Factor  0.9

1.Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.Input power factors up to 0.99

2.Three phase input model support three phase PFC , input THDI<5%

3.Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

4.Efficiency up to 93.5%when take the 30%load

5.ECO mode efficiency up to 98%

3KVA 2.7KW Pure Sine Wave High Frequency Online UPS Power Supply 2

Data Parameter For Your View( OEM Produce are available)


Model HP9116C PLUS 1-3KVA
Rated Power 1KVA/0.9KW 2KVA/1.8KW 3KVA/2.7KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70HZ
Voltage Range 115~300VAC
THDi <10%
Power Factor >0.98
Voltage Regulation 220±2%VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.9
Voltage Distortion Linear load<4% Non-linear load<7%
Overload Capability 110%~150% for 47-25 sec;150% ~200% for 25-300ms;>200% for 200m
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Efficiency(on line mode) >89% >90% >90%
DC Voltage 24VDC 36VDC 48VDC 72VDC 72VDC 96VDC
Recharge Time 7 hours to 90% of capacity
Recharge Current 1A 6A 1A 6A 1A 6A
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Interface Smart RS232, SNMP card (Optional),USB (Optional)
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <45dB <50dB
Physics Characteristic
Dimensions: Wx D x H )mm 145X345X229 192X393X328
