Battery inside High Frequency Online UPS , high power uninteruptible power supply

Minimum Order Quantity : 1pcs Price : 1-500 USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, L/C, T/T Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC /OEM
Certification: CE,ROHS,RSO9000 Model Number: HP9116C PLUS 1-20KVA

Detail Information

Product Name: High Frequency Online UPS Phase: 3Ph In/1Ph Out
Waveform: Pure Sine Wave Capacity: 1KVA-20KVA
Output Power Factor: 0.9 Input Voltage Range: 120~275VAC (±3VAC)
Output Voltage: 220±1%VAC Rated Frequency: 40-70Hz(50/60hz Auto-sensing)
Display: LCD
High Light:

pure sine wave ups


high frequency ups

Product Description

Battery inside High Frequency Online UPS , high power uninteruptible power supply
Typical application
Data centre, bank station, network , communication equipment, office, automatic equipment,
monitor equipment, control system
Highly flexible and extendable
Battery voltage optional depend on load capacity , can meet different requirement.Convenience to get more back up time and lower system invests.Low power consumption and with Intelligent battery monitors management.
Charge current  adjustable and advanced Input technology design
Standant charge current is  4A. Support more discharge time and more capacity battery for 8A charger.
Support three phase input or single phase input for three phase UPS. Super wide input voltage and frequency range suitable for bad power grid  environment. Digital control DSP technology makes the system more safe and reliable with best power component.
Multifunction friendly design ,Advanced parallel technology

  • Stable parallel control technology make sure current sharing to 1%
  • Select trip technology can avoid and isolation system fault then improved system availability
  • Flexible extension capacity and redundance management
  • Support maximum 3 units for parallel working

Flexible strategy ,Output power factor up to 0.9,The efficiency up to 94%

  • On line mode provides higher system availability
  • High efficiency mode provides more economic operation
  • Frequency conversion provides more stable output
  • Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
  • Three phase input model support three phase PFC , input THDI<5%
  • Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
  • Efficiency up to 93.5%when take the 30%load
  • ECO mode efficiency up to 98%

Technical Specifications:

Model HP9116C/HP9316C 10-20KVA PLUS (3Ph in/1Ph out)
Rated Power 10KVA/9KW 15KVA/13.5KW 20KVA/18KW
Rated Voltage 220VAC/380VAC 3phase with ground
Rated Frequency 40-70 Hz (50/60 Auto-sense)
Voltage Range Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load)
Power Factor >0.95(Three phase) ≥0.99
Voltage Regulation 208/220/230/240VAC (±1%)
Frequency Regulation 50/60HZ±0.05 Hz
Power Factor 0.9
Voltage Distortion Linear load<2% ,Non-Linear load<5%
Overload Capability 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
DC Voltage 192VDC 192/216V/240VDC
Recharge Current 4A 4A (8A optional)
LCD Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate.
Interface Smart RS232,SNMP card (optional) USB (optional)
Operation Temperature 0~40℃
Humidity 0~95% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <55dB
Physics Characteristic
Weight(KG) 16.9 31
Dimensions :(Wx D x H)mm 212X420X500 248X565X500

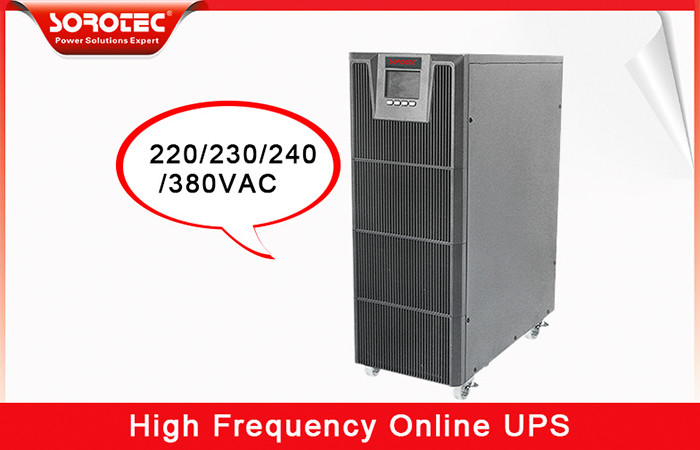

Battery inside High Frequency Online UPS , high power uninteruptible power supply 0

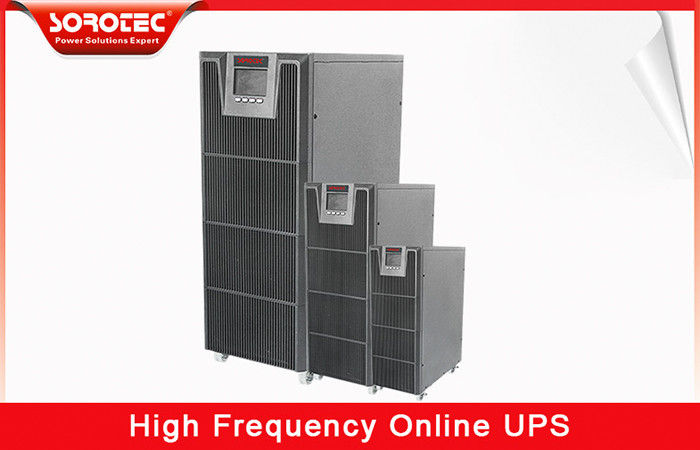

Battery inside High Frequency Online UPS , high power uninteruptible power supply 1
