High Efficiency 48V DC 90A Embedded Power Supply System

Minimum Order Quantity : USD10000 Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: Embedded System - 3U48V90A

Detail Information

Rated Voltage: 220V AC Intput Voltage Range: 85 - 300V
AC Frequency Range: 45 - 66HZ
High Light:

telecom dc power systems


telecom battery backup systems

Product Description

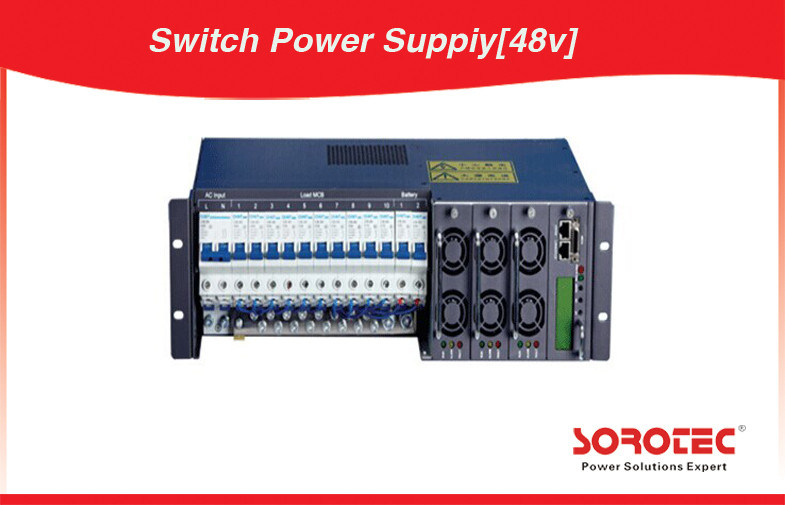

High Efficiency 48V DC 90A Embedded Power Supply System

Small SPC exchange
AN(access network)
Transmission equipment
Moving communication

AC Input:
Rated input voltage: 220V

AC input Voltage range: 85-300V

AC input Frequency range; 45-66HZ

Power factor: ≥ 0.99

Efficiency: >92%

DC Input:
Rated voltage:48V

Voltage range: 42-60V

Rated Current :30A/45A/60A/90A

Load shunt:10 road load

Battery shunt : 2 road battery

Battery LVD:100A× 1

Mode of connection:Former connection wire

Rectifier Module:SR4810, SR4815, SR4820, SR4830

Monitoring Module:STM-1

Safety characteristics:
Input ----output 3000vac/10mA//1min

Input---- chassis 2500Vac/10mA//1min

Input---- chassis 500Vac/10mA//1min

Operating temperature:-40-+70° C

Humidity : ≤ 95% non-condensing

Mechanical characteristic:
Dimensions(W. H. D): 482.6*132*280(mm)

Weight(Kg); 15kg (include rectifier module)
