Hybrid On / off grid solar inverter 2kva 2000w with 80A MPPT Controller

Minimum Order Quantity : 2PCS Price : 200-1000
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information

Product: ON/OFF Grid Solar Panel Inverter Power Output: 2KVA/2000W
Input Voltage: 90-280VAC ,170-280VAC Nominal Voltage: 220/230/240VAC
Efficiency: 93%(DC To AC) Maximum Solar Charge Current: 80A
Display: LCD Battery&Charger: 24VDC
Application: Home Appliances Waveform: High Frequency Pure Sine Wave
High Light:

grid hybrid solar power inverter


hybrid pv inverter

Product Description

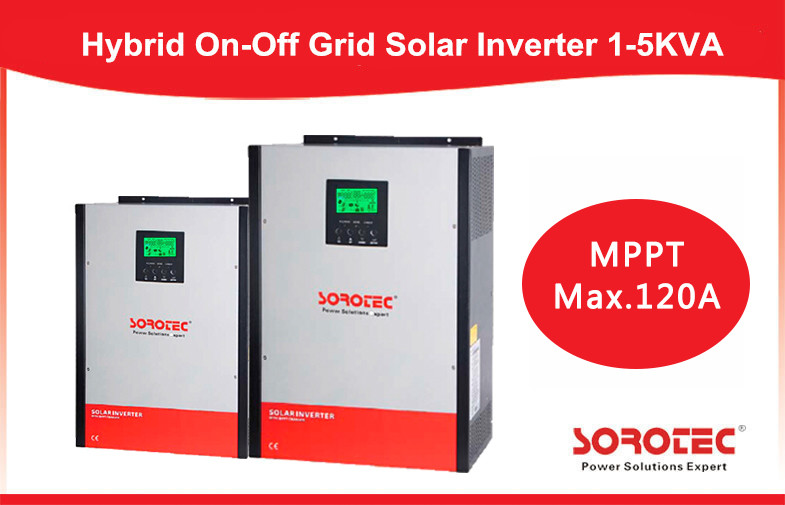

Hybrid On / off grid solar inverter 2kva 2000w with 80A MPPT Controller



Key Features:

1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup


Fully Protection:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.


SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:

MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 90%
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃





Provide long time backup ac power supply for the household appliances ,office appliances and solar power system.etc
