Modified Sine Wave Inverter Off - Grid Solar Inverter With 40A Solar Controller

Minimum Order Quantity : 5PCS Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C Plus 1-2KVA

Detail Information

Nominal Voltage: 220/230/240VAC Nominal Frequency: 50/60Hz
Frequency Range: 50/60Hz Output Voltage Regulation: 230VAC±10%
Frequency Regulation: 50/60Hz±0.1Hz Battery Mode Utility: 10ms Max
Battery Mode: >80% Line Mode: >95%
EFFICIENCY: >80% CHARGING ALGORITHM: 3-step Charging
High Light:

solar power inverter for home

,

home power inverter

Product Description

Modified sine wave inverter, off-grid solar inverter with 40A solar controller





Key Features

1. Built-in PWM solar charge controller.

2. Modified sine wave output.

3. High frequency design.

4. Optional input voltage range.

5. Full automatic and silent operation.

6. Automatic charging.

7. Auto change AC-DC.

8. Over-load prote

9. Automatic restart.

10. Three-steps intelligent charging control to recharging.

11. LCD display, audible and visual alarm.





Full Protection

Protection for low battery voltage,overload,output short circuit and overtemperature

restrain surge interference,eliminate noise,protection for

thunderstriking,provide the reliable power to the home appliances





Application

Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.





Product Descriptions of Off Grid Off-grid Solar Inverter With Charger

Model SSP3111C Plus 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1440W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60Hz
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range)
Frequency Range 50/60Hz
Output
Voltage Regulation 230VAC±10%
Frequency Regulation 50/60Hz±0.1Hz
Wave Form Modified Sine wave
Utility to battery mode 15-20ms typical(narrow range); 40ms max(wide range)
Battery mode to Utility 10ms max
Battery mode efficiency >80%
Line mode efficiency >95% (battery full charged)
Battery
DC Voltage 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A

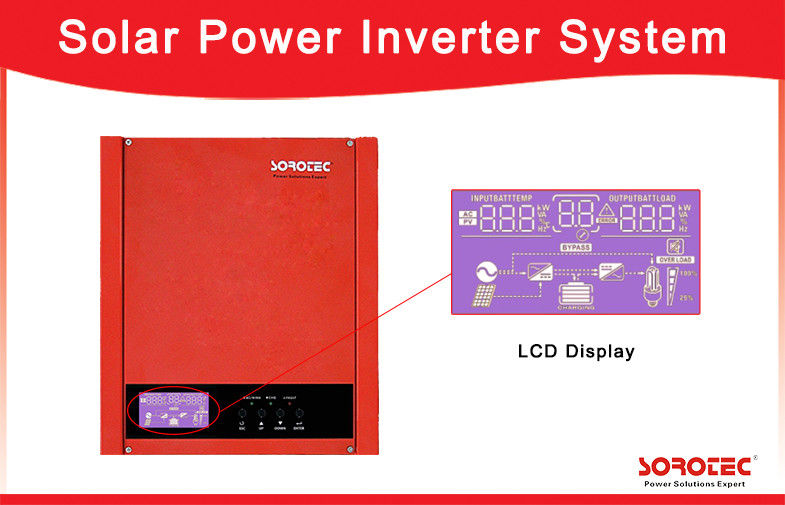

LCD Display & LED Indicate
Line mode Line mode 1, charge current >3A Green flashing every 2 seconds
Line mode 2,charge current ≦3A Green solid lighting
Off-charge mode Green flashing as cycle:
Battery Mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
SOLAR CHARGE
Maximum PV Array Open Circuit Voltage 55VDC
PV Optimal Work Voltage 15V~18Vdc 30-36Vdc
Maximum Charging Current 50A
Maximum Efficiency >96%
Standby Power Consumption <20W
Environment
Temperature 0°C~40°C
Humidity 5%-95% (<40°C, Non-condensing)
Storage Temperature -15°C~55°C
Elevation <1500m
IP Proyection level IP20
PHYSICAL
Dimension,D×W×H (mm) 298.9×250×105
Net Weight (kgs) 2.62 2.76







APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip







COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.







WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.





FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................

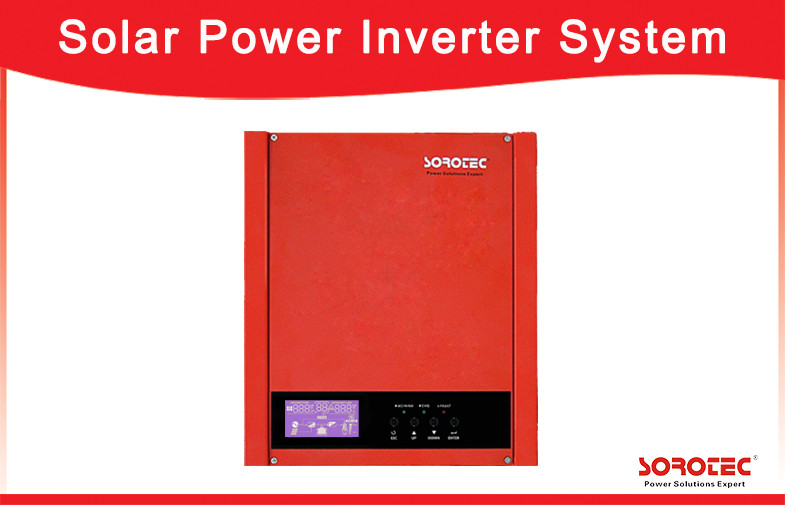

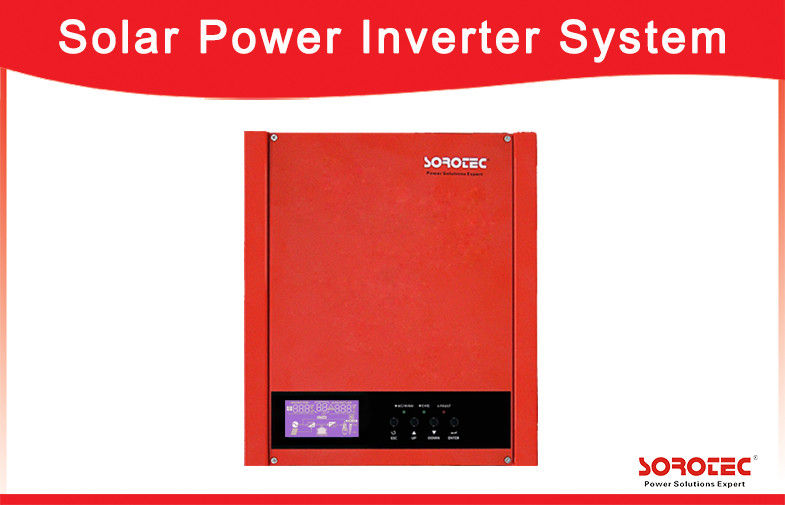

Modified Sine Wave Inverter Off - Grid Solar Inverter With 40A Solar Controller 0Modified Sine Wave Inverter Off - Grid Solar Inverter With 40A Solar Controller 1
