DC Power
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
Minimum Order Quantity : | USD10000 | Packaging Details : | Standard Exported Cartons and Pallets |
---|---|---|---|
Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | 30% TT in advance, the balance before shipping |
Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
Place of Origin: | China | Brand Name: | SOROTEC |
---|---|---|---|
Certification: | CE,ROHS,ISO9000 | Model Number: | HP5110E 600 - 2000VA |
Detail Information |
|||
Nominal Voltage: | 220/230/240VAC | Nominal Frequency: | 50/60Hz |
---|---|---|---|
Voltage Range: | 165VAC-275VAC(±5VAC) | Frequency Range: | 40-70Hz |
Voltage Regulation: | 220/230/240VAC±2% | Wave Form: | Modified Sine Wave |
Switch Time: | <10ms(Typical 5ms) | ||
High Light: | pv energy storage systems,battery energy storage system |
Product Description

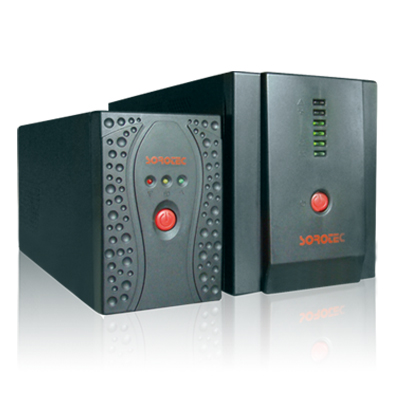

Modified Sine Wave Line Interactive UPSHP5110E 600-2000VA
Key Features:
1. Microprocessor control guarantees high reliability
2. Advanced line-interactive design
3. Intelligent voltage regulation technique
4. Intelligent charging technique
5. User-replaceable battery design
6. Complete soft ware monitoring system
7.Well-adapted to the environment
Wide input voltage range 165V±5V-275V±5V,avoid switching to the AC model frequently,extend the useful life of the battery , reduce the cost of changing battery , adapted to the environment where the power system is bad.
8.Load safely
Automatically regulate the voltage, ensure the load work under safe voltage range
9.DC START function
Built-in DC start function enables UPS to be started up without AC Power supplied
10.Strong electromagnetism compatibility
Adopted the advanced wide range frequency input technique,frequency range 40-70Hz,enable the UPS work normally when the AC frequency drifts. Provides the UPS with better compatibility with various generators and reduce the cost for purchasing generator.
11.High Optimizing Performance for battery
Advanced battery management,Automatically regulate the cut-off voltage of the battery according to the load capacity. Extending the useful life of the battery and improving the UPS efficiency.
12.Unattended Mode function
When the UPS cut off in low battery voltage which caused by AC fault , it will automatically charge the battery when the AC recover, this function will protect the battery effectively, extend the useful life of the battery and can recover the battery back-up time in a short time
13.Full protection
Protection for low battery voltage,over load,output short circuit and over- temperature. Restrain surge interference,eliminate noise,protection for thunder striking. Reduce the risk of damaging customer’s equipment and the loss of losing data; Save the cost and time for maintainance.
Back Panel Description of line interactive UPS HP5110E 600-2000VA
Applications
Ideal for PCs, Workstations and POS systems
Technical Specifications of line interactive UPS HP5110E 600-2000VA
Model |
HP5110E 600-2000VA |
|||||||||
600VA |
800VA |
1000VA |
1400VA |
2000VA |
||||||
Capacity |
600VA/ 360W |
800VA/ 480W |
1000VA/ 600W |
1400VA/ 840W |
2000VA/ 1200W |
|||||
Nominal voltage |
220/230/240VAC |
|||||||||
Nominal frequency |
50/60Hz |
|||||||||
Input |
||||||||||
Voltage Range |
165VAC-275VAC(±5VAC) |
|||||||||
Frequency Range |
40-70Hz |
|||||||||
Output |
||||||||||
Voltage Regulation |
220/230/240VAC±2% |
|||||||||
Frequency Regulation |
Battery model:50/60Hz±0.1Hz AC model:Auto sense |
|||||||||
Wave form |
Modified sine wave |
|||||||||
Switch time |
<10ms(Typical 5ms) |
|||||||||
Battery |
||||||||||
Battery type and number |
12V/7Ah× 1pcs |
12V/7Ah× 1pcs |
12V/7Ah× 2pcs |
12V/7Ah× 2pcs |
12V/7Ah ×2pcs |
|||||
Dispaly |
||||||||||
LED |
Display AC,Battery,Load,Over-load,Fault,etc |
|||||||||
Communication |
|
|||||||||
Communication port |
RS232 port,USB port(Optional) |
|||||||||
Operating Environment |
||||||||||
Temperature |
0℃~40℃ |
|||||||||
Humidity |
5%~95%(<40℃,no condensation.) |
|||||||||
Storage Temperature |
-25℃~55℃ |
|||||||||
Elevation |
Less than 1500 meter |
|||||||||
Noise (within 1 meter) |
<45dB |
|||||||||
Physical |
||||||||||
Weight(KG) |
Net weight |
6 |
6.5 |
9.6 |
9.7 |
9.8 |
||||
Gross weight |
8 |
8.5 |
11.6 |
11.7 |
11.8 |
|||||
Dimension: WXDXH mm |
330×100×140mm |
405×205×145mm |
Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
