Rack-Tower Convertion Single Phase Online UPS Uninterruptible Power Supply 1-10KVA

Minimum Order Quantity : 2PCS Price : Negotiable
Packaging Details : Standard Exported Cartons and Pallets Payment Terms : L/C, T/T
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: Shenzhen,China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: HP9115CRT 1-10KVA

Detail Information

Product: High Frequency Online UPS Model: HP9115CRT
Capacity: 1-10KVA Phase: Single Phase
Nominal Voltage: 208/220/230/240VAC Single Phase 2 Wire+G Output Power Factor: 0.8
Frequency: 50/60HZ Application: Telecommunication System, Industry Process And Other Key Equipments
Installation Method: Rack-Tower Convertible Energy Saving: ECO(economic Operation Mode
Low Distortion: Yes High Reliability: Adopts DSP All-digital Control Technology
Battery: Support Hot-swap Display Interface: Large Blue LCD Display
OEM Or LOGO: Available
Highlight:

rack mounted power supply

,

rack mounted ups

Product Description

Rack-Tower Convertion Single Phase Online UPS Uninterruptible Power Supply 1-10KVA



Key Features:

1.Rack & Tower Design UPS



2.0.8 Output Power factor



3.LCD Display



4.Intelligent slot available



5.Pure sine wave high frequency online UPS,with voltage adjustment circuit, provide stable power protection in bad operation environment



6.Comprehensive electrical isolation protection and bypass protection, self test function



7.Input neutral and live wire detection function and data protection function



8.Main power failure,going to DC staring ,Convenient and reliable; Main power recover,UPS start automatically

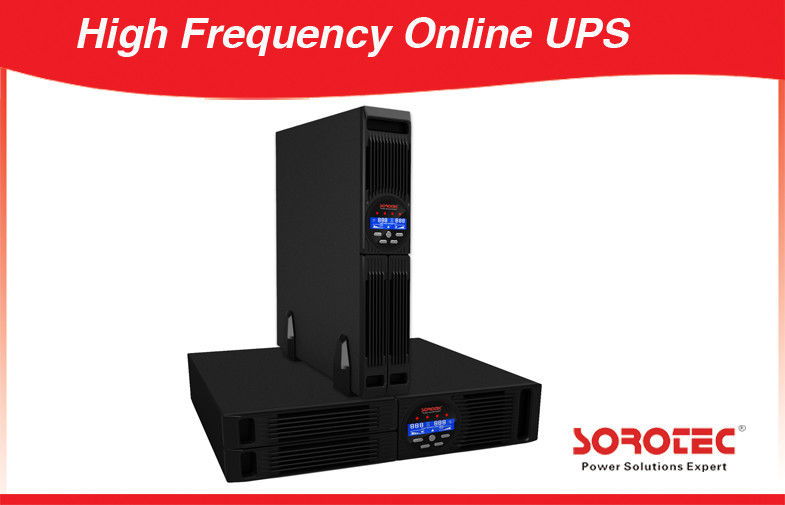

Rack-Tower Convertion  Single Phase Online UPS  Uninterruptible Power Supply 1-10KVA 0



Application:

This series against the key equipment, such as special communication system and computer network system,and provide more flexible and reliable power protection for equipments require strict environment of power







Technical Specifications of Rack Mount UPS HP9115CRT HP9315CRT 1-10KVA

Model HP9115CRT 1-10KVA

HP9315CTR

10KVA

1KR/1KR-XL 2KR/2KR-XL 3KR/3KR-XL 6KR/6KR-XL 10KR/10KR-XL 10KR/10KR-XL
Capacity 1KVA/800W 2KVA/1600W 3KVA/2400W 6KVA/4800W 10KVA/8000W 10KVA/8000W
Nominal Voltage 220/230/240VAC 380VAC
Frequency 50/60 Hz
Input
Voltage Range 115~295VAC(±3VAC) 176~297VAC(±3VAC)

304~478VAC

(±3VAC)

Frequency Range 50HZ:(46~54HZ);60HZ:(56HZ~64HZ)
Power Factor >0.98
Output
Voltage precision 220/230/240X (1±2%)VAC
Frequency precision 50/60HZ±0.05Hz
Power Factor 0.8(option)
Harmonic Distortion Linear Load<3% Non-Linear Load<6%
Overload capacity

overload(110%~150%)after 30 seconds automatically transfer to bypass, it recover after normal

load

Current Crest Ratio 3:1
Transfer time 0ms(AC→DC)
Battery
DC voltage 36VDC 72VDC 96VDC 192VDC &240VDC optional
Recharge time 5 hours to 90%
Charge Current 1A 4A/8A optional 1A 4A/8A optional 1A 4A/8A optional 2.0A/4.2A(option)
Panel Display
LCD

Display input and output voltage, frequency, battery voltage, battery capacity, and the percentage

of load

Communicate
Communicate interface RS232, SNMP card(option, USB port(option)
Working Environment
Temperature 0~40°C
Humidity 0~95% non-condensing
Storage Temperature -25°C~55°C
Elevation <1500 meter
Noise Level(1meter ) <45dB <50dB
Physics Characteristic
Weight(KG) N.W 16.5 9 26 11.5 26 12.5 18.5 18.5 25 32 25 32
G.W. 18.5 11.5 28 14.5 28 15 21.5 21.5 28.2 35 28.2 35
Dimension (WXDXH)

447x450

x130

447x600

x130

447x450

x130

447x600

x130

447x450

x130

447 x600x130

447x600

x177
