Reliable 3 phase Online High Frequency UPS Uninterruptible Power Supply 20KVA/18KW

Product Description

Reliable 3 phase High Frequency Online UPS Uninterruptible Power Supply 20KVA/18KW



Application

Data centre, bank station, network , communication equipment, office, automatic equipment, monitor equipment, control system



Highly flexible and extendable

Battery can choose

1. Battery voltage can be choice depend on capacity , can satisfy different requirement.

2. Convenience to get more back up time and lower system invests

3. Convenience to save cost of battery

4. Intelligent battery monitors Charge current can be adjust

5. Standant charge current 4A

6. Support more discharge time and more capacity battery for 8A charger

Input topology design

7. Support three phase input or single phase input for three phase UPS

8. Super wide input voltage and frequency range suitable for bad power electirc environment

9. Digital control DSP technology and best power component make the system safe and reliable



Multifunction friendly design

Advanced parallel technology

1. Stable parallel control technology make sure current sharing to 1%

2. Select trip technology can avoid and isolation system fault then improved system availability

3. Flexible extension capacity and redundance management that can satisfy all kinds of requirements

4. Support maximum 3 units for parallel working

Flexible strategy

5. On line mode provides higher system availability

6. High efficiency mode provides more economic operation

7. Frequency conversion provides more stable output



Powerful Function

Output power factor up to 0.9

1. Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability. Input power factors up to 0.99

2. Three phase input model support three phase PFC , input THDI<5%

3. Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

4. Efficiency up to 93.5%when take the 30%load

5. ECO mode efficiency up to 98%

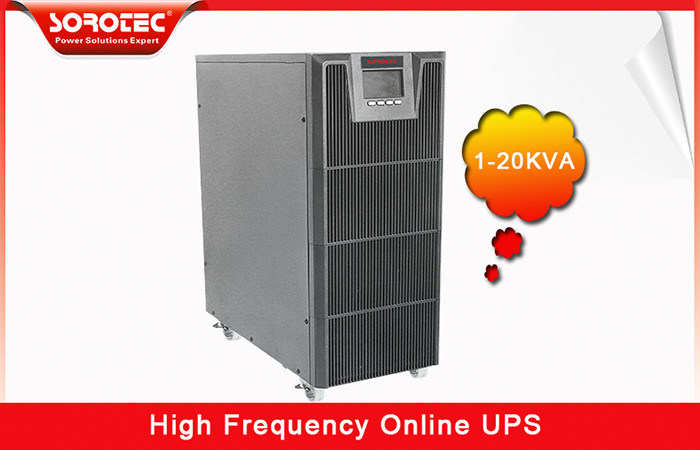

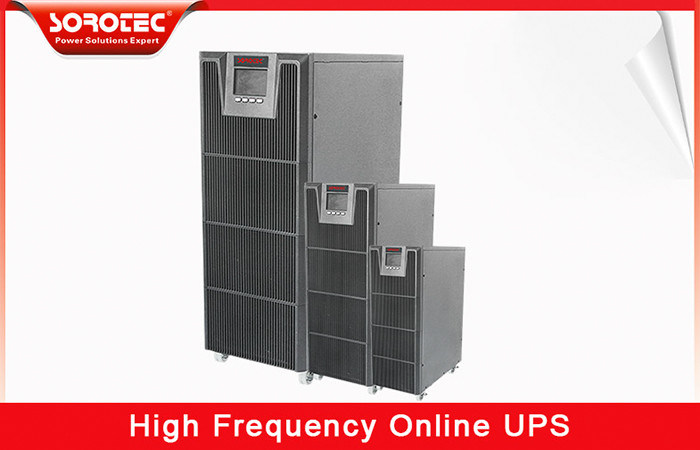

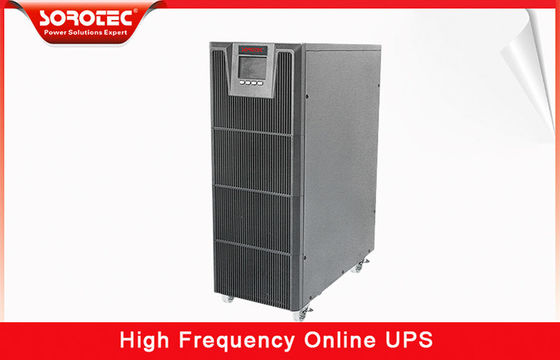

PRODUCT SHOW







Product Descriptions of 20Kva 3 Phase Ups



Model		HP9116C/HP9316C 10-20KVA PLUS
		10KT-XL		15KT-XL		20KT-XL
Rated Power		10KVA/9KW		15KVA/13.5KW		20KVA/18KW
Rated Voltage		220VAC/380VAC 3phase with ground
Rated Frequency		40-70 Hz (50/60 Auto-sense)
Input
Voltage Range		Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load)
Power Factor		>0.95(Three phase)				≥0.99
Output
Voltage Regulation		208/220/230/240VAC (±1%)
Frequency Regulation		50/60HZ±0.05 Hz
Power Factor		0.9
Voltage Distortion		Linear load<2% ,Non-Linear load<5%
Overload Capability		105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms
Current Crest Ratio		3:01
Transfer Time		0ms (AC mode→Battery mode)
Battery
DC Voltage		192VDC					192/216V/240VDC
Recharge Current		4A					4A (8A optional)
Display
LCD		Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate.
Communication
Interface		Smart RS232,SNMP card (optional) USB (optional)
Environment
Operation Temperature		0~40℃
Humidity		0~95% (Non-condensing)
Storage Temperature		-25℃~55℃
Sea Level Elevation		<1500m
Noise Level (1m)		<55dB
Physics Characteristic
Weight(KG)		16.9					31
Dimensions :(Wx D x H)mm		212X420X500					248X565X500
