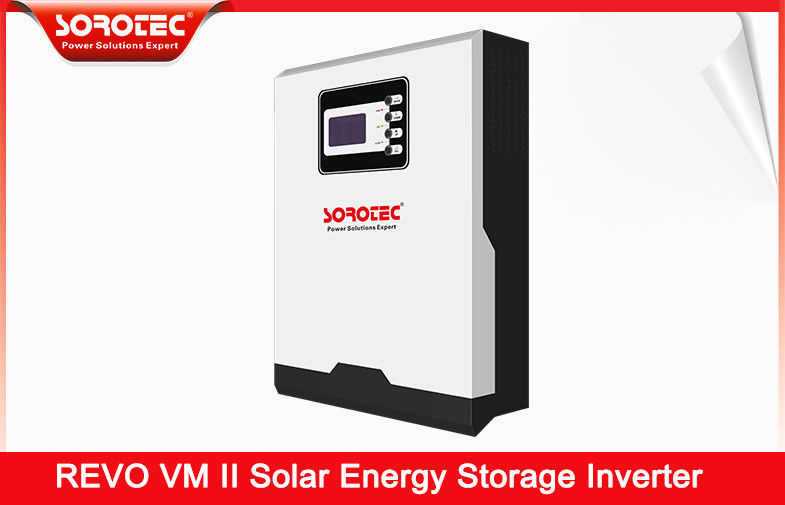

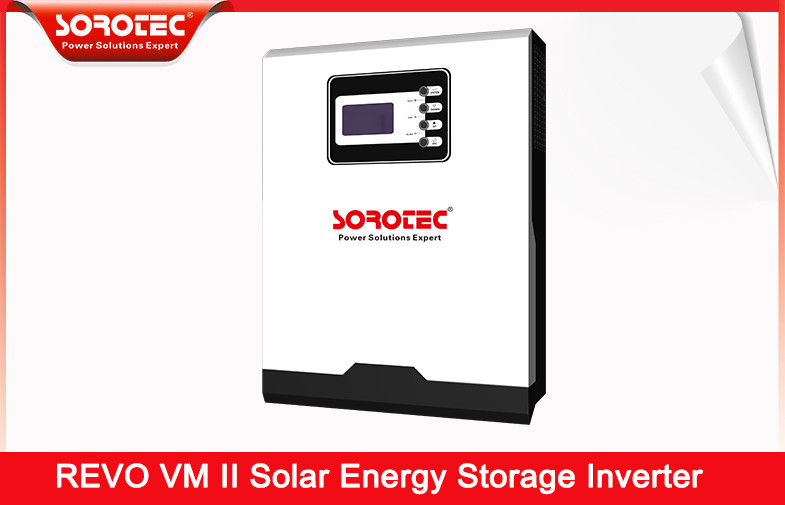

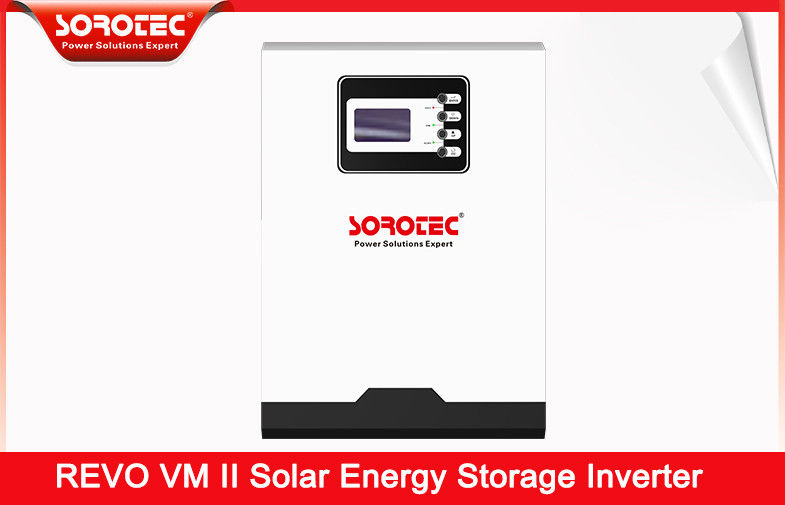

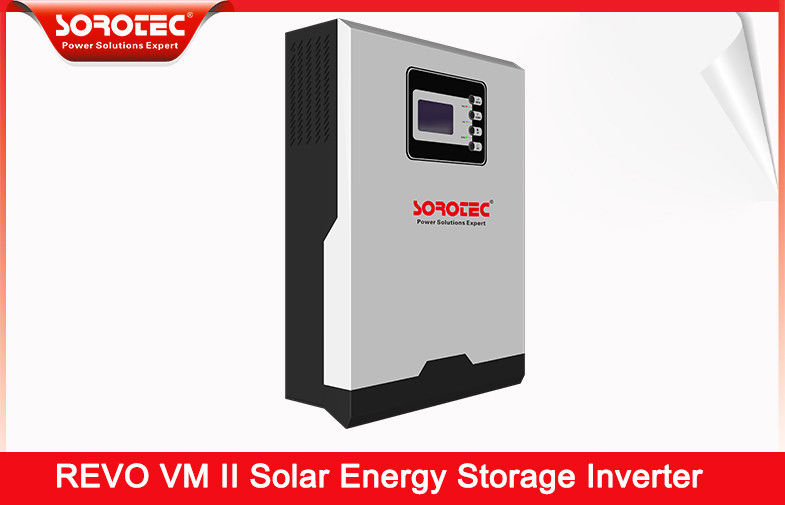

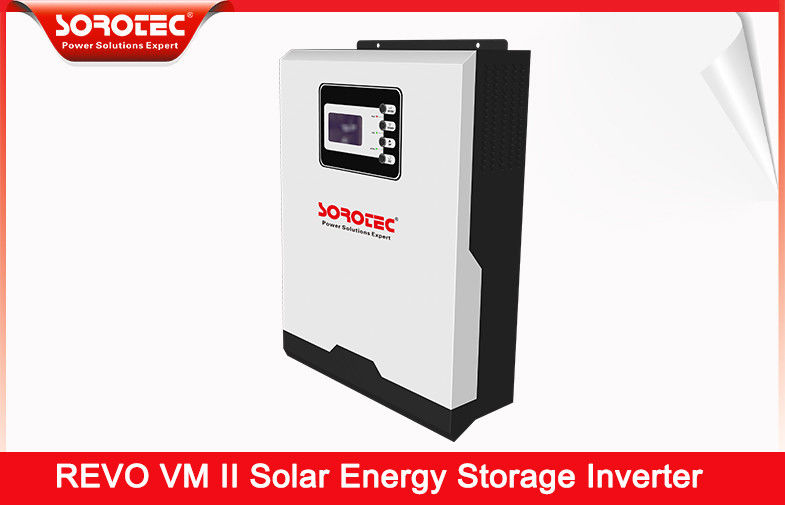

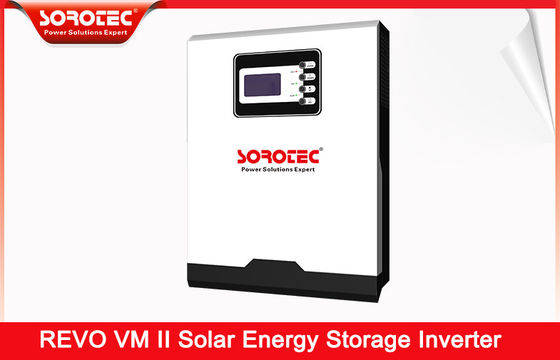

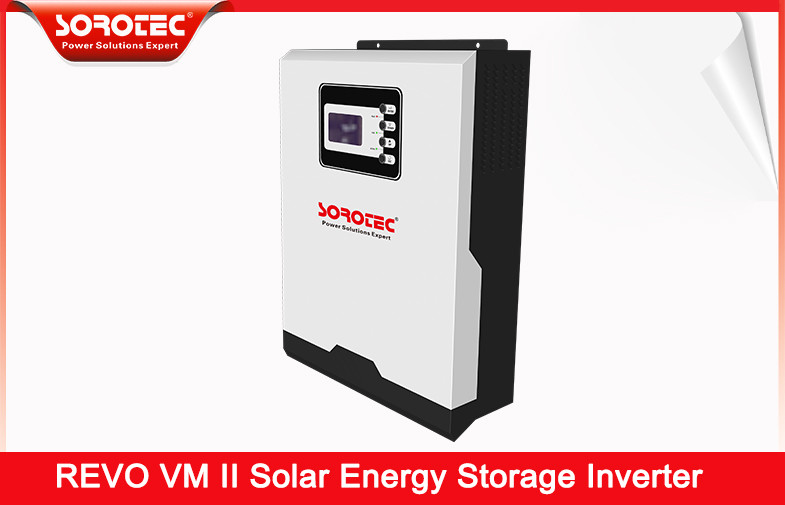

REVO VM II Series Off Grid Energy Storage Inverter
REVO VM II Series Off Grid Energy Storage Inverter REVO VM II Series Off Grid Energy Storage Inverter REVO VM II Series Off Grid Energy Storage Inverter REVO VM II Series Off Grid Energy Storage Inverter REVO VM II Series Off Grid Energy Storage Inverter
Contact Now

REVO VM II Series Off Grid Energy Storage Inverter

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: REVO VM II

Detail Information
Rated Power: 3-5.5kw Frequency Range: 50 Hz/60 Hz (Auto Sensing)
Maximum PV Array Power: 5500 W MPPT Range @ Operating Voltage: 120~450 VDC
Maximum Charge Current: 100 A Communication Interface: USB/RS232
High Light:

uninterruptable power supply

,

ups power supply

Product Description

REVO VM II Series Off Grid Energy Storage Inverter

REVO VM II Pure sine wave solar inverter Output power factor 1
Parallel operation up to 9 units High PV input voltage range Battery independent design



Key Features:
Pure sine wave solar inverter
Output power factor 1
Parallel operation up to 9 units
High PV input voltage range
Battery independent design
Built-in 100A MPPT solar charger
Battery equalization function to optimize battery performance and extend lifecycle
Built-in anti-dusk kit for harsh environment



Anti-Dust Kit:
After installing this anti-dust kit, inverter will automatically detect this kit and activate internal thermal sensor to adjust internal
temperature. By virtue of the dustproof design, it dramatically increases product reliability in harsh environment.


REVO VM II Series Off Grid Energy Storage Inverter 0



REVO VM II Series
Wall Mounted Integrated Solar Inverter Technical Specification Built-in MPPT Solar Controller

MODEL REVO VM II 3000-24 REVO VM II 5500-48
Rated Power 3000VA / 3000W 5500VA / 5500W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
ACVoltage Regulation(Batt. Mode) 230VAC ± 5%
Surge Power 6000VA 11000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 33 VDC 63 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 500 VDC 500 VDC
Maximum PV Array Power 5500 W 5500 W
MPP Range @ Operating Voltage 120~450 VDC 120~450 VDC
Maximum Solar Charge Current 100 A 100 A
Maximum AC Charge Current 80 A 80 A
Maximum Charge Current 100 A 100 A
PHYSICAL
Dimension, D x W x H (mm) 100 x 300 x 440
Net Weight (kgs) 9 10
Communication Interface USB/RS232
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
