Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | USD10000 | Packaging Details : | Standard Exported Cartons and Pallets |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | 30% TT in advance, the balance before shipping |
| Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | IG3115E 1-6KW |
|
Detail Information |
|||
| Input Voltage Waveform: | Sinusoidal (utility Or Generator) | Nominal Input Voltage: | 230Vac |
|---|---|---|---|
| Low Line Disconnect: | 184Vac±4% | High Line Disconnect: | 253Vac±4% |
| Max AC Input Voltage: | 270Vrms | Nominal Input Frequency: | 50Hz/ 60Hz (Auto Detection) |
| Efficiency (Line Mode): | >95% | Output Voltage Waveform: | Pure Sine Wave |
| Power Factor: | 0~1.0 | Nominal Output Voltage (V): | 230Vac |
| High Light: | solar power inverter for home,home power inverter |
||
Product Description

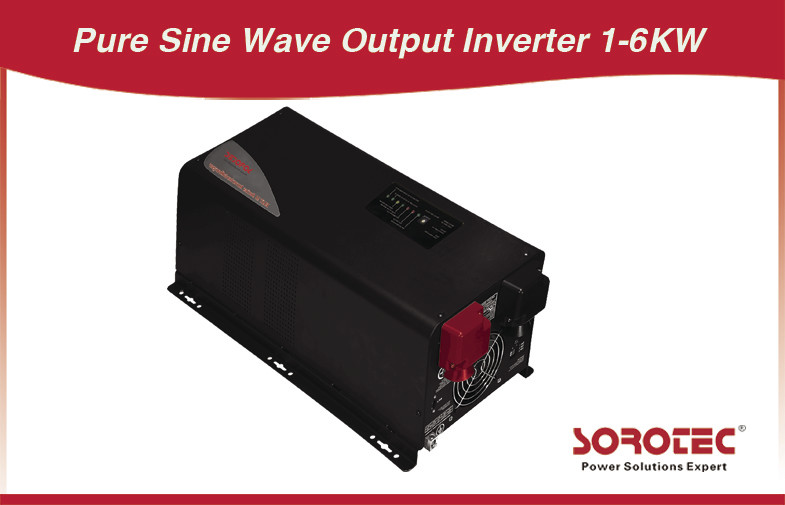

Sinusoidal UPS Power Inverter with 35A 24V 1000W
Key Features:
Pure Sine wave Output
The charging current is big up to 70 A
Output Power Factor is 0.9-1
LED display, audible and visual alarm
Full automatic and silent operation
Rack Tower design
Automatically charging
Auto change AC-DC
Automatically restart
Two-steps intelligent charging control to recharging time
Applications :
Supply the reliable long back up time power for the Home appliances and office appliances (For example:DVD, Fan, TV etc)
Technical Specification of Pure Sine Wave Inverter IG3115 Series:
|
MODEL |
Pure Sine wave Out |
|||||||||
|
IG3115E |
IG3115E |
IG3115E |
IG3115E |
IG3115E |
IG3115E |
|||||
|
Input Voltage Waveform |
Sinusoidal |
|||||||||
|
Nominal Input Voltage |
230Vac |
|||||||||
|
Low Line Disconnect |
184Vac±4% |
|||||||||
|
High Line Disconnect |
253Vac±4% |
|||||||||
|
Max AC Input |
270Vrms |
|||||||||
|
Nominal Input |
50Hz/ 60Hz |
|||||||||
|
Over-Load Protection (SMPS load) |
Circuit breaker |
|||||||||
|
Output Short |
Circuit breaker |
|||||||||
|
Efficiency |
>95% |
|||||||||
|
Transfer |
30A |
|||||||||
|
Transfer Time (Ac to Dc) |
20ms (typical) |
|||||||||
|
Output Voltage |
Pure Sine wave |
|||||||||
|
Rated Output |
1000W |
1000W |
2000W |
2000W |
3000W |
3000W |
||||
|
Power Factor |
0~1.0 |
|||||||||
|
Nominal Output |
230Vac |
|||||||||
|
Output Voltage |
±10% rms |
|||||||||
|
Nominal Efficiency |
>80% |
|||||||||
|
Nominal DC |
12V |
24V |
12V |
24V |
12V |
24V |
||||
|
Nominal Charge |
70A |
35A |
70A |
35A |
70A |
35A |
||||
|
Charge Current |
± 5Adc |
|||||||||
|
Battery |
0-15.7 Vdc (can operate with 0V battery) |
|||||||||
|
Communication: |
RJ11 (Used for factory testing. No customer interface available) |
|||||||||
|
Safety Certification |
Compliance with UL458 |
CE(EN60950) |
||||||||
|
EMI Classification |
FCC, CLASS A |
EN50091-2, |
||||||||
|
Operating |
0°C to 40°C |
|||||||||
|
Storage temperature |
-15ºC 60ºC |
|||||||||
|
Operation humidity |
5% to 95% |
|||||||||
|
Audible Noise |
60dB max |
|||||||||
|
Cooling |
Forced air, variable |
|||||||||
|
Size |
381mm*217mm*179mm |
|||||||||
