Wall Mounted Integrated Solar Power Inverters SSP3118C4 1-5KVA

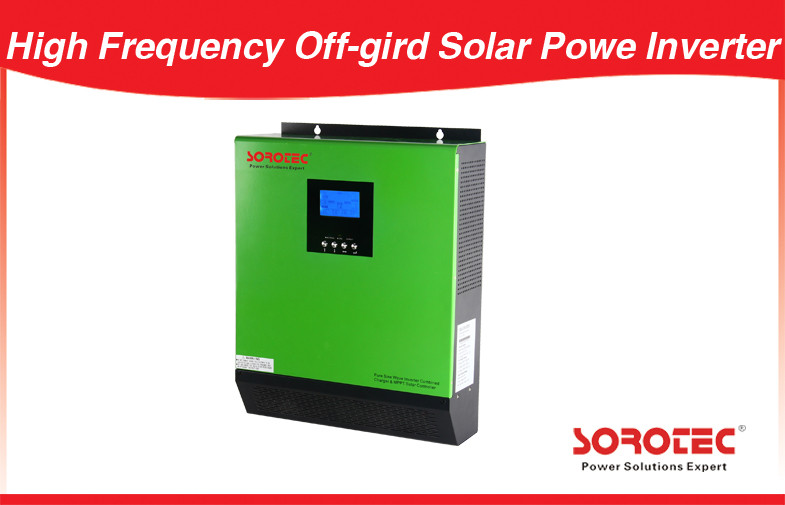

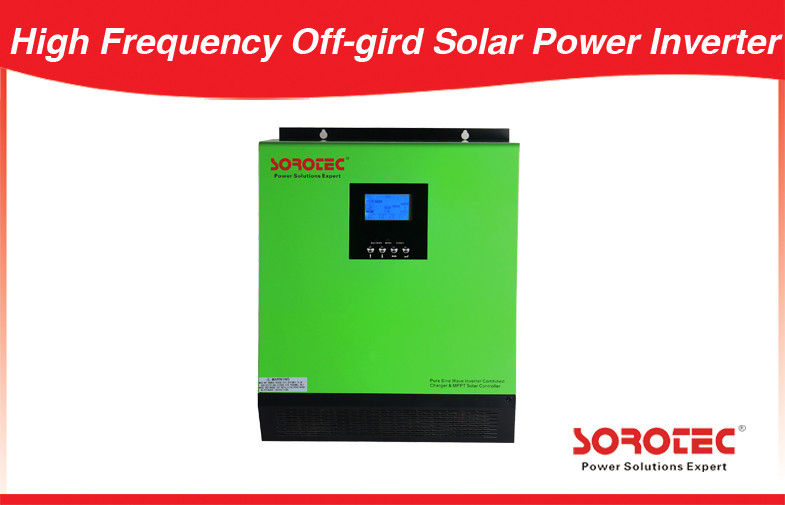

Wall Mounted Integrated Solar Power Inverters SSP3118C4 1-5KVA Wall Mounted Integrated Solar Power Inverters SSP3118C4 1-5KVA
Contact Now

Wall Mounted Integrated Solar Power Inverters SSP3118C4 1-5KVA

Minimum Order Quantity : 2 Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3118C4 1-5KVA

Detail Information
Transfer Time: 10ms(For Personal Computers) 20ma(For Home Appliances) Voltage: 230 VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) Frequency Range: 50 Hz/60 Hz (Auto Sensing)
AC Voltage Regulation (Batt. Mode): 230VAC ± 5% Efficiency (Peak): 93%
Waveform: Pure Sine Wave Standby Power Consumption: 2W
Humidity: 5% To 95% Relative Humidity(Non-condensing) Operating Temperature: 0°C To 55°C
Storage Temperature: -15°C To 60°C
High Light:

solar power inverter for home

,

home power inverter

Product Description

Wall Mounted Integrated Solar Power Inverter SSP3118C4 1-5KVA



Key Features:

1.Pure sine wave inverter

2.Cold start function

3.Auto restart while AC is recovering

4.Overload and short circuit protection

5.Optional remote panel available

6.Selectable charging current based on applications

7.Configurable AC/Solar input priority via LCD setting

8.Compatible to mains voltage or generator power

9.Smart battery charger design for optimized battery performance

10.Parallel operation with up to 6 units only available for 4KVA/5KVA

11.Selectable input voltage range for home appliances and personal computers



Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.





Applications:

Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.

Wall Mounted Integrated Solar Power Inverters SSP3118C4 1-5KVA 0



Technical Specification:

MODEL C4 2K-2460 C4 3K-2460 C4 4K-4860 C4 4K-4880 C4 5K-4860 C4 5K-4880
Rated Power 2KVA/1600W 3KVA/2400W 4KVA/3200W 4KVA/3200W 5KVA/4000W 5KVA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48VDC
Floating Charge Voltage 27 VDC 54VDC
Overcharge Protection 31VDC 62VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 1500W 3000W 4000W 3000W 4000W
MPPT Range @ Operating Voltage 30 ~ 115VDC 60 ~ 115VDC
Maximum PV Array Open Circuit Voltage 145VDC 145VDC
Maximum Solar Charge Current 60A 60A 80A 60A 80A
Maximum AC Charge Current 20/30A 30A 60A 60A 60A 60A
Maximum Charge Current 60A 60A 120A 140A 120A 140A
Maximum Efficiency 98%
Standby Power Consumption 2W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355
Net Weight (kgs) 7 7.4
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
