Waterproof 48V DC Power Supply Off Grid Solar Power System with Rectifier Module

Minimum Order Quantity : 5PCS Price : Negotiable
Packaging Details : Standard Export Carton or Wooden Packing Delivery Time : Within 15-30 days after received your deposit
Payment Terms : L/C, T/T Supply Ability : 5000PCS Per Month
Place of Origin: Shenzhen China Brand Name: SOROTEC
Certification: CE,ROHs,ISO9000 Model Number: SHW48200 Solar DC Power

Detail Information

Product Name: Off Grid Solar Power Systems Product Model: SHW48200 Solar DC Power System
DC Voltage: 48VDC Solar Controller: MPPT
Built-in: Rectifier Modular Output Current: 0-50Amp
Connected Battery: Sealed Lead Acid,AGM Or Gel Charging Mode: Bulk-Absorption-Floating
Fault Alarms: Yes Protection Function: Overload,Overcharge And Polarity Reversal
Maximum PV Array Power: 3000W Rated Input Voltage: 220VAC
Efficiency: 98% Application: Telecom,Traffic Lights,Mountains.etc
Installation: Outdoor Color: White
Doorframe Design: With Water-proof Structure OEM Produce: Available
Logo Custom: Available
High Light:

telecom dc power systems


solar system for telecom tower

Product Description

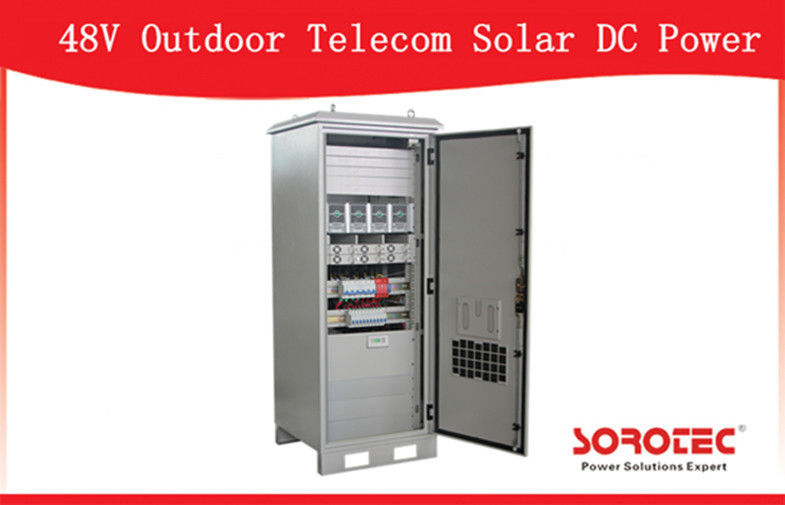

48V DC Power Supply Off Grid Solar DC Power System with Rectifier Module



Fine Dust-proof, Water-proof  Structure:
According to the overall standard of design dust-proof and water-proof Ip55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters



Key Features:
■Adopt advanced MCU microprocessor control technology.
■Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
■Reversed current protection at night, over voltage and reverse polarity protection.
■Capable of selecting different charging mode for various types of batteries.
■Protection degree:IP55
■Industy-leading power density compact size and high reliability;
■Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door
double insulation design;
■Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power;
■Suitable for outdoor installation.

Waterproof 48V DC Power Supply Off Grid Solar Power System with Rectifier Module 0

Mainly Application:


Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.



Specifications Of SHW48200 Series Solar DC Power Systems:

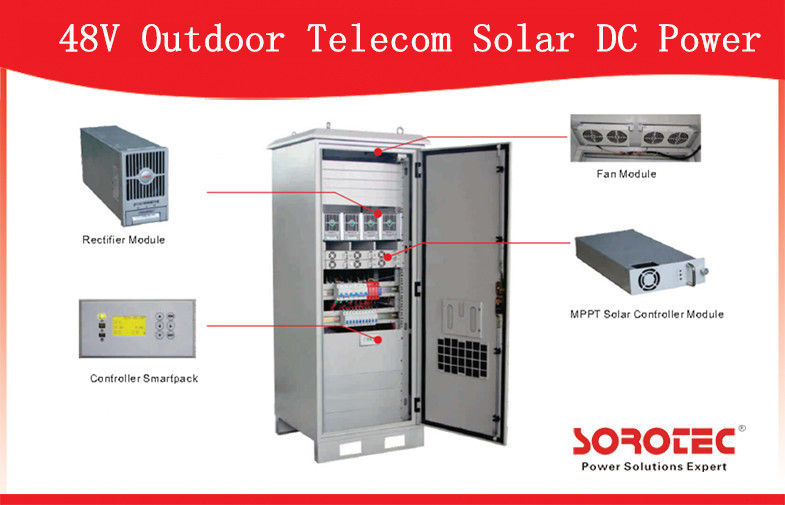

SHW48200 Solar System Rectifier Module(1-4pcs) MPPT Solar Charge Controller(1-6pcs)
MPPT Solar Charge Controller
MPPT Range @Operating Voltage 60 ~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 3000W
Maximum Input Current 50A
Nominal Battery Voltage 42-58VDC
Maximum Charge Current 50A
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m
