DC Power
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS | Packaging Details : | Standard Exported Cartons and Pallets. |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 1000PCS/Month for Energy Storage System |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | Energy Storage System |
|
Detail Information |
|||
| Model: | 3KW/4KW/5KW | Frequency Range: | 50Hz/60Hz (Auto Sensing) |
|---|---|---|---|
| Output Wave Form: | Pure Sine Wave | Parallel Function: | Yes |
| Humidity: | 0~90% RH (No Condensing) | Operating Temperature: | 0 To 50 °C |
| High Light: | advanced energy storage systems,battery energy storage system |
||
Product Description

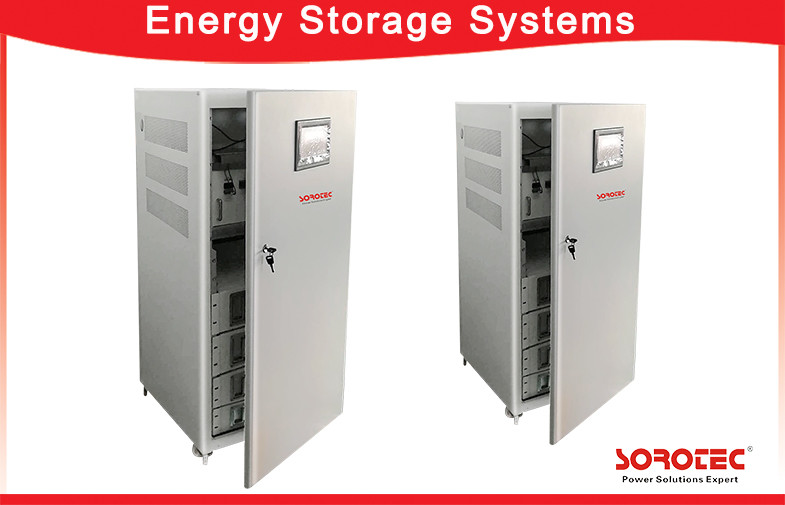

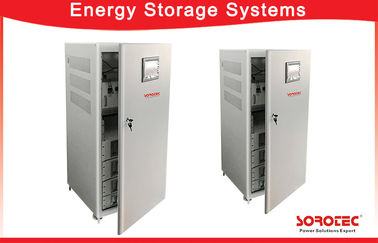

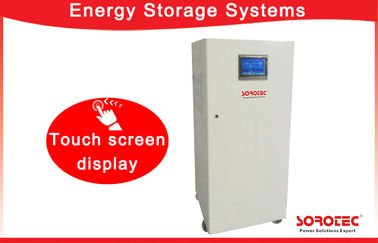

All In One Off Grid Solar Energy Storage Systems 230v 5kw Pure Sine Wave
Product Snapshot
►Model: 3-5KW
►Nominal DC Voltage: 48VDC
►Nominal Output Voltage: 220/230/240VAC
►Maximum Solar Charge Current: 80A
►Output Power Factor PF=1.0
Key Features:
1.Smart battery charger design.
2.AC charging and AC output time setting.
3.On-grid with energy storage.
4.Charging voltage and charging current timing.
5.External wi-fi device optional.
Product Description of Energy Storage System
| MODEL | Energy Storage Systems | ||
| 3KW | 4KW | 5KW | |
| Max PV Array Power | 4500W | ||
| Rated Output Power | 3000W | 4000W | 5000W |
| Maximum PV Array Open Circuit Voltage | 500VDC | ||
| MPPT Range @ Operating Voltage | 120-450VDC | ||
| MPPT Tracker Number | 1 | ||
| GRID-TIE OPERATION | |||
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-264.5VAC | ||
| Nominal Output Current | 13A | 17.4A | 21.7A |
| Power Factor | >0.99 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 96% | ||
| OFF-GRID, HYBRID OPERATION | |||
| GRID INPUT | |||
| Acceptable Input Voltage Range | 90-280VAC or 170-280 VAC | ||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||
| Maximum AC Input Current | 40A | ||
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Wave Form | Pure sine wave | ||
| Efficiency (DC to AC) | 93% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | ||
| Maximum Solar Charge Current | 80A | ||
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 80A | ||
| GENERAL | |||
| INTERFACE | |||
| Parallel Function | Yes | ||
| Communication | USB or RS232/Dry-Contact | ||
| ENVIRONMENT | |||
| Humidity | 0~90% RH (No Condensing) | ||
| Operating Temperature | 0 to 50 °C | ||
|
