Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
Minimum Order Quantity : | 10PCS | Price : | Price Negotiable |
---|---|---|---|
Packaging Details : | Standard Exported Cartons and Pallets for modified sine wave solar inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
Payment Terms : | 30% TT in advance, the balance before shipping, L/C, T/T | Supply Ability : | 5000PCS/Month for Solar Power Inverter |
Place of Origin: | China | Brand Name: | SOROTEC |
---|---|---|---|
Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C Plus 1-2kVA |
Detail Information |
|||
Product Name: | 1-2kVA Solar Power Inverter | Voltage Regulation: | 230VAC±10% |
---|---|---|---|
Input Voltage Range: | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | Frequency Regulation: | 50/60Hz±0.1Hz |
Storage Temperature: | -15°C~55°C | Elevation: | <1500m |
IP Proyection Level: | IP20 | ||
High Light: | solar power inverter for home,solar energy inverter |
Product Description

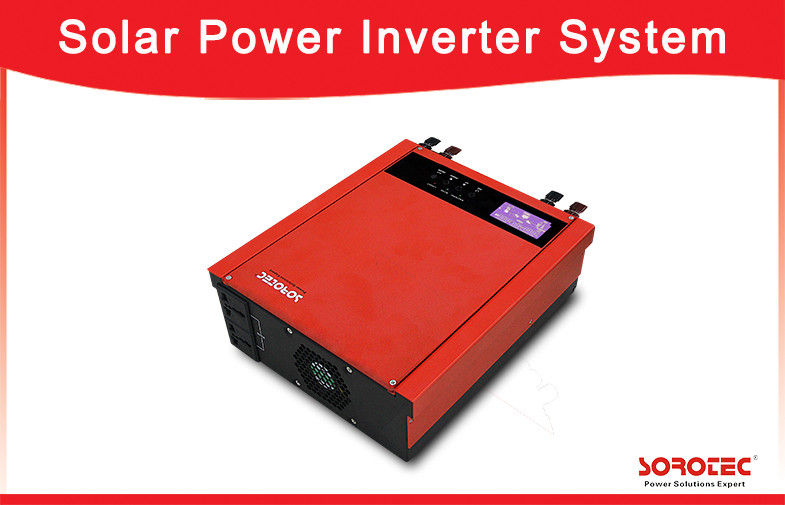

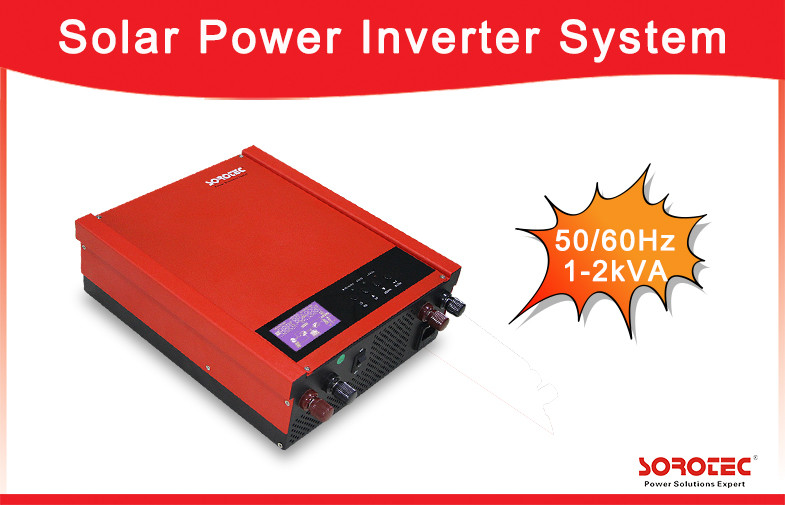

1-2kVA Optional Input Voltage Range Solar Inverter for Personal Computers
Product Snapshot:
Key Features:
1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Automatic transfer AC-DC
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.
11.LCD display, audible and visual alarm.
Product Descriptions of Solar Power Inverter
Model | SSP3111C Plus 1000-2000VA | |
1000-12 | 2000-24 | |
Capacity | 1000VA/720W | 2000VA/1440W |
Nominal Voltage | 220/230/240VAC | |
Nominal Frequency | 50/60Hz | |
Input | ||
Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | |
Frequency Range | 50/60Hz | |
Output | ||
Voltage Regulation | 230VAC±10% | |
Frequency Regulation | 50/60Hz±0.1Hz | |
Wave Form | Modified Sine wave | |
Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) | |
Battery mode to Utility | 10ms max | |
Battery mode efficiency | >80% | |
Line mode efficiency | >95% (battery full charged) | |
Battery | ||
DC Voltage | 12V | 24V |
Overcharge Protection | 16V | 32V |
Charge Current | 15A/20A | 10A |
LCD Display & LED Indicate | ||
Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds | |
Line mode 2,charge current ≦3A Green solid lighting | ||
Off-charge mode Green flashing as cycle: | ||
Battery Mode | Yellow lighting | |
Overload | Red flashing every 0.5 second | |
Fault | Red lighting | |
SOLAR CHARGE | ||
Maximum PV Array Open Circuit Voltage | 55VDC | |
PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
Maximum Charging Current | 50A | |
Maximum Efficiency | >96% | |
Standby Power Consumption | <20W | |
Environment | ||
Temperature | 0°C~40°C | |
Humidity | 5%-95% (<40°C, Non-condensing) | |
Storage Temperature | -15°C~55°C | |
Elevation | <1500m | |
IP Proyection level | IP20 | |
PHYSICAL | ||
Dimension,D×W×H (mm) | 298.9×250×105 | |
Net Weight (kgs) | 2.62 | 2.76 |
COMPANY SHOW |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
WHY CHOOSE US ? |
1.QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2.Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
FAQ |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: Shipped in 30 days after payment.
Q4: What is the warranty of inverter?
A4: One year warranty on SOROTEC-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
