Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS (Sample are Available) | Price : | Price Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for modified sine wave solar inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping, L/C, T/T | Supply Ability : | 50000PCS/Month for Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C 1000-2000VA |
|
Detail Information |
|||
| Product Name: | Off Grid Solar Power Inverter With 40A PWM | Inverter Capacity: | 1-2KVA |
|---|---|---|---|
| Nominal Voltage: | 220/230/240VAC | Dc Voltage: | 12/24VDC |
| Wave Form: | Modified Sine Wave | Built-in: | PWM Solar Controller |
| Applications: | Computers/TV/DVD/Electric Fan | ||
| High Light: | solar power inverter for home,solar energy inverter |
||
Product Description
SSP3111C Series 1000VA 2000VA Off Grid Solar Power Inverter with 40A PWM
Brief Descriptions:
SSP3111C Series is a type of off-grid solar power inverter ,which widely used to provide reliable and long time backup power supply for micro home and office equipments. its capacity from 1KVA to 2KVA modifies sine wave output for economic to use,it built-in with 40A PWM solar charge controller for high efficiency. LCD display the information in real-times and support wide and narrow input voltage range optional.
Key Features:
1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Automatic transfer AC-DC
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.
11.LCD display, audible and visual alarm.
Typical Application:
This type solar power inverter widely used to provide the reliable long time backup power supply for the household appliances office appliances (Personal computer/TV/DVD/Electric fan/FM Radio)solar power system.etc
Full Protection
Overvoltage /short circuit/ over temperature.......
Product Descriptions of Solar Inverter
| Model | SSP3111C Plus 1000-2000VA | |
| 1000-12 | 2000-24 | |
| Capacity | 1000VA/720W | 2000VA/1440W |
| Nominal Voltage | 220/230/240VAC | |
| Nominal Frequency | 50/60Hz | |
| Input | ||
| Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | |
| Frequency Range | 50/60Hz | |
| Output | ||
| Voltage Regulation | 230VAC±10% | |
| Frequency Regulation | 50/60Hz±0.1Hz | |
| Wave Form | Modified Sine wave | |
| Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) | |
| Battery mode to Utility | 10ms max | |
| Battery mode efficiency | >80% | |
| Line mode efficiency | >95% (battery full charged) | |
| Battery | ||
| DC Voltage | 12V | 24V |
| Overcharge Protection | 16V | 32V |
| Charge Current | 15A/20A | 10A |

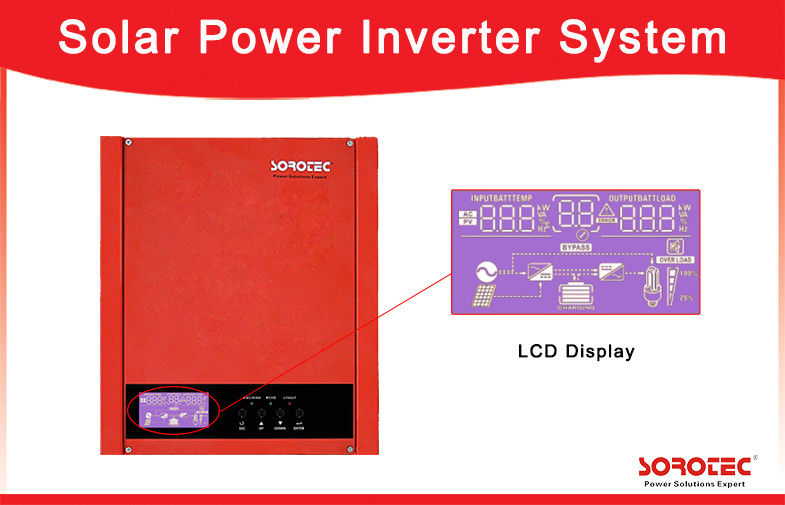

| LCD Display & LED Indicate | ||
| Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds | |
| Line mode 2,charge current ≦3A Green solid lighting | ||
| Off-charge mode Green flashing as cycle: | ||
| Battery Mode | Yellow lighting | |
| Overload | Red flashing every 0.5 second | |
| Fault | Red lighting | |
| SOLAR CHARGE | ||
| Maximum PV Array Open Circuit Voltage | 55VDC | |
| PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
| Maximum Charging Current | 50A | |
| Maximum Efficiency | >96% | |
| Standby Power Consumption | <20W | |
| Environment | ||
| Temperature | 0°C~40°C | |
| Humidity | 5%-95% (<40°C, Non-condensing) | |
| Storage Temperature | -15°C~55°C | |
| Elevation | <1500m | |
| IP Proyection level | IP20 | |
| PHYSICAL | ||
| Dimension,D×W×H (mm) | 298.9×250×105 | |
| Net Weight (kgs) | 2.62 | 2.76 |
