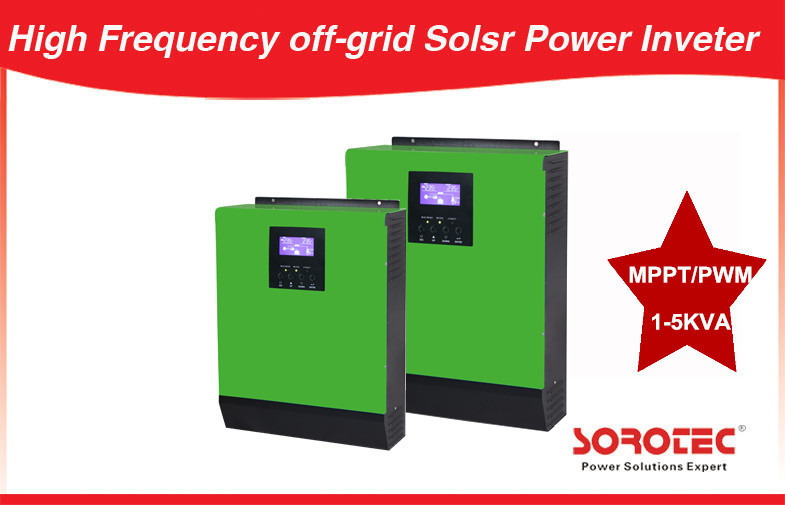

1kva 2kva 3kva 4kva 5kva solar inverter off grid for Solar Panel System

Minimum Order Quantity : 1pcs Price : 1-500 USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC /OEM
Certification: CE,ROHS,RSO9000 Model Number: SSP3118C2 1-5KVA

Detail Information

Model: Off-Grid Solar Power Inverter Capacity: 1000va-5000va
Wavaform: Pure Sine Wave Output Power Factor: 0.8
Nominal Voltage: 220/230vc Frequency: 50/60hz
Input Priority: AC/Solar Solar Charge Controller: MPPT
Application: Home Use
High Light:

solar energy inverter

,

home power inverter

Product Description



1kva 2kva 3kva 4kva 5kva solar inverter off grid for Solar Panel System





Fully Protection:



-Low battery voltage

-Over load

-Output short circuit

-Over- temperature

-Restrain surge interference,

-Eliminate noise

-Protection for thunder striking

provide the reliable power to the household appliances.



Application:

Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.





Key Features

  1. AC/Solar input priority selected
  2. High frequency inverter
  3.  Remote panel available
  4. Auto restart while AC is recovering
  5. Protection for overload and short circuit
  6. In-built MPPT solar charge controller
  7. Mains voltage or generator power available
  8. Charging current selectable  based on applications
  9. Smart  battery charger design can prolong the  use life of battery
  10. Parallel operation max up to 6 units only available for 4KVA/5KVA
  11. Optional  input voltage range for home appliances and personal computer



Technical Parameter:

MODEL C2 1K-2425 C2 2K-2425 C2 3K-2425 C2 4K-4880 C2 5K-4880
Rated Power 1KVA/800W 2KVA/1600W 3KVA/2400W 4KVA/3200W 5KVA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 4000W
MPPT Range @ Operating Voltage 30 ~ 66VDC 30 ~ 66VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145 VDC
Maximum Solar Charge Current 25A 25A 80A
Maximum AC Charge Current 20A 30A 30A 60 A
Maximum Charge Current 25A 30A 30A 140A
AC charger and solar charger can’t work at the same time.
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 6.8 7.4 11.0
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
