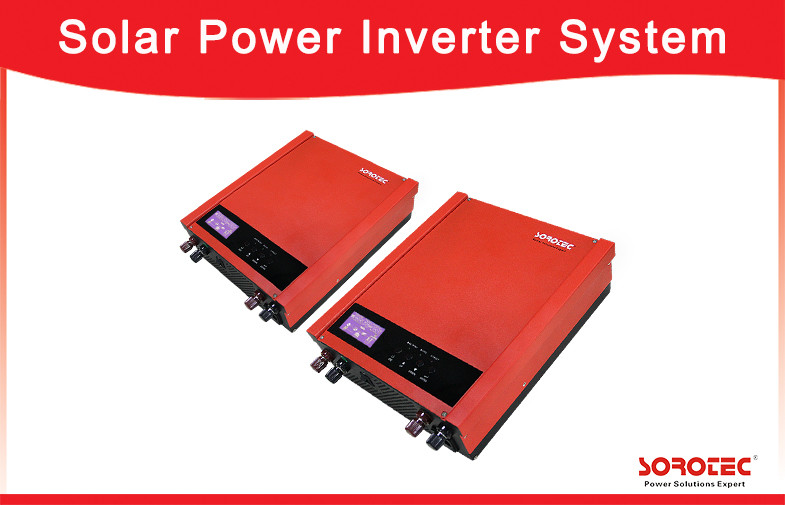

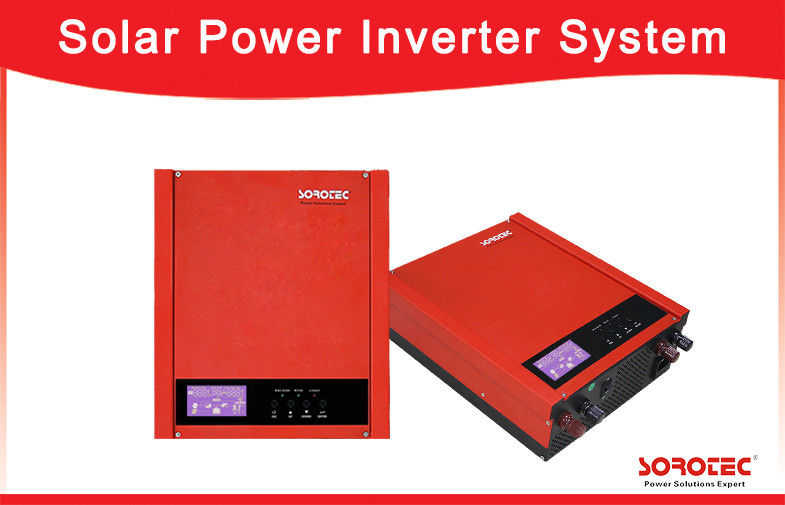

220/230/240VAC Solar Energy Inverter 2000VA Systems of Output Short Circuit Protection

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for modified sine wave solar inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping, L/C, T/T Supply Ability : 5000PCS/Month for Solar Power Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C Plus 1-2kVA

Detail Information

Product Name: 220/230/240VAC Solar Power Inverter Inverter Capacity: 1-2kVA
Battery Charge Current: 15A/20A/10A Maximum PV Array Open Circuit Voltage: 55VDC
PV Optimal Work Voltage: 15V~18Vdc/30-36Vdc Maximum Charging Current: 50A
Storage Temperature: -15°C~55°C
High Light:

solar power inverter for home

,

solar energy inverter

Product Description

220/230/240VAC Solar Power Inverter 2000VA Systems of Output Short Circuit Protection



Key Features:



1.Built-in PWM solar charge controller.

2.Modified sine wave output.

3.High frequency design.

4.Optional input voltage range.

5.Full automatic and silent operation.

6.Automatic charging.

7.Automatic transfer AC-DC

8.Over-load protection.

9.Automatic restart.

10.Three-steps intelligent charging control to recharging.

11.LCD display, audible and visual alarm.





Product Descriptions of Solar Power Inverter

Model SSP3111C Plus 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1440W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60Hz
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range)
Frequency Range 50/60Hz
Output
Voltage Regulation 230VAC±10%
Frequency Regulation 50/60Hz±0.1Hz
Wave Form Modified Sine wave
Utility to battery mode 15-20ms typical(narrow range); 40ms max(wide range)
Battery mode to Utility 10ms max
Battery mode efficiency >80%
Line mode efficiency >95% (battery full charged)
Battery
DC Voltage 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A
LCD Display & LED Indicate
Line mode Line mode 1, charge current >3A Green flashing every 2 seconds
Line mode 2,charge current ≦3A Green solid lighting
Off-charge mode Green flashing as cycle:
Battery Mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
SOLAR CHARGE
Maximum PV Array Open Circuit Voltage 55VDC
PV Optimal Work Voltage 15V~18Vdc 30-36Vdc
Maximum Charging Current 50A
Maximum Efficiency >96%
Standby Power Consumption <20W
Environment
Temperature 0°C~40°C
Humidity 5%-95% (<40°C, Non-condensing)
Storage Temperature -15°C~55°C
Elevation <1500m
IP Proyection level IP20
PHYSICAL
Dimension,D×W×H (mm) 298.9×250×105
Net Weight (kgs) 2.62 2.76





FACTORY SHOW




Factoy View.jpg





TRADE SHOW








FAQ


1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
