230VAC Modified Sine Wave output Solar Power Inverter with Over-load Protection

Minimum Order Quantity : 1PCS Inverter ( Sample Are Available) Price : Negotiable
Packaging Details : Standard Exported Cartons and Pallets for solar power inverter system Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, T/T, L/C Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C 1-2KVA

Detail Information

Product Name: Solar Power Inverter Product Capacity: 1000-2000VA
Wave Form: Modified Sine Wave Output Power Factor: 0.7
Solar Controller: 40A PWM Frequency: 50/60hz
Convertion: DC /AC Inverters Application: Solar System
Color: Red Dispaly: LCD&LED
Nominal Voltage: 230VAC Battery Voltage: 12v
High Light:

solar energy inverter

,

home power inverter

Product Description

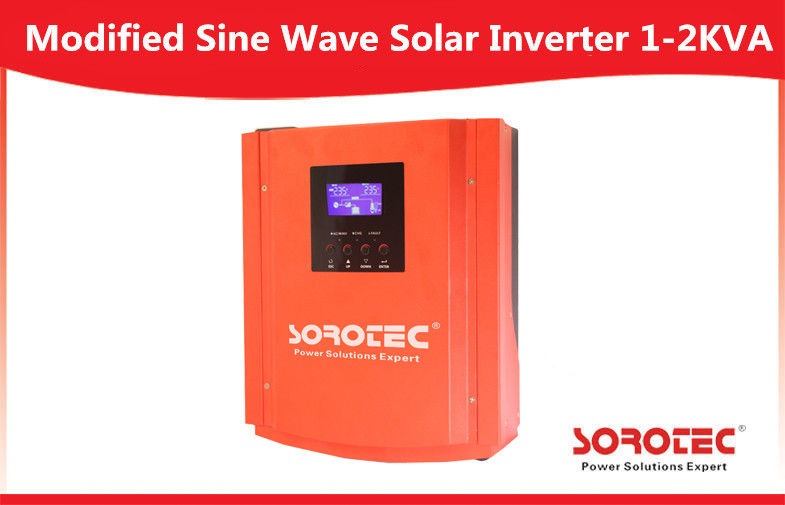

230VAC Modified Sine Wave output Solar Power Inverter with Over-load Protection



SOROTEC SSP3111C

Model SSP3111C 1-2KVA
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60HZ
Output power factor 0.7
Battery charge current 15/20A(optional)
Application Solar power

Application

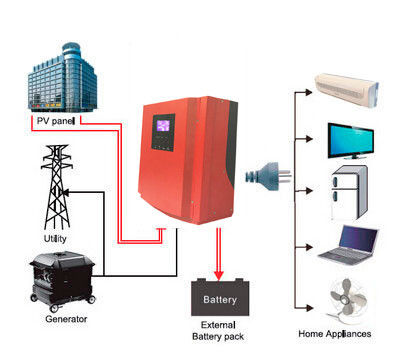

Supply the reliable long back up time power for the household appliances office appliances and solar power systems ect,

Key Features

1. Built-in PWM solar charge controller.

2.Modified sine wave output.

3.High frequency design.

4.1KVA and 2KVA are available;

5. Selectable input voltage range for home appliances and personal computers;

6. Selectable charging current based on applications

7.Optional input voltage range.

8.Full automatic and silent operation.

9.Automatic transfer AC-DC.

10.Over-load protection.

11.Automatic restart.

12.Three-steps intelligent charging control to recharging.

13.LCD display audible and visual alarm.

Full Protection

Protection for low battery voltage,overload,output short circuit and over-temperature restrain surge interference.eliminate noise,provide the reliabie power to the household appliances.

Product Description

· Modified sine wave output;

· Built-in PWM solar charge controller;

· Auto restart while AC is recovering;

· Smart battery charger design to optimize battery performance



SSP3111C  1-2KVA Solar Inverter With PWM Solar Controller

Model SSP3111C 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1300W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60HZ
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90VAC~280VAC±4%(Wide Range)
Frequency Range 50/60HZ
Output
Voltage Regulation 230VAC±2%
Frequency Regulation 50/60Hz±0.1HZ
Wave Form Modified sine wave
Utility battery mode 15-20ms typical(narrow range);40ms max (wide range)
Battery mode utility 10ms max
Battery mode >80%
Line mode >95%(battery full charged)
Battery
DC VOLTAGE 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A
LCD Display &LED Indicate
Line mode Line mode1,charge current >3A Green flashing every 2 seconds.
Line mode1,charge current <=3A Green solid lighting
Off-charge mode
Battery mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
Solar charger
Maximum PV array open circuit voltage 55VDC
PV Optimal work voltage 15-18Vdc 30-36Vdc
Maximum charging current 40A
Maximum Efficiency >96%
Standby Power consumption <20W
Environment
Temperature 0℃-40℃
Humidity 5%-95%(<40℃,Non-condensing)
Storage Temperature ~15℃~55℃
Elevation <1500M
IP Protection level IP20



230VAC Modified Sine Wave output Solar Power Inverter with Over-load Protection 0

 Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.


Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.



The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

1, QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.



2, Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

1. How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.

For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.

Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power
.......................................................................................................................................................................

2. How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the
size of the power inverter.
