2KVA Solar Power Inverters Sine Wave with LCD / LED Display , High Frequency

Minimum Order Quantity : 1PCS (Sample are Available) Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for modified sine wave solar inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping, L/C, T/T Supply Ability : 50000PCS/Month for Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C 1000-2000VA

Detail Information

Product Name: Solar Power Inverters System Inverter Power: 2KVA 1300W
Nominal Voltage: 220/230/240VAC Battey Voltage: 24VDC
Display: LCD&LED Wave Form: Modified Sine Wave
Solar Controller: PWM Built-in Applications: Solar Energy Power Supply System
High Light:

solar power inverter for home

,

solar energy inverter

Product Description

2KVA 1300W PWM Solar Inverter System Modified Sine Wave Solar Power Inverters



Brief Introduction:

Solar Power Inverter System for Off-Grid



Solar Energy or Utility(AC) Power Supply for Micro Home Appliances



High Frequency Modified Sine Wave Inverter



Battery Voltage with 1000VA /720W/12VDC,2000VA/1300W/24VDC



Charging Current with 15A/20Amp  optional for 1kva,10Amp  for 2kva



Nominal Frequency :50hz/60hz (Auto detection)



Optional Input Voltage Range :170-280VAC (Narrow Range); 90-280VAC  (Wide Range)



Work with Solar Panels/Battery/Utilities/Generators/Miocro Home Appliances





Key Features:

Modified Sine Wave output



PWM Solar Controller built-in



LCD Display and LED Display available



Optional input voltage range



Automatic changing AC-DC



Auto-charging &Auto-restart



3-steps intelligent charging control to recharging.



LCD display, audible and visual alarm



Charging priorities optional for PV/Utilities



High frequency design





Inverter Functions

This type solar power inverter widely used to provide the reliable long time backup power supply for the household appliances office appliances (Personal computer/TV/DVD/Electric fan/FM Radio)solar power system.etc



Product Descriptions of Solar Inverter



MODEL SSP3111C 1000-2000VA
CAPACITY VA/W 1000VA/720W 2000VA/1300W
NOMINAL BATTERY VOLTAGE 12VDC 24VDC
LINE MODE
INPUT Nominal Voltage 230VAC
Voltage Range 170-280VAC (Narrow Range)
90-280VAC (Wide Range)
OUTPUT Voltage 230VAC
Frequency 50Hz or 60Hz
Output Waveform Following the Utility
EFFICIENCY >95% (full R load, battery full charged)
TRANSFER TIME 15ms Typical, 40ms Max.
BACKUP MODE
OUTPUT Voltage 230VAC (+10% / -18%)
Frequency 50Hz or 60Hz (Auto detection)
Output Waveform Modified Sine-wave
EFFICIENCY   >80%
OVERLOAD PROTECTION 1min@>110%,20s@>120%,0s@>150%
PROTECTION Discharge, over-charged, over-loading, over-temperature, short-circuit protection
BATTERY CHARGER (powered by AC)
CHARGING ALGORITHM 3-step charging
AC CHARGING MODE 15 Ampor 20Amp Selectable 10Amp
FLOATING CHARGING VOLTAGE 13.7V 27.4V
OVERCHARGING VOLTAGE 16V 32V
SOLAR BATTERY CHARGER
MAX. INPUT POWER 450W 900W
CHARGING CURRENT 40Amp
NOMINAL BATERY VOLTAGE 12V 24V
OPTIMAL WORK VOLTAGE RANGE 15V~18V 30V~36V
MAX. PV INPUT VOLTAGE 55V
MAX. PV INPUT CURRENT 40 Amp
GENERAL
PHYSICAL Dimension (DxWxH) 275mm*226mm*85mm
Net Weight (kg) 2.62 2.76
ENVIRONMENT Operating Environment 0- 50°C, 5%-90 % relative humidity (non-condensing)
StorageEnvironment -15°C to 55°C, 5% to 95% humidity (non-condensing)
Noise Level Less than 50dB

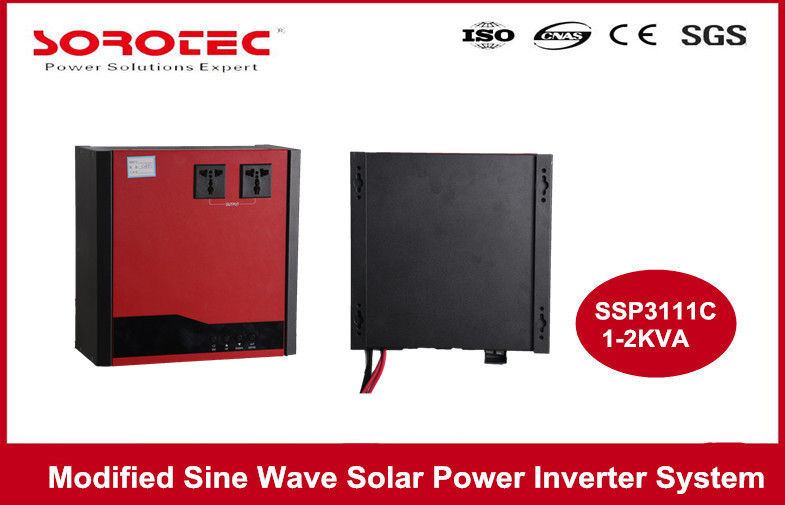

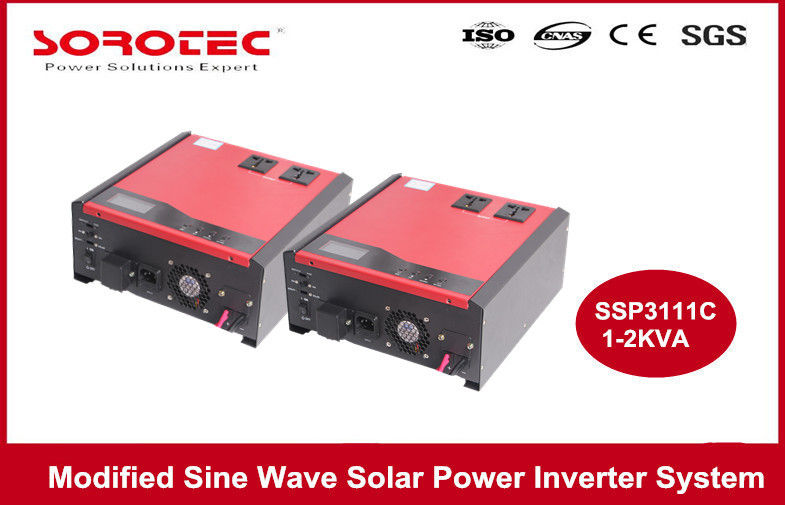

Product Picture

2KVA Solar Power Inverters Sine Wave with LCD / LED Display , High Frequency 0
