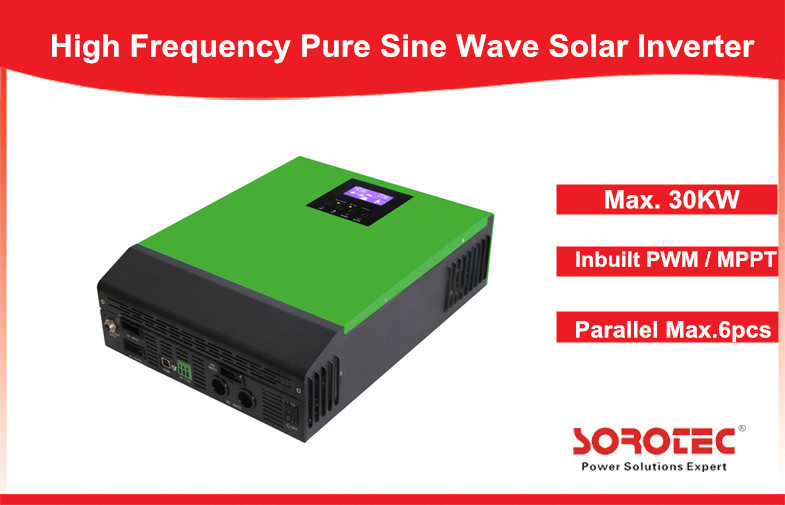

3KVA 2400W 24V DC to AC Solar Power Inverters MPPT Solar Charge Controller

Minimum Order Quantity : 5PCS Price : 1-500 USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC /OEM
Certification: CE,ROHS,RSO9000 Model Number: SSP3118C 1000-5000VA

Detail Information

Product: Solar Inverter Capacity: 3KVA/2400W
Wavaform: Pure Sine Wave Solar Controller: PWM/ MPPT
Parallel Function: Max.6 Units For 4K/5K Application: Fridge
DC To AC: Off Grid Inverter Color: Green
Battery Voltage: 24VDC Transfer Time: 10ms
High Light:

solar power inverter for home


solar energy inverter

Product Description


Efficiency 3KVA 2400W 24V DC to AC Solar Power Inverters MPPT Charge Controller


Brief Introducuction

SSP3118C 1000VA-5000VA Series Off-Grid Solar Power Inverter Special for Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.



Key Features

  1. Remote panel available
  2. Charging current selectable
  3. Smart battery charger design
  4. Selectable input voltage range
  5. Standard output power factor 0.8
  6. Auto-restart while AC is recovering
  7. MPPT/PWM solar charge controller
  8. Support mains voltage or generator power
  9. Parallel operation Max. 6 units only for 4K/5K


Fully Protection:

Low battery voltage/Over load/Output short circuit/Over- temperature/Restrain surge interference/Eliminate noise/Protection for thunder striking



Technical Parameter:

MODEL C2 1K-2425 C2 2K-2425 C2 3K-2425 C2 4K-4880 C2 5K-4880
Rated Power 1KVA/800W 2KVA/1600W 3KVA/2400W 4KVA/3200W 5KVA/4000W
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 31 VDC 60 VDC
Maximum PV Array Power 600W 600W 4000W
MPPT Range @ Operating Voltage 30 ~ 66VDC 30 ~ 66VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145 VDC
Maximum Solar Charge Current 25A 25A 80A
Maximum AC Charge Current 20A 30A 30A 60 A
Maximum Charge Current 25A 30A 30A 140A
AC charger and solar charger can’t work at the same time.
Maximum Efficiency 98%
Standby Power Consumption 2 W
Dimension, D x W x H (mm) 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 6.8 7.4 11.0
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
