3Kva 24Vdc To 120Vac Off Grid Solar Inverter with 60A Mppt Solar Charger

Minimum Order Quantity : 2 Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3118C

Detail Information

Pure Sine Wave: 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) AC Voltage Regulation (Batt. Mode): 230VAC ± 5 %
Humidity: 5% To 95% Relative Humidity(Non-condensing) Operating Temperature: -20°C - 55°C
Voltage: 230 VAC Transfer Time: 10 Ms (For Personal Computers) 20 Ms (For Home Appliances)
Waveform: Pure Sine Wave
High Light:

solar energy inverter

,

home power inverter

Product Description

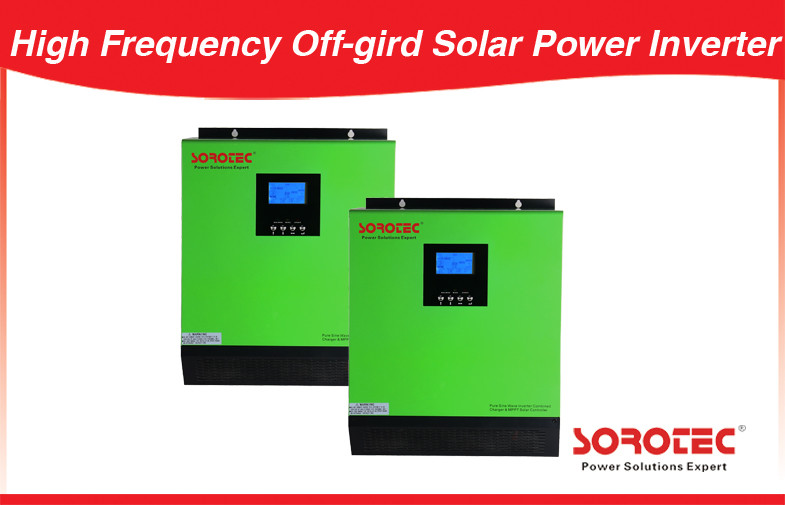

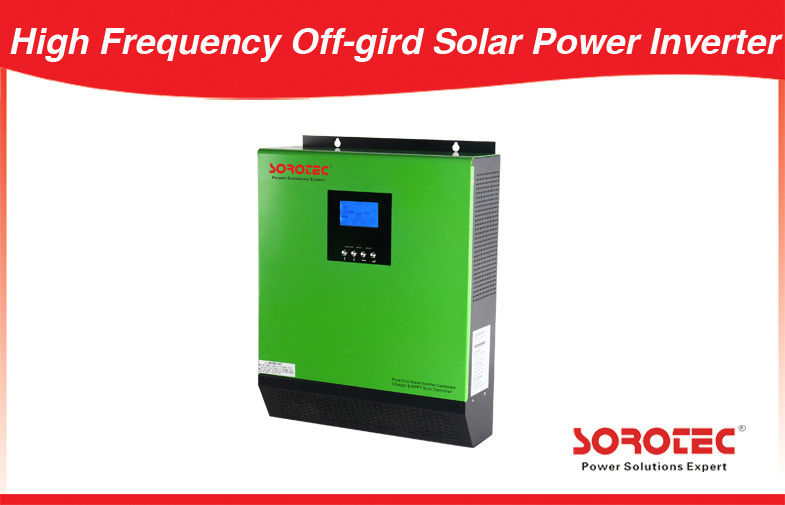

3Kva 24Vdc To 120Vac Off Grid Solar Inverter with 60A Mppt Solar Charger





Key Features:

1. Pure sine wave inverter

2. Cold start function

3. Remote panel available

4. Auto restart while AC is recovering

5. Overload and short circuit protection

6. Compatible to mains voltage or generator power

7. Selectable charging current based on applications

8. Configurable AC/Solar input priority via LCD setting

9. Built-in MPPT/PWM (Optional) solar charge controller

10. Smart battery charger design for optimized battery performance

11. Parallel operation with up to 6 units only available for 4KVA/5KVA

12. Selectable input voltage range for home appliances and personal computers





Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home

appliances.







Applications:

Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.


3Kva 24Vdc To 120Vac Off Grid Solar Inverter with 60A Mppt Solar Charger 0

Technical Specification:
MODEL C1 1K-1250 C1 2K-2450 C1 3K-2450 C1 4K-4850 C1 5K-4850
Rated Power 1000VA / 800W 2000VA/1600W 3000VA / 2400W 4000VA / 3200W 5000VA / 4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15.5 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 50VDC 60VDC 105VDC
Standby Power Consumption 1 W 2 W 2W
Maxmum Solar Charge Current 50A 50A 50 A
Maximum AC Charge Current 20 A 30 A 60 A
Maximum Charge Current 50 A 50 A 110 A
PHYSICAL
Dimension, D x W x H (mm) 95 x 240 x 316 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 5 6.4 6.9 9.8 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C



MODEL C2 1K-2425 C2 2K-2425 C2 3K-2425 C2 4K-4880 C2 5K-4880
Rated Power 1KVA/800W 2KVA/1600W 3KVA/2400W 4KVA/3200W 5KVA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 4000W
MPPT Range @ Operating Voltage 30 ~ 66VDC 30 ~ 66VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145 VDC
Maximum Solar Charge Current 25A 25A 80A
Maximum AC Charge Current 20A 30A 30A 60 A
Maximum Charge Current 25A 30A 30A 140A
AC charger and solar charger can’t work at the same time.
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 6.8 7.4 11.0
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C



MODEL C3 1.5K-2440 C3 3K-2440
Rated Power 1500VA/1200W 3000VA/2400W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 3000VA 6000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 32 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 1000W
MPPT Range @ Operating Voltage 30 VDC ~ 80 VDC
Maximum PV Array Open Circuit Voltage 100 VDC
Maximum Solar Charge Current 40A
Maximum AC Charge Current 60A
Maximum Charge Current 100A
Maximum Efficiency 98%
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355
Net Weight (kgs) 7
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -30°C to 60°C



MODEL C4 2K-2460 C4 3K-2460 C4 4K-4860 C4 4K-4880 C4 5K-4860 C4 5K-4880
Rated Power 2KVA/1600W 3KVA/2400W 4KVA/3200W 4KVA/3200W 5KVA/4000W 5KVA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48VDC
Floating Charge Voltage 27 VDC 54VDC
Overcharge Protection 31VDC 62VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 1500W 3000W 4000W 3000W 4000W
MPPT Range @ Operating Voltage 30 ~ 115VDC 60 ~ 115VDC
Maximum PV Array Open Circuit Voltage 145VDC 145VDC
Maximum Solar Charge Current 60A 60A 80A 60A 80A
Maximum AC Charge Current 20/30A 30A 60A 60A 60A 60A
Maximum Charge Current 60A 60A 120A 140A 120A 140A
Maximum Efficiency 98%
Standby Power Consumption 2W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355
Net Weight (kgs) 7 7.4
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
