50/60HZ Full Automatic and Silent Operation Solar Power Inverter System

Minimum Order Quantity : 1PCS Inverter ( Sample Are Available) Price : Negotiable
Packaging Details : Standard Exported Cartons and Pallets for solar power inverter system Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, T/T, L/C Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C 1-2KVA

Detail Information

Product Model: SSP3111C Product: 1-2KVA
Wave Form: Modified Sine Wave Output Power Factor: 0.7
Solar Controller: 40A PWM Controller Nominal Frequency: 50/60HZ
Convertion: DC /AC Inverters Application: Electric Fan
Color: Red Dispaly: LCD
Nominal Voltage: 230VAC Battery Voltage: 12v
Application: Solar Power Bettery Current: 15/20A(Optional)
Battery Mode: >95% Battery Transfer Time: 15-20ms
Fault: Red Lighting Evironment Temperature: 0℃~40℃
High Light:

solar energy inverter

,

home power inverter

Product Description

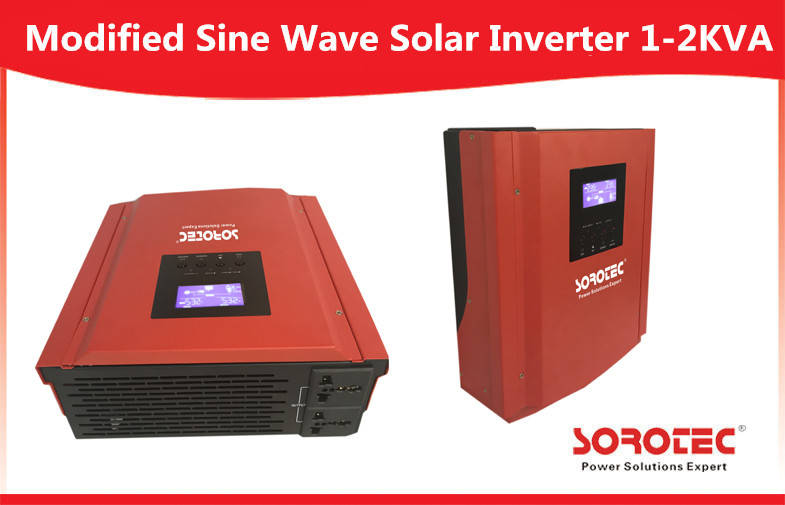

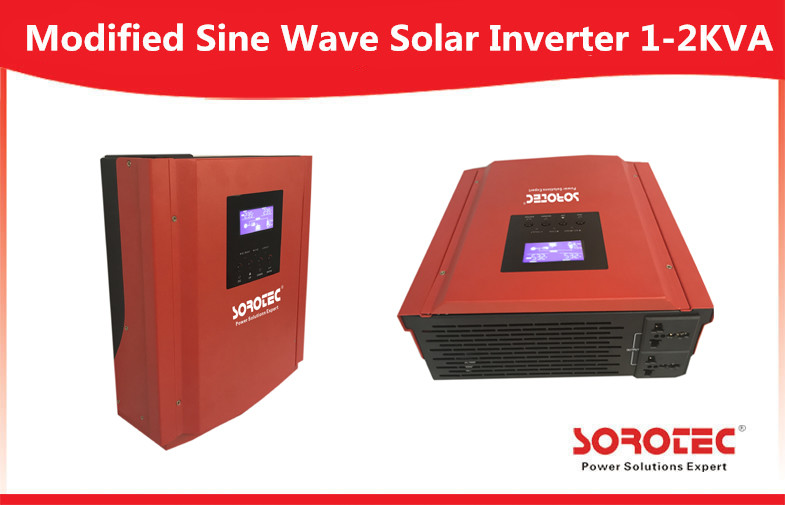

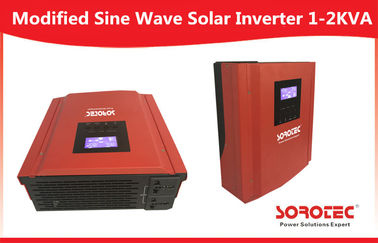

50/60HZ Full Automatic and Silent Operation Solar Power Inverter System

SSP3111C Solar Power Inverter Product  Brif

SSP3111C series is a multi-function off-grid type solar power inverter for self- consumption,which capacity from 1kva to 2kva,Modified Sine Wave output ,output power factor 0.7 ,built-in with PWM solar charge controller,It power sourcing from Utility,battery ,PV.And supports charging priorities for Utility, PV, Utility & PV.Remote control with RS232/USB,LCD display information in real-times. Eliminate noise protection for thunder striking,widely used to provide the reliable and long time backup power supply for home office appliances and solar power systems.

SSP3111C Solar Power Inverter Key Featurs:

1.Off-Grid Solar Power Inverters

2.Modified Sine Wave Inverter

3.40Amp PWM Solar Controller

4.Optional input voltage range

5.Auto-charging &Auto-restart

6.3-steps intelligent charging control

7.LCD display, audible and visual alarm

8.Priorities optional for PV/Utilities

SOROTEC SSP3111C

Model SSP3111C 1-2KVA
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60HZ
Output power factor 0.7
Battery charge current 15/20A(optional)
Application Solar power



SSP3111C Solar Power Inverter safety

to circumvent the PID effect of security,the initiative to prevent electric shock and isolation 29db noise,electromagnectic radiation is small,do not affect human health,

No fuse design,avoid fire hazard caused by the failures of dc side.

Natural cooling,IP65 protection class.

The highest level of lightning protection,the built-in ac/dc lightning protection module.



SSP3111C Solar Power Inverter Intelligent management

Three-steps intelligent charging control to recharging.reduce group series of fault location time by 80%.

Built-in PWM solar charge controller.

Multimachine parallel adaptive intelligent power grid,power quality,to better meet the requirements of power grid access.

Support for remote monitoring and network management functions.

SSP3111C Solar Power Inverter Full Protection

Protection for low battery voltage,overload,output short circuit and over-temperature restrain surge interference.eliminate noise,provide the reliabie power to the household appliances.



SSP3111C Solar Power Inverter Application

Supply the reliable long back up time power for the household appliances office appliances and solar power systems ect,

SSP3111C  1-2KVA Solar Inverter With PWM Solar Controller

Model SSP3111C 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1300W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60HZ
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90VAC~280VAC±4%(Wide Range)
Frequency Range 50/60HZ
Output
Voltage Regulation 230VAC±2%
Frequency Regulation 50/60Hz±0.1HZ
Wave Form Modified sine wave
Utility battery mode 15-20ms typical(narrow range);40ms max (wide range)
Battery mode utility 10ms max
Battery mode >80%
Line mode >95%(battery full charged)
Battery
DC VOLTAGE 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A
LCD Display &LED Indicate
Line mode Line mode1,charge current >3A Green flashing every 2 seconds.
Line mode1,charge current <=3A Green solid lighting
Off-charge mode
Battery mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
Solar charger
Maximum PV array open circuit voltage 55VDC
PV Optimal work voltage 15-18Vdc 30-36Vdc
Maximum charging current 40A
Maximum Efficiency >96%
Standby Power consumption <20W
Environment
Temperature 0℃-40℃
Humidity 5%-95%(<40℃,Non-condensing)
Storage Temperature ~15℃~55℃
Elevation <1500M
IP Protection level IP20



50/60HZ Full Automatic and Silent Operation Solar Power Inverter System 0

                                   Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.


Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.



The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



                                        FAQ

1.Output wave when take the full load

This product provide pure sine wave output when take the resistance load.

...................................................................................................................................................

2.About THDI

Because this series product is not rectifier function, so can’t make the THDI when use it.

...................................................................................................................................................

3. About service

We are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most

perfect after- sales service.

...................................................................................................................................................

4.About SORO technology

We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.

...................................................................................................................................................
