Full Automatically 1000Va 720W Off Grid Solar Power Inverter for Computer

Minimum Order Quantity : 1PCS Inverter ( Sample Are Available) Price : Negotiable
Packaging Details : Standard Exported Cartons and Pallets for solar power inverter system Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, T/T, L/C Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C 1-2KVA

Detail Information

Product Name: Off Grid Solar Power Inverter Capacity: 1000VA/720W
Wave Form: Modified Nominal Voltage: 220/230/240VAC
Elevation: <1500m Auto Transfer: DC -AC
Color: Red Color
High Light:

solar power inverter for home

,

home power inverter

Product Description

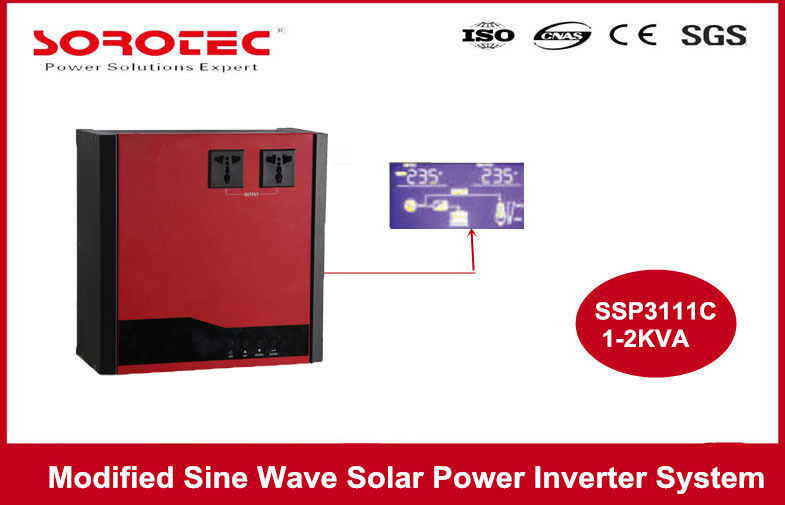

Full Automatically 1000VA 720W Off Grid Solar Power Inverter for Computer

Solar Power Inverter brief Introduction

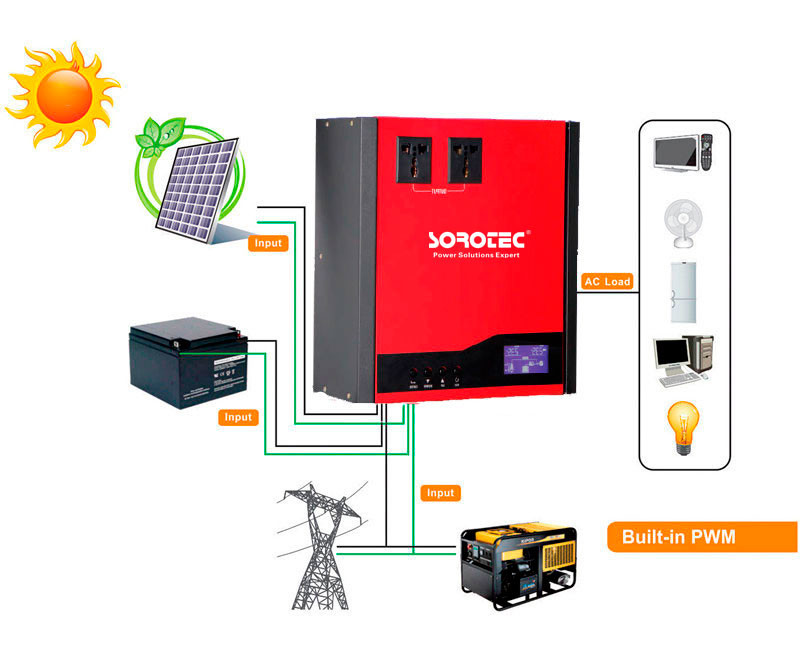

SSP311C Series 1-2000VA, 1 ph in/ph out,micro solar  power inverter Widely used to provide the reliable power to home appliances. such as:TV,Personal computer.DVD,Fan,Light,and so on.Built-in PWM solar charge controller .



Product features:

1. High frequency design.
2. Optional input voltage range.
3. Support generator power
4. Three-steps intelligent charging
5. LCD display ,overload protection
6. Mains/solar output priority optional

7. Off-Grid solar power inverters
8. Buit in with 10 or 20 Amp charger

9. Output power factor is 0.7

10. modified sine wave output
11. Mains/solar/ mains & solar charging priorities

 Product Descriptions of  Solar Inverter with PWM Solar Controller



MODEL IG3111C 1000-2000VA (without solar controller) SSP3111C 1000-2000VA (with solar controller)
 CAPACITY VA/W 1000VA/700W 1200VA/900W 2000VA/1500W 1000VA/720W 2000VA/1300W
 NOMINAL BATTERY VOLTAGE 12VDC 12VDC 24VDC 12VDC 24VDC
 LINE MODE
 INPUT Nominal Voltage 230VAC
Voltage Range 170-280VAC (Narrow Range)
90-280VAC (Wide Range)
OUTPUT Voltage 230VAC
Frequency 50Hz or 60Hz
Output Waveform Following the Utility
 EFFICIENCY >95% (full R load, battery full charged)
 TRANSFER TIME 15ms Typical, 40ms Max.
BACKUP MODE
 OUTPUT Voltage 230VAC (+10% / -18%)
Frequency 50Hz or 60Hz (Auto detection)
Output Waveform Modified Sine-wave
 EFFICIENCY   >80%
 OVERLOAD PROTECTION 1min@>110%,20s@>120%,0s@>150%
 PROTECTION Discharge, over-charged, over-loading, over-temperature, short-circuit protection
BATTERY CHARGER (powered by AC)
 CHARGING ALGORITHM 3-step charging
 AC CHARGING MODE 15 Ampor 20Amp Selectable 10Amp 15 Ampor 20Amp Selectable 10Amp
 FLOATING CHARGING VOLTAGE 13.7V 27.4V 13.7V 27.4V
 OVERCHARGING VOLTAGE 16V 32V 16V 32V
SOLAR BATTERY CHARGER
 MAX. INPUT POWER Non 450W 900W
 CHARGING CURRENT Non 40Amp
 NOMINAL BATERY VOLTAGE Non 12V 24V
 OPTIMAL WORK VOLTAGE RANGE Non 15V~18V 30V~36V
 MAX. PV INPUT VOLTAGE Non 55V
 MAX. PV INPUT CURRENT Non 40 Amp
 GENERAL
 PHYSICAL  Dimension  (DxWxH) 275mm*226mm*85mm
 Net Weight (kg) 2.05 2.15 2.2 2.62 2.76
 ENVIRONMENT Operating Environment 0- 50°C, 5%-90 % relative humidity (non-condensing)
 StorageEnvironment -15°C to 55°C, 5% to 95% humidity (non-condensing)
 Noise Level Less than 50dB
