Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Price : | Price Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for modified sine wave solar inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping, L/C, T/T | Supply Ability : | 5000PCS/Month for Solar Power Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C Plus 1-2kVA |
|
Detail Information |
|||
| Product Name: | High Frequency Solar Power Inverter | Inverter Capacity: | 1-2kVA |
|---|---|---|---|
| Battery Mode To Utility: | 10ms Max | Battery Mode Efficiency: | >80% |
| Line Mode Efficiency: | >95% (battery Full Charged) | Battery DC Voltage: | 12V/24V |
| Temperature: | 0°C~40°C | ||
| Highlight: | solar energy inverter,home power inverter |
||
Product Description

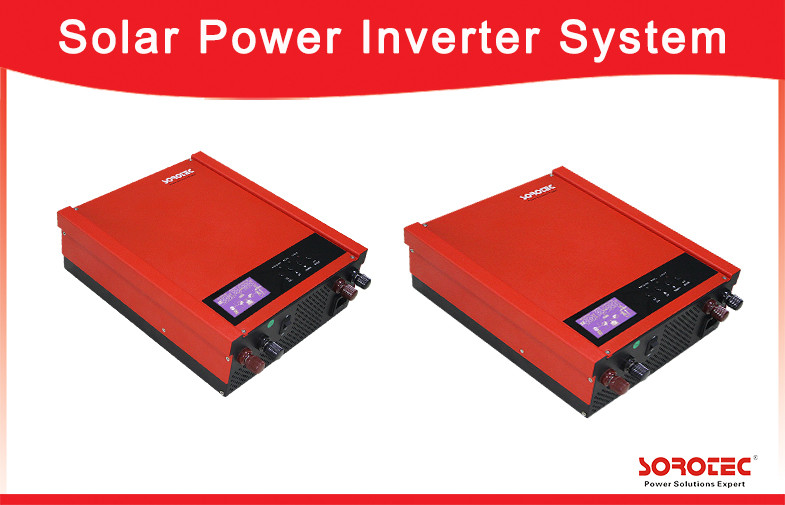

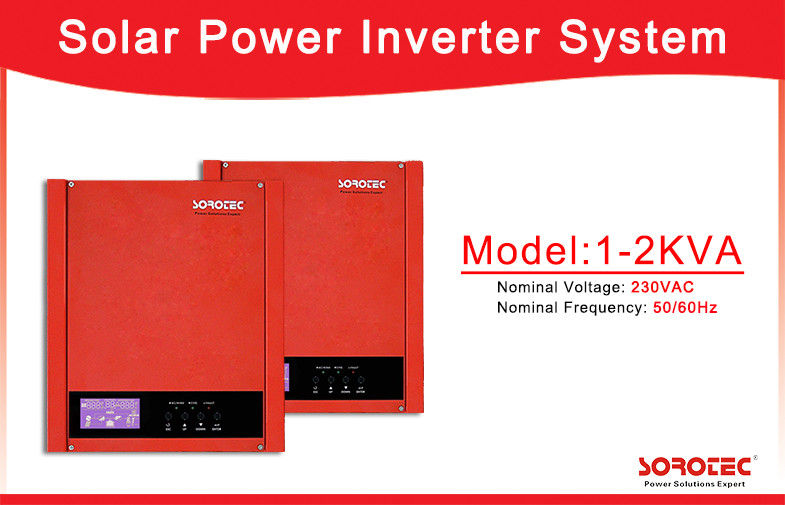

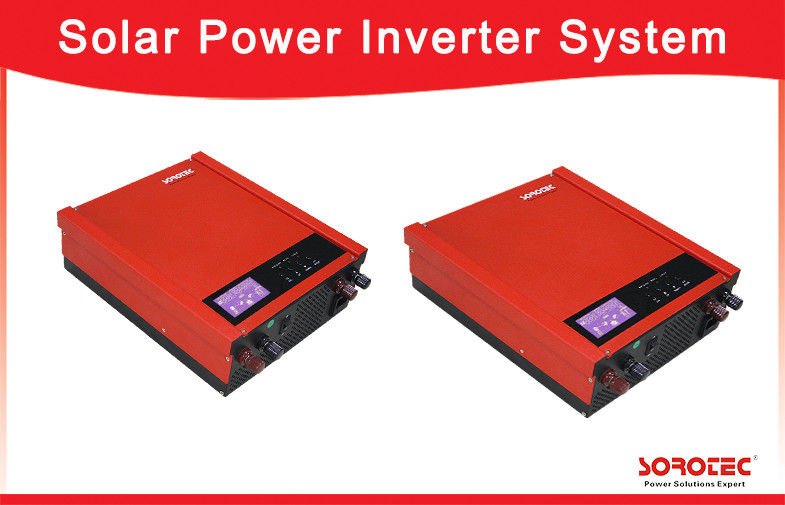

High Frequency 50Hz/60Hz Solar Power Inverter with Over-load Protection
Key Features:
1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Automatic transfer AC-DC
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.
11.LCD display, audible and visual alarm.
Full Protection:
Protection for low battery voltage,overload,output short circuit and overtemperature restrain surge interference,eliminate noise,provide the reliable power to the household appliances.
Product Descriptions of Solar Power Inverter
| Model | SSP3111C Plus 1000-2000VA | |
| 1000-12 | 2000-24 | |
| Capacity | 1000VA/720W | 2000VA/1440W |
| Nominal Voltage | 220/230/240VAC | |
| Nominal Frequency | 50/60Hz | |
| Input | ||
| Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | |
| Frequency Range | 50/60Hz | |
| Output | ||
| Voltage Regulation | 230VAC±10% | |
| Frequency Regulation | 50/60Hz±0.1Hz | |
| Wave Form | Modified Sine wave | |
| Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) | |
| Battery mode to Utility | 10ms max | |
| Battery mode efficiency | >80% | |
| Line mode efficiency | >95% (battery full charged) | |
| Battery | ||
| DC Voltage | 12V | 24V |
| Overcharge Protection | 16V | 32V |
| Charge Current | 15A/20A | 10A |
| LCD Display & LED Indicate | ||
| Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds | |
| Line mode 2,charge current ≦3A Green solid lighting | ||
| Off-charge mode Green flashing as cycle: | ||
| Battery Mode | Yellow lighting | |
| Overload | Red flashing every 0.5 second | |
| Fault | Red lighting | |
| SOLAR CHARGE | ||
| Maximum PV Array Open Circuit Voltage | 55VDC | |
| PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
| Maximum Charging Current | 50A | |
| Maximum Efficiency | >96% | |
| Standby Power Consumption | <20W | |
| Environment | ||
| Temperature | 0°C~40°C | |
| Humidity | 5%-95% (<40°C, Non-condensing) | |
| Storage Temperature | -15°C~55°C | |
| Elevation | <1500m | |
| IP Proyection level | IP20 | |
| PHYSICAL | ||
| Dimension,D×W×H (mm) | 298.9×250×105 | |
| Net Weight (kgs) | 2.62 | 2.76 |
| THREE STRATEGIC INDUSTRIES |
| WHY CHOOSE US ? |
1.QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2.Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
| FAQ |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: Shipped in 30 days after payment.
Q4: What is the warranty of inverter?
A4: One year warranty on SOROTEC-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
