Hybrid On Off Grid Solar Power Inverters with 80A MPPT Controller

Minimum Order Quantity : 1PCS Solar Power Inverters Available Price : 100-1000
Packaging Details : Standard Exported Cartons and Pallets for Solar Power Inverters Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information

Product Name: Hybrid On Off Grid Solar Power Inverters Capacity: 3KVA /4000W
Solar Controller: 80A MPPT Output Voltage: 220/230/240VAC
Input Frequency: 50HZ/60HZ Application: Solar System
Output Voltage Range: 184-26.5VAC Max Efficiency: 90%
Output Waveform: Pure Sine Wave
High Light:

solar energy inverter


home power inverter

Product Description

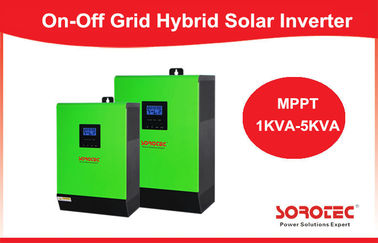

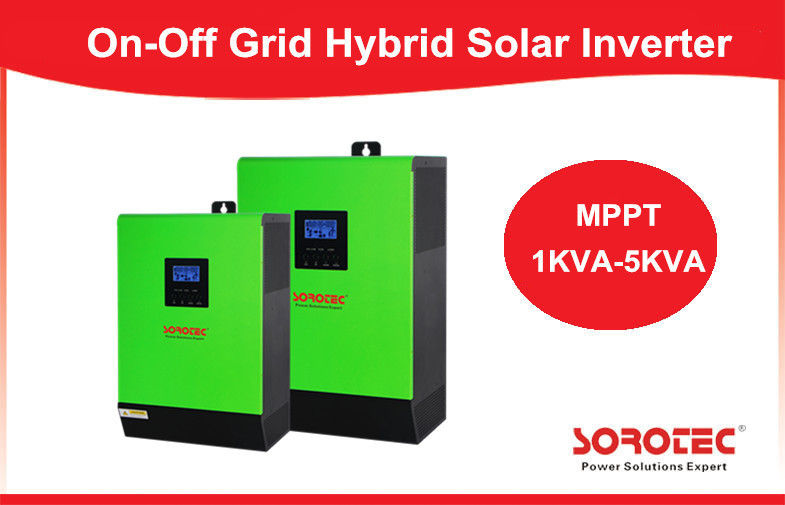

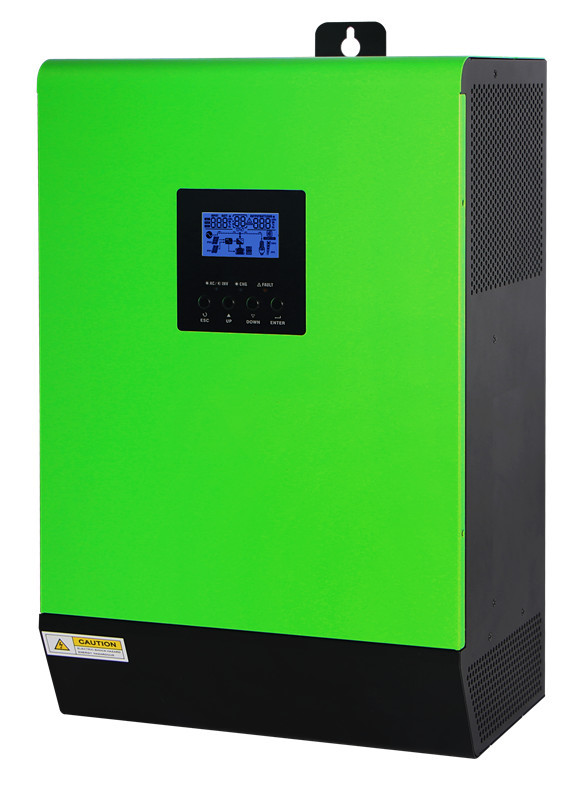

Hybrid On Off Grid Solar Power Inverters with 80A MPPT Controller


On Grid-Off Grid Hybrid Solar Power Inverter


capacity from 1kva to 5kva,

Output power factor up to 1.0,

High frequency pure sine wave inverter,

Built-in max.120A MPPT solar charge controller,

For Self-consumption and Feed-in to the grid.


Product Descriptions:


Programmable supply priority for PV, Battery or Grid,

User-adjustable charging current and voltage,

Battery Pack with energy storage function,

Monitoring software for real-time status display and control,

Parallel operation up to 6 units only for 3K/4K/5K models,

Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup.




home and office equipments such as:fridge,air-conditional,TV,DVD,Electric fan,Lights.etc.


Protection Function

Low battery voltage,Over load,Output short circuit ,Over- temperature,Restrain surge interference,Eliminate noise,Protection for thunder striking,provide the reliable power to the home appliances.


Wall Mounted Integrated Solar Power Inverter System Technical Specifications

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 90%
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50
