Hybrid On Off Grid Solar Power Inverters with 80A MPPT Controller with Parallel Founction

Minimum Order Quantity : 1PCS Solar Power Inverters Available Price : 100-1000
Packaging Details : Standard Exported Cartons and Pallets for Solar Power Inverters Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information

Product Name: Hybrid On Off Grid Solar Power Inverters Solar Controller: 80A MPPT
Output Voltage: 220/230/240VAC Input Frequency: 50HZ/60HZ

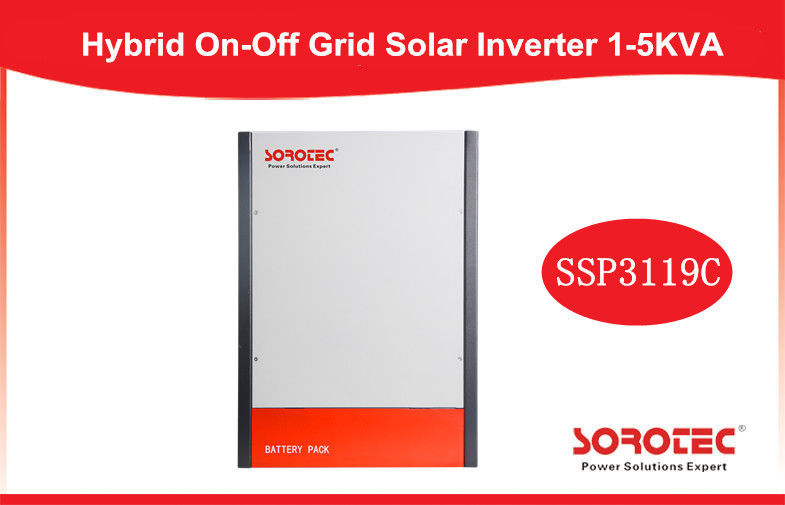

Accesories: Battery Pack Application: Solar System
Model: SSP3119C Output Wave Form: Pure Sin Wave
High Light:

solar energy inverter


home power inverter

Product Description

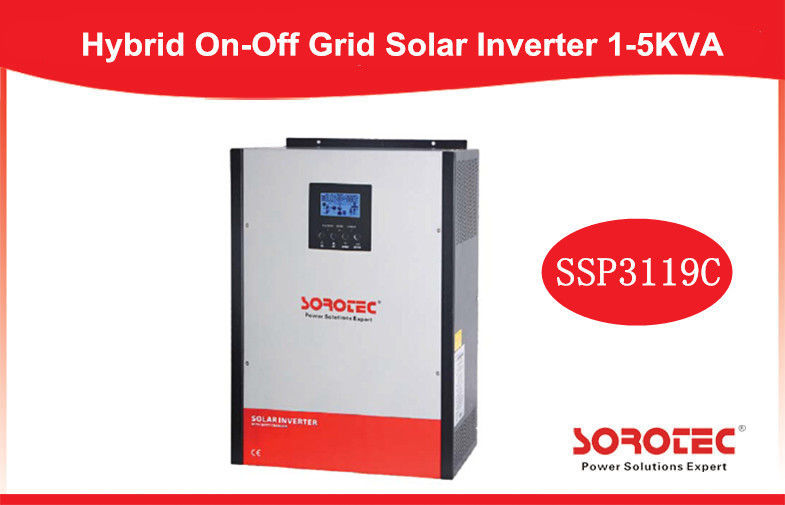

Hybrid On Off Grid Solar Power Inverters with 80A MPPT Controller



Quick Detailes:

High frequency Pure sine wave output


Grid-Tie off-grid and grid-tie with backup


Maximum Conversion Efficiency(DC/AC):90%


Output Power Factor 1.0


3Kva 4Kva 5Kva with parallel function


Low battery voltage,Over load,Output short circuit


Key Features:

1. On Grid-Off Grid Hybrid Solar Power Inverter


2. Built-in Max.120A MPPT Solar Charge Controller


3. Output power factor up to 1.0 can take more loads


4. High frequency design pure sine wave output


5. Special for Self-consumption and Feed-in to the grid


6. Programmable supply priority priorities for PV,Battery or Grid


7. User-adjustable charging current and voltage


8. Parallel operation max up to 6 units for 3KVA-5KVA


9.Programmable multiple operation modes:Grid-tie,Off-Grid and grid-tie with backup


10.Monitoring software for real-time status display and control


Typical Applications:

Widely application in home and office equipments such as:fridge,air-conditional,TV,DVD,Electric fan,Lights.etc.



Wall Mounted Integrated Solar Power Inverter System Technical Specifications

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 90%
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50


Hybrid On Off Grid Solar Power Inverters with 80A MPPT Controller with Parallel Founction 0
