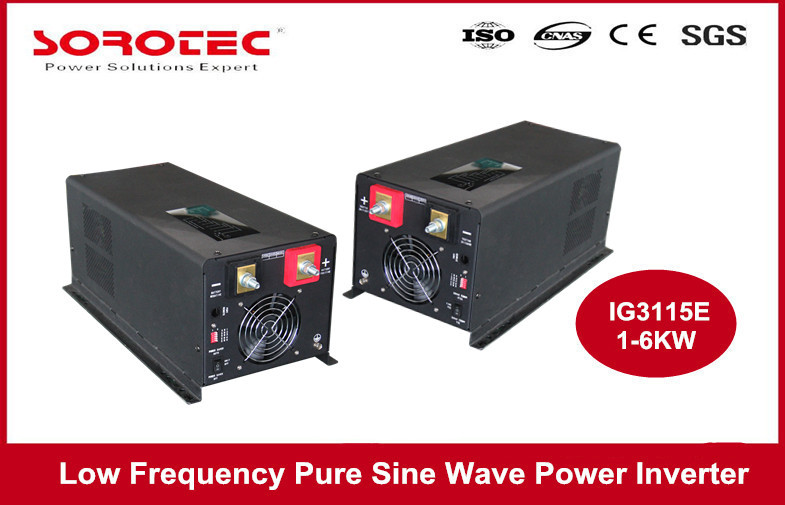

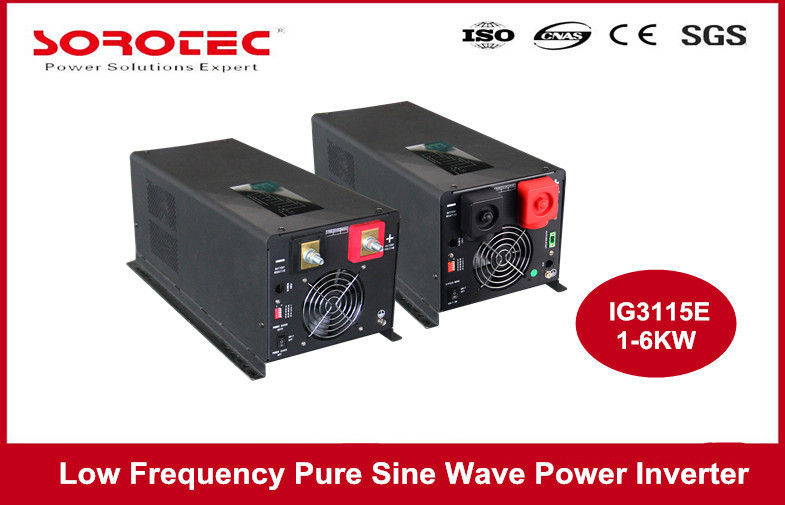

Large Capacity Pure Sine Wave Output Power Inverter for Personal Computer

Minimum Order Quantity : 1PCS (Inverter Sample Are Available) Packaging Details : Standard Exported Cartons and Pallets for Power Inverters
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: Guangdong (Mainland) , China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: IG3115E 1 - 6KW

Detail Information

Frequency Inverter: Low Frequency Inverter Output Power:: 1-6KW
Pure Sine Wave: DC/AC Inverters Output Frequency: 50HZ/60HZ
Color: Black Size(W*D*H): 598*218*179mm
Weight(kg): G.W: 16~40KG Applications: Personal Computer
High Light:

solar power inverter for home

,

solar energy inverter

Product Description

Pure Sine Wave Output Inverter ,1000W to 6000W DC/ AC Power Inverters



This is a Low Frequency Pure Sine Wave power Inverter,micro processor control guarantees high reliability,remote control with RS232,could be builtin MPPT controller.Widely used to supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc





Product Advantage:

Low Battery voltage Shut down can choose: 10V or 10.5V
Input voltage rating can choose: 184V-253V or 154V-264V
Frequency can choose: 50Hz or 60Hz
Working mode can choose: battery mode first or on line mode first
Charge current can adjust
Battery type can choose: 0-9
Remote monitor:RS232+ SNMP Card (square, tower optional)
Dry contact (square, tower optional)
stability voltage function (square, tower optional)



Key Features:

Low Frequency Pure sine wave output

The charging current is big up to 85 Amp

Output power factor is 0.9-1

Well accept generator’s output

Auto-transfer between battery and line modes

Microprocessor control guarantees high reliability

4-steps intelligent charging control to recharging time

Bypass and bypass voltage regulation function

Could be built-in MPPT controller (optional)



Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature  restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the

home appliances.



Technical Parameters:

MODEL

IG3115E 1000-6000W Pure Sine wave Output Inverter

1000W

1500W

2000W

3000W

4000W

5000W

6000W

Input Wave form

Sine wave (utility or generator)

Nominal Voltage

120Vac 230Vac

Low voltage re trip

90v ±4% & 184v/154v ±4%

Low voltage re engage

100v ±4% & 194v/164v±4%

High voltage re trip

140v ±4% & 253v ±4%

High voltage re engage

135v ±4% & 243v±4%

Max Input AC Voltage

150VAC 270VAC

Nominal Input Frequency

50Hz/ 60Hz (auto detection)

Low freq trip

47Hz for 50Hz,57Hz for 60Hz

High freq trip

55Hz for 50Hz,65Hz for 60Hz

Output Wave form

(Bypass mode)same as input

Over-Load Protection

Circuit breaker

Short circuit Protection

Circuit breaker

Transfer Switch Rating

30Amp or 40Amp

Efficiency on line transfer model

≥95%+

Line transfer time

10ms Typical

Bypass without battery connected

Yes

Max bypass current

30 amp or 40 amp

Bypass over load current

30 amp or 45 amp:Alarm

Inverter specification/output



Output wave form

Pure sine wave

Output continuos power watts

1000

1500

2000

3000

4000

5000

6000

Output continuos power VA

1000

1500

2000

3000

4000

5000

600

Power factor

0.9-1.0

Nominal Output Voltage rms

120/230VAC

Output Voltage regulation

+/- 10%rms

Output frequency

50Hz ± 0.3Hz or 60Hz ± 0.3Hz

Safety Certification

>88%

Surge ratings

3000

4500

6000

9000

12000

15000

18000

Short circuit protection

Yes,fault after 1 secs

Inverter specification/input



Nominal input voltage

12V

24V

48V

Minimum start voltage

10V

20V

40V

Low battery alarm

10.5V

21V

42V

Low battery trip

10V

20V

40V

High voltage alarm

16V

32V

64V

Power saver

Below 25 watts when enabled

Power saver

Same switched on/off on remote

Charger mode specification

95-127VAC



194-243VAC/164-243VAC(W)

Input voltage range

Dependent on battery type

Output voltage

35A/70A MAX

Charge current

0-15.7v for 12v(*2 for 24v;*4 for 48v)

Battery initial voltage for start up

15.7v for 12v(*2 for 24v;*4 for 48v)

Over charge protection shutdown



Charger curves(4stage constant curren)battery types

4 step digital controlled progressive charge

Battery type

       Fast V                   Fast V(*2 for 24v;*4 for 48v)

Gel U.S.A

14.0                                      13.7

A.G.M. 1

14.1                                      13.4

A.G.M. 2

14.6                                      13.7

Sealed lead acid

14.4                                      13.6

Gel euro

14.4                                      13.8

Open lead acid

14.8                                      13.3

Calcium

15.1                                      13.6

De-sulphation

15.5 for 4 hrs

Remote control/RS232/USB

Yes. Optional

Size: in mm

3 1000/1500Model:362*218*179mm³

2000/3000Model:442*218*179mm³

4000/5000/6000Model:598*218*179mm³

Weight

1000

1500

2000

3000

4000

5000

6000

16KG

18KG

20KG

22KG

35KG

38KG

40KG

Large Capacity Pure Sine Wave Output  Power Inverter for Personal Computer 0
