LCD Display Audible and Visual Alarm 1000-2000VA Solar Power Inverter

Minimum Order Quantity : 1PCS Inverter ( Sample Are Available) Price : Negotiable
Packaging Details : Standard Exported Cartons and Pallets for solar power inverter system Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, T/T, L/C Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C 1-2KVA

Detail Information

Product Name: Solar Power Inverter Product Capacity: 1-2KVA
Wave Form: Modified Sine Wave Output Power Factor: 0.7
Solar Controller: 40A PWM Controller Nominal Frequency: 50/60hz
Convertion: DC /AC Inverters Application: Solar System
Color: Red Dispaly: LCD&LED
Nominal Voltage: 230VAC Battery Voltage: 12v
Application: PV Bettery Current: 15/20A(Optional)
Battery Mode: >95% Battery Transfer Time: 15-20ms
High Light:

solar power inverter for home

,

home power inverter

Product Description

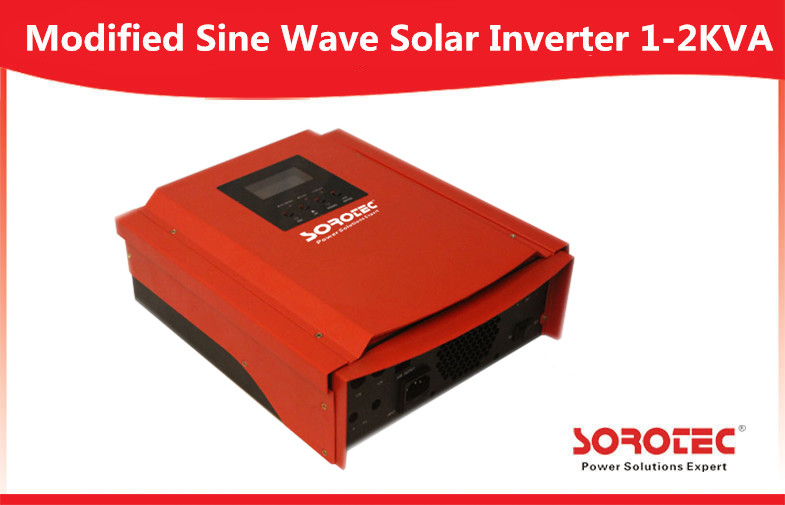

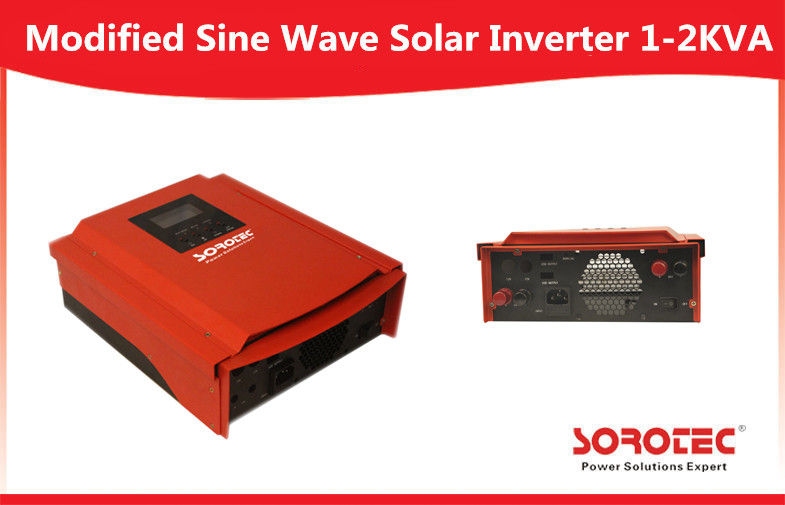

LCD Display Audible and Visual Alarm 1000-2000VA Solar Power Inverter



Brief Descriptions:

SSP3111C Series is a type of off-grid solar power inverter ,which widely used to provide reliable and long time backup power supply for micro home and office equipments. its capacity from 1KVA to 2KVA modifies sine wave output for economic to use,it built-in with 40A PWM solar charge controller for high efficiency. LCD display the information in real-times and support wide and narrow input voltage range optional.

Key Featurs:

1.Off-Grid Solar Power Inverters



2.Modified Sine Wave Inverter



3.40Amp PWM Solar Controller



4.Optional input voltage range



5.Auto-charging &Auto-restart



6.3-steps intelligent charging control



7.LCD display, audible and visual alarm



8.Priorities optional for PV/Utilities

Application

Supply the reliable long back up time power for the household appliances office appliances and solar power systems ect,

safety

to circumvent the PID effect of security,the initiative to prevent electric shock and isolation 29db noise,electromagnectic radiation is small,do not affect human health,

No fuse design,avoid fire hazard caused by the failures of dc side.

Natural cooling,IP65 protection class.

The highest level of lightning protection,the built-in ac/dc lightning protection module.

Intelligent management

Three-steps intelligent charging control to recharging.reduce group series of fault location time by 80%.

Built-in PWM solar charge controller.

Multimachine parallel adaptive intelligent power grid,power quality,to better meet the requirements of power grid access.

Support for remote monitoring and network management functions.



SOROTEC SSP3111C

Model SSP3111C 1-2KVA
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60HZ
Output power factor 0.7
Battery charge current 15/20A(optional)
Application Solar power



Full Protection

Protection for low battery voltage,overload,output short circuit and over-temperature restrain surge interference.eliminate noise,provide the reliabie power to the household appliances.



SSP3111C  1-2KVA Solar Inverter With PWM Solar Controller

Model SSP3111C 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1300W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60HZ
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90VAC~280VAC±4%(Wide Range)
Frequency Range 50/60HZ
Output
Voltage Regulation 230VAC±2%
Frequency Regulation 50/60Hz±0.1HZ
Wave Form Modified sine wave
Utility battery mode 15-20ms typical(narrow range);40ms max (wide range)
Battery mode utility 10ms max
Battery mode >80%
Line mode >95%(battery full charged)
Battery
DC VOLTAGE 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A
LCD Display &LED Indicate
Line mode Line mode1,charge current >3A Green flashing every 2 seconds.
Line mode1,charge current <=3A Green solid lighting
Off-charge mode
Battery mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
Solar charger
Maximum PV array open circuit voltage 55VDC
PV Optimal work voltage 15-18Vdc 30-36Vdc
Maximum charging current 40A
Maximum Efficiency >96%
Standby Power consumption <20W
Environment
Temperature 0℃-40℃
Humidity 5%-95%(<40℃,Non-condensing)
Storage Temperature ~15℃~55℃
Elevation <1500M
IP Protection level IP20



LCD Display Audible and Visual Alarm 1000-2000VA Solar Power Inverter 0

 Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.


Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system.



The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

1, QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.



2, Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

1. How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.

For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.

Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power
.......................................................................................................................................................................

2. How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the
size of the power inverter.
