Low Frequency Pure Sine Wave Power Inverter 3kw 3000w 48v 230vac 50hz

Minimum Order Quantity : 5PCS Power Inverters Price : 200~1000USD
Packaging Details : Standard Exported Cartons and Pallets for Low Frequency Power Inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, T/T, L/C Supply Ability : 5000PCS Per Month for Low Frequency Power Inverter
Place of Origin: Shenzhen,China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: IG3115CS 1-12KW Power Inverter

Detail Information

Product Name: Low Frequency Pure Sine Wave Power Inverter Capacity: 3kw/3000w
Wave Form: Pure SIne Wave Inverters Power Factor: 0.9~1.0
Solar Controller: Allowed Mppt Display: LCD
Application: Home And Office
High Light:

solar power inverter for home


solar energy inverter

Product Description

Low Frequency Pure Sine Wave Power Inverter 3kw 3000w 48v 230vac 50hz



IG3115CS Series 1~12kw Low Frequency Power Inverter

can provide reliable long time backup power supply for home appliances and office appliances  such as:personal computer,fridge,air-conditional,TV,Electric fan,lights.etc


Key Features:

1. Pure Sine wave Output Inverters

2. The charging current  Max up to  85A

3. High power factor  from 0.9 to 1.0

4. Well accept generator's  output

5. Full automatic and silent operation

6. Automatically transfer between battery and line modes

7. Microprocessor control guarantees high reliability


8. Remote control function


9. Bypass and bypass voltage regulation function


10. Could be setting frequency by LCD display with color screen


11. Battery type and charge current can be select


12. Three-steps intelligent charging control to recharging time



Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise protection for thunder striking,provide the reliable power to the home appliances



Technical Specification of Pure Sine Wave Inverter IG3115C Series:

MODEL IG3115CS 1-12KW Pure Sine wave Output Inverter
1KW 1.5KW 2KW 3KW 4KW 5KW 6KW 8KW 10KW 12KW
Input Wave form Sine wave (utility or generator)
Nominal Voltage 230Vac (120Vac optional)
Low voltage trip 90v ±4% & 184v/154v ±4%
Low voltage re engage 100v ±4% & 194v/164v±4%
High voltage trip 140v ±4% & 253v ±4%
High voltage re engage 135v ±4% & 243v±4%
Nominal Input Frequency 50Hz/ 60Hz (auto detection)
Frequency range 47Hz~65Hz
Output Wave form (Bypass mode)same as input
Efficiency on line transfer mode ≥95%+
Line transfer time 10ms Typical
Bypass without battery connected Yes
Inverter specification/output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000 8000 10000 12000
Output continuos power VA 1000 1500 2000 3000 4000 5000 6000 8000 10000 12000
Power factor 0.9-1.0
Nominal Output Voltage rms 230Vac (120Vac optional)
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification >88%
Surge ratings 3000 4500 6000 9000 12000 15000 18000 24000 30000 36000
Short circuit protection Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage 12V/24V/48V 96V
Minimum start voltage 10V/20V/40V 80V
Low battery alarm 10.5V/21V/42V 84V
Low battery trip 10V/20V/40V 80V
High voltage alarm 16V/32V/64V 128V
Power saver Same switched on/off on remote
Charger mode specification
Output voltage Dependent on battery type
Charge current 0-85A MAX 35A MAX 45A MAX 50A MAX
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Over charge protection shutdown 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Charger curves(4stage constant curren) battery types
4 step digital controlled progressive charge
Battery type Fast V Fast V(*2 for 24v;*4 for 48v)
Gel U.S.A 14 13.7
A.G.M. 2 14.6 13.7
Sealed lead acid 14.4 13.6
Gel euro 14.4 13.8
Open lead acid 14.8 13.3
Calcium 15.1 13.6
De-sulphation 15.5 for 4 hrs
Remote control/RS232/USB Yes. Optional

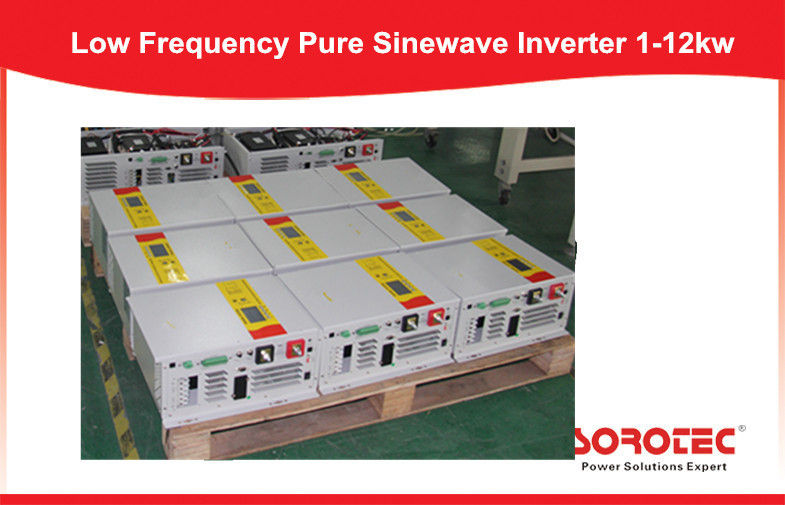

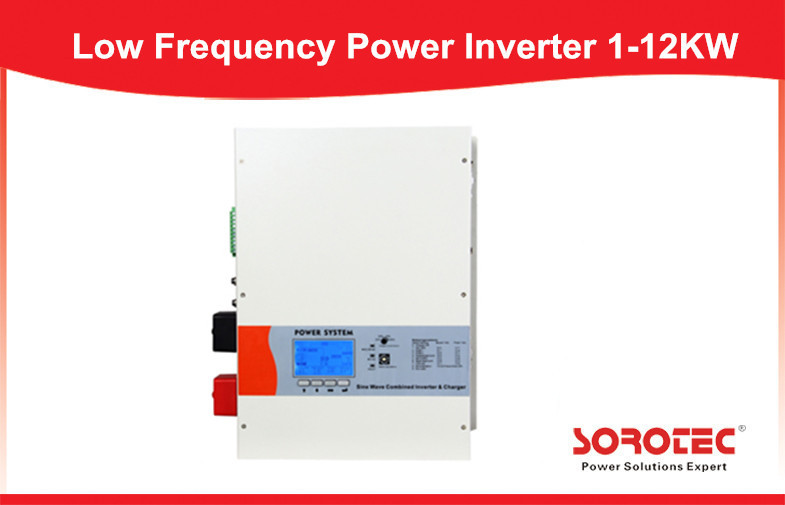

Product Show:

Low Frequency Pure Sine Wave Power Inverter 3kw 3000w  48v  230vac 50hz 0
