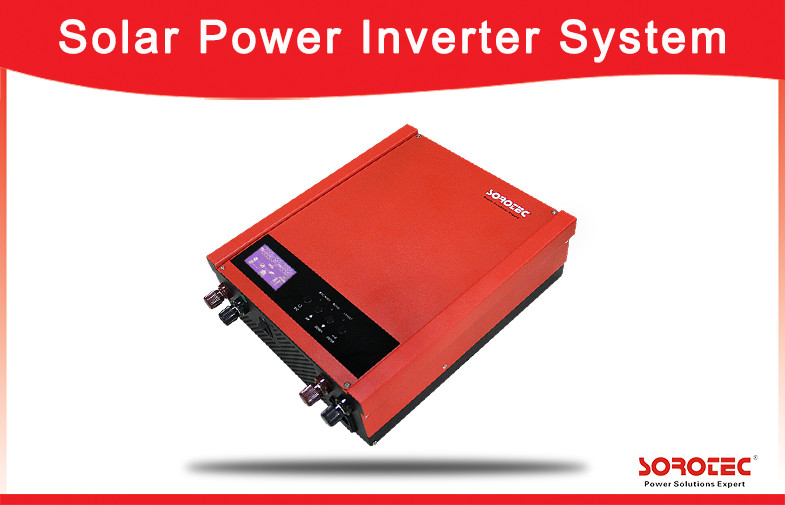

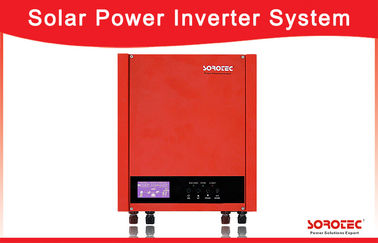

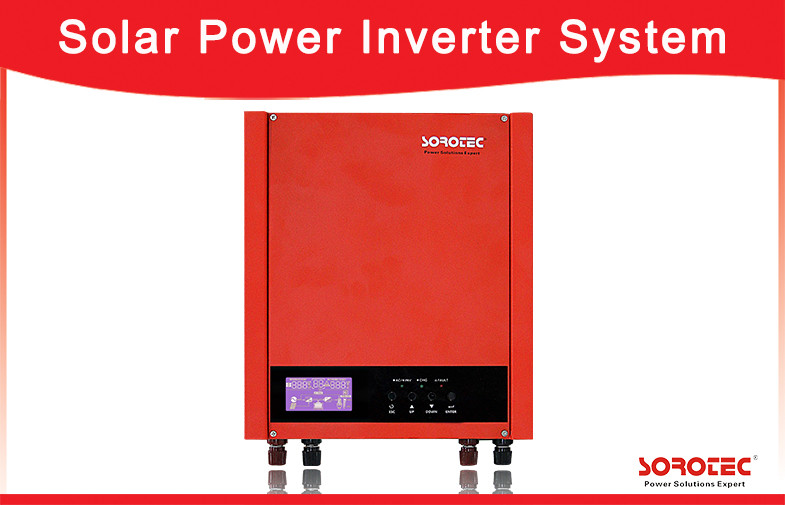

Modified Sine Wave 2000VA Solar Power Inverters 1440W for Household Appliances

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for modified sine wave solar inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping, L/C, T/T Supply Ability : 5000PCS/Month for Solar Power Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C Plus 1-2kVA

Detail Information

Product Name: 2kVA Solar Power Inverter Inverter Capacity: 1-2kVA
Nominal Voltage: 220/230/240VAC Nominal Frequency: 50/60Hz
Maximum PV Array Open Circuit Voltage: 55VDC PV Optimal Work Voltage: 30-36Vdc
Maximum Charging Current: 50A
High Light:

solar power inverter for home

,

solar energy inverter

Product Description

Modified Sine Wave 2000VA Solar Power Inverters 1440W for Household Appliances



Key Features:



1.Built-in PWM solar charge controller.

2.Modified sine wave output.

3.High frequency design.

4.Optional input voltage range.

5.Full automatic and silent operation.

6.Automatic charging.

7.Automatic transfer AC-DC

8.Over-load protection.

9.Automatic restart.

10.Three-steps intelligent charging control to recharging.

11.LCD display, audible and visual alarm.





Product Descriptions of Solar Power Inverter

Model SSP3111C Plus 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1440W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60Hz
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range)
Frequency Range 50/60Hz
Output
Voltage Regulation 230VAC±10%
Frequency Regulation 50/60Hz±0.1Hz
Wave Form Modified Sine wave
Utility to battery mode 15-20ms typical(narrow range); 40ms max(wide range)
Battery mode to Utility 10ms max
Battery mode efficiency >80%
Line mode efficiency >95% (battery full charged)
Battery
DC Voltage 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A
LCD Display & LED Indicate
Line mode Line mode 1, charge current >3A Green flashing every 2 seconds
Line mode 2,charge current ≦3A Green solid lighting
Off-charge mode Green flashing as cycle:
Battery Mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
SOLAR CHARGE
Maximum PV Array Open Circuit Voltage 55VDC
PV Optimal Work Voltage 15V~18Vdc 30-36Vdc
Maximum Charging Current 50A
Maximum Efficiency >96%
Standby Power Consumption <20W
Environment
Temperature 0°C~40°C
Humidity 5%-95% (<40°C, Non-condensing)
Storage Temperature -15°C~55°C
Elevation <1500m
IP Proyection level IP20
PHYSICAL
Dimension,D×W×H (mm) 298.9×250×105
Net Weight (kgs) 2.62 2.76
