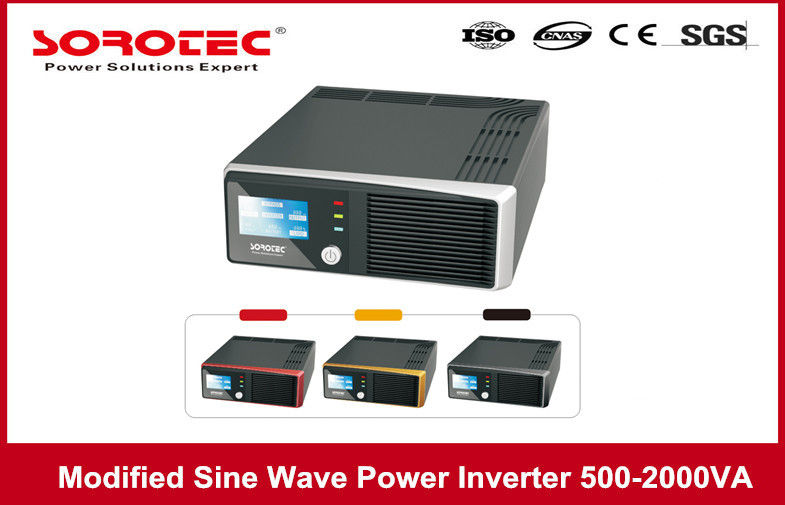

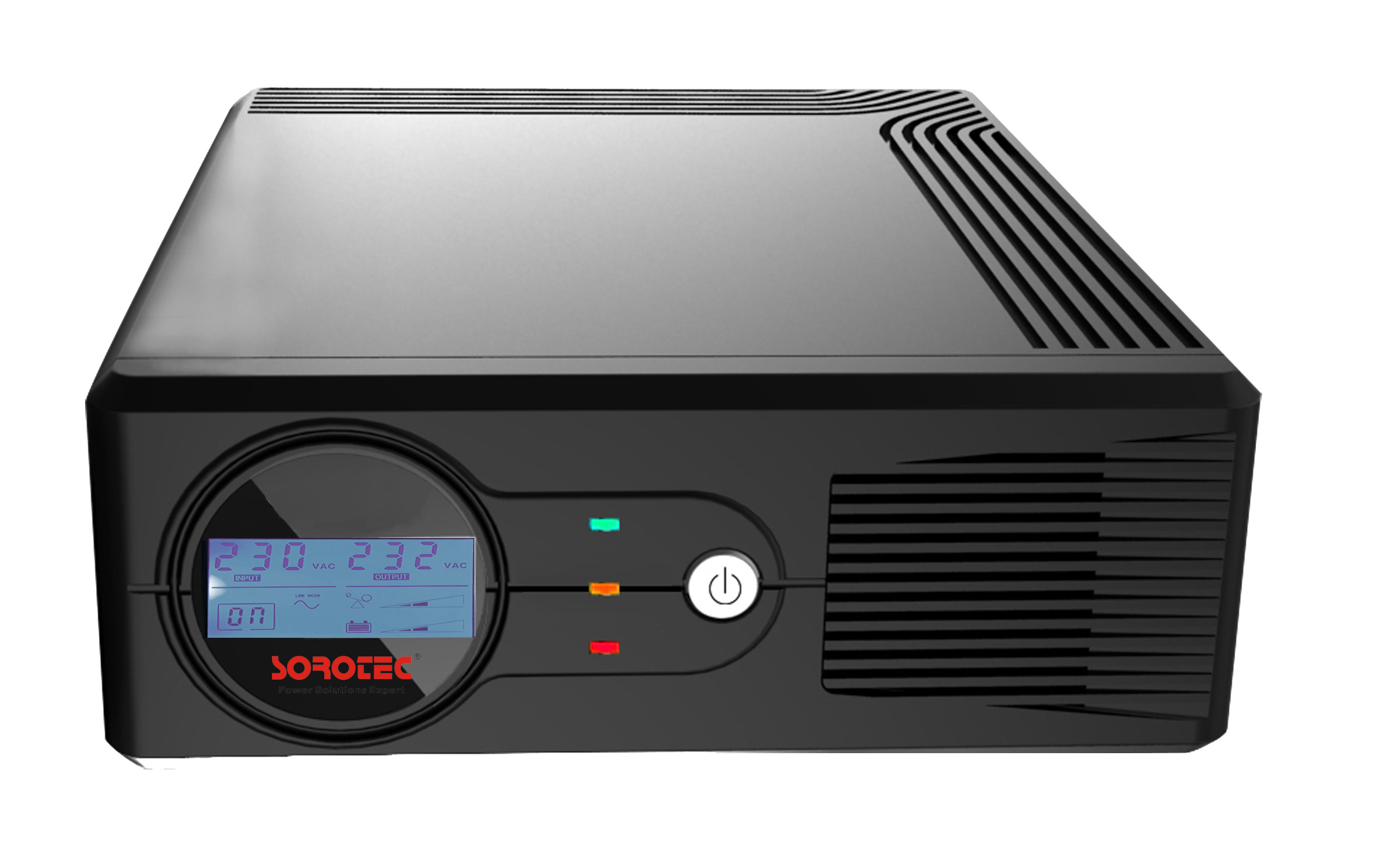

Modified Sine Wave DC to AC Power Inverter 500va/300w ,1000va/600w ,1200va/720w

Minimum Order Quantity : 30PCS Price : 100~300 USD
Packaging Details : Standard Exported Cartons and Pallets for Power Inverters Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, , T/T, Western Union Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: IG3110C Series 500 - 2000VA Power Inverter

Detail Information

Power Inverter: 500-2000va Power Factor: 0.6
Power Source: AC/Battery Auto Transfer: DC To AC
Wave Form: Modified Sine Wave AC Charger: 10A/20A
Home Inverter: For PC,TV,DVD,Fan.etc
High Light:

solar energy inverter

,

home power inverter

Product Description

Modified Sine Wave DC to AC Power Inverter 500va/300w ,1000va/600w ,1200va/720w



Quick Detaile:

IG3110C Series is a type of high frequency modified sine wave power inverter,which capacity from 500va to 2000va with power factor 0.6 .in-built 10A/20A AC charger can charging for 200Ah battery.Rack-tower design makes the inverter looking good and small size .it support nominal voltage 220/230/240vac, 50 hz /60hz   system and can provide reliable long time backup power supply for home and office equipments.etc




Key Features:

  • 3-steps intelligent charging control
  • Optional input voltage range
  • Automatic charging , auto-restart.
  • LCD display,audible &visual alarm
  • Modified sine wave output inverter.
  • Overload,output short circuilt protection
  • Rack-Tower design, small size&light weight.
  • 10Amp /20Amp optional charger for up to 200Ah battery.



Home Inverter Power Supply:

IG3110C Series Inverter Can Supply the reliable long back up time power for the Home appliances and office appliances .(DVD,Fan,TV,FM Radio,Personal Computer.......)





Technical Specifications of LCD UPS inverter IG3110C 500-2000VA


Model

IG 3110C 500-2000VA

500-12

1000-12

2000-24

1000-24

Capacity

500VA/300W

1000VA/600W

2000VA/1200W

1000VA/600W

Nominal voltage

220/230/240VAC

Nominal frequency

50/60Hz

Input

Voltage Range

176VAC-280VAC(±3VAC)

Frequency Range

50/60Hz

Output

Voltage Regulation

220/230/240VAC±2%

Frequency Regulation

50/60Hz+0.1Hz

Wave Form

Modified sine wave

Switch time

Standard 2~4ms   Typical 6ms

Current

Charge Current

10A

10A

10A

6A

DC Voltage

12V

12V

24V

24V

Overcharge Protection

15V

15V

30V

30V

Display

LCD

UPS Status, Input/output Voltage and Frequency, Load, AC, battery , fault, etc

Operating Environment

Temperature

0℃~40℃

Humidity

5%~95%(<40℃, no condensation)

Storage Temperature

-25℃~55℃

Elevation Noise      (within 1 metre)

Less than 1500 meter
<45dB

Physical

Weight(KG)

Net weight

2.0

2.5

2.5

2.0

Gross weight

2.2

2.7

2.7

2.2

Dimension:WXDXH mm

224×225×80





Modified Sine Wave DC to AC Power Inverter 500va/300w ,1000va/600w ,1200va/720w 0
