Off Grid Solar UPS Power ondulur Inverter with MPPT 40A Charger Controller

Minimum Order Quantity : USD10000 Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: Guangdong (Mainland) , China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: IG3115C 1 - 6KW

Detail Information

Output Voltage:: 120 / 230 Output Power:: 1-6kw
Type: DC/AC Inverters Output Frequency: 50HZ/60HZ
Color: Black Size(W*D*H): 598*218*179mm
Weight(kg): G.W: 16~40KG Rated Frequency: 50/60HZ
Load Power (W): 1.0
High Light:

solar energy inverter

,

home power inverter

Product Description

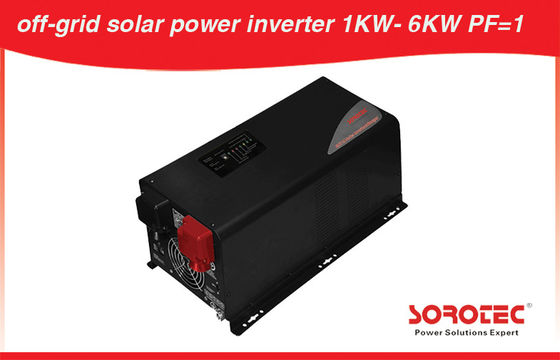

Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller:





Specifications:



1.Dry contact

2.Inverter output protect

3.Charge input protect

4.RS232

5. Intelligent slot

6. Remote port

7. Pure sine wave output





Product Description

Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 0Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 1Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 2Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 3Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 4Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 5



Technical Parameters:

MODEL

IG3115E 1000-6000W Pure Sine wave Output Inverter

1000W

1500W

2000W

3000W

4000W

5000W

6000W

Input Wave form

Sine wave (utility or generator)

Nominal Voltage

120Vac 230Vac

Low voltage re trip

90v ±4% & 184v/154v ±4%

Low voltage re engage

100v ±4% & 194v/164v±4%

High voltage re trip

140v ±4% & 253v ±4%

High voltage re engage

135v ±4% & 243v±4%

Max Input AC Voltage

150VAC 270VAC

Nominal Input Frequency

50Hz/ 60Hz (auto detection)

Low freq trip

47Hz for 50Hz,57Hz for 60Hz

High freq trip

55Hz for 50Hz,65Hz for 60Hz

Output Wave form

(Bypass mode)same as input

Over-Load Protection

Circuit breaker

Short circuit Protection

Circuit breaker

Transfer Switch Rating

30Amp or 40Amp

Efficiency on line transfer model

≥95%+

Line transfer time

10ms Typical

Bypass without battery connected

Yes

Max bypass current

30 amp or 40 amp

Bypass over load current

30 amp or 45 amp:Alarm

Inverter specification/output



Output wave form

Pure sine wave

Output continuos power watts

1000

1500

2000

3000

4000

5000

6000

Output continuos power VA

1000

1500

2000

3000

4000

5000

600

Power factor

0.9-1.0

Nominal Output Voltage rms

120/230VAC

Output Voltage regulation

+/- 10%rms

Output frequency

50Hz ± 0.3Hz or 60Hz ± 0.3Hz

Safety Certification

>88%

Surge ratings

3000

4500

6000

9000

12000

15000

18000

Short circuit protection

Yes,fault after 1 secs

Inverter specification/input



Nominal input voltage

12V

24V

48V

Minimum start voltage

10V

20V

40V

Low battery alarm

10.5V

21V

42V

Low battery trip

10V

20V

40V

High voltage alarm

16V

32V

64V

Power saver

Below 25 watts when enabled

Power saver

Same switched on/off on remote

Charger mode specification

95-127VAC



194-243VAC/164-243VAC(W)

Input voltage range

Dependent on battery type

Output voltage

35A/70A MAX

Charge current

0-15.7v for 12v(*2 for 24v;*4 for 48v)

Battery initial voltage for start up

15.7v for 12v(*2 for 24v;*4 for 48v)

Over charge protection shutdown



Charger curves(4stage constant curren)battery types

4 step digital controlled progressive charge

Battery type

       Fast V                   Fast V(*2 for 24v;*4 for 48v)

Gel U.S.A

14.0                                      13.7

A.G.M. 1

14.1                                      13.4

A.G.M. 2

14.6                                      13.7

Sealed lead acid

14.4                                      13.6

Gel euro

14.4                                      13.8

Open lead acid

14.8                                      13.3

Calcium

15.1                                      13.6

De-sulphation

15.5 for 4 hrs

Remote control/RS232/USB

Yes. Optional

Size: in mm

3 1000/1500Model:362*218*179mm³

2000/3000Model:442*218*179mm³

4000/5000/6000Model:598*218*179mm³

Weight

1000

1500

2000

3000

4000

5000

6000

16KG

18KG

20KG

22KG

35KG

38KG

40KG





Product Advantage:

1.Low Battery voltage Shut down can choose:  10V or 10.5V

2. Input voltage rating can choose: 184V-253V or 154V-264V

3. Frequency can choose: 50Hz or 60Hz

4. Working mode can choose: battery mode first or on line mode first

5. Charge current can adjust

6. Battery type  can choose: 0-9

7. Remote monitor

8. Rs232

9. SNMP Card (square, tower optional)

10. Dry contact  (square, tower optional)

11. stability voltage function (square, tower optional)



Product Function:

1. Inverter output protect



2. Charge input protect



3. over load protect



4. Over temperature protect



5. short circuit protect



6. Over charge protect



7. Battery over voltage protect



Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 6Off Grid Solar UPS Power ondulur  Inverter with MPPT 40A Charger Controller 7



APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip







COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.







WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.






FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
