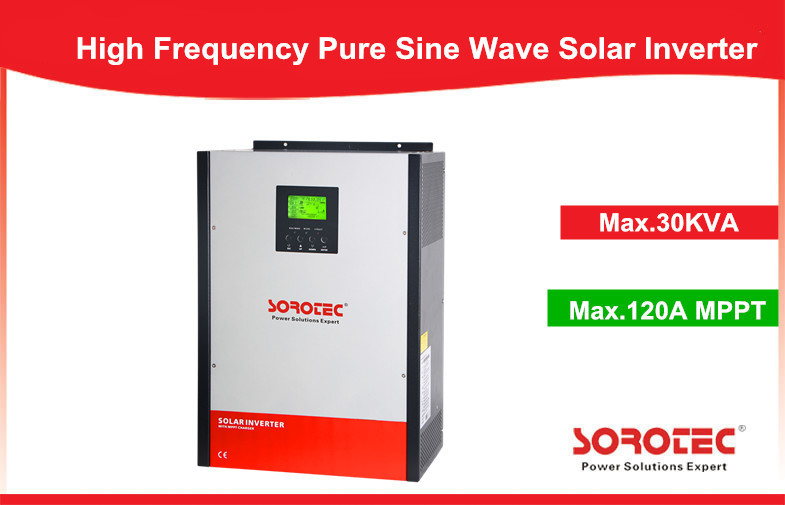

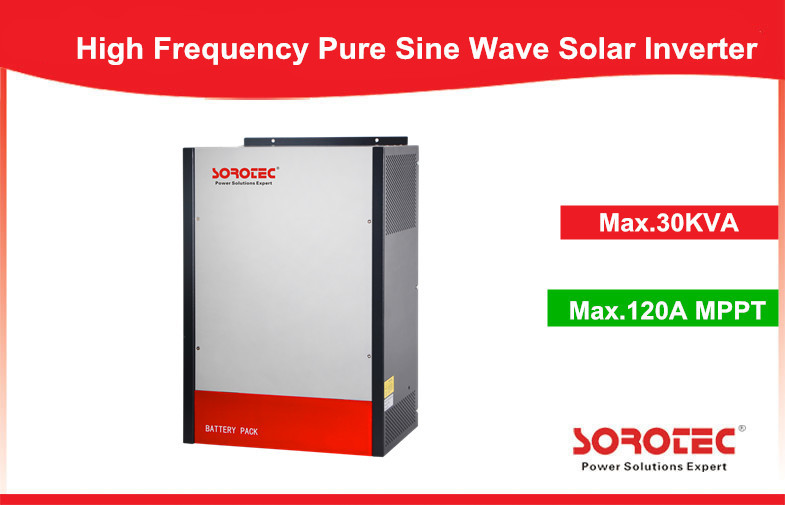

On Grid Off Grid Pure Sine Wave Solar Power Inverters,Hybrid MPPT Inverter 5kva

Minimum Order Quantity : 1PCS Solar Power Inverters Available Price : 100-1000
Packaging Details : Standard Exported Cartons and Pallets for Solar Power Inverters Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000VA

Detail Information

Product Name: On Grid Off Grid Pure Sine Wave Solar Power Inverters Output Power: 5KVA/6000W
Solar Controller: 120A MPPT Output Voltage: 220/230/240VAC
Input Frequency: 50/60HZ Power Factor: 1.0
Application: Solar Panel System
High Light:

solar power inverter for home


solar energy inverter

Product Description

3KVA DC / AC Hybrid power inverter solar,pure sine inverter with 80A MPPT



SOROTEC SSP3119C Series On/Off Grid Hybrid Solar Power Inverters capacity from 1kva to 5kva ,built-in max.120A mppt solar charge controller and with high output power factor 1.0,parallel operation up to 6 units for 3kva-5kva and max power is 30kw.special for self-consumption and feed-in to the grid ,provide long time backup power supply for solar power systems,home and office equipments such as:fridge,air-conditional,TV,DVD,Electric fan,Lights.etc.



Key Features

High frequency pure sine wave output

Built-in MPPT solar charge controller

High output power factor up to 1.0

Self-consumption and Feed-in to the grid

Programmable supply priority for PV, Battery or Grid

User-adjustable charging current and voltage

Battery Pack with energy storage function

Monitoring software for real-time status display and control

Parallel operation up to 6 units only for 3K/4K/5K models

Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup


Typical Application

Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc



Protection Function

Low battery voltage,Over load,Output short circuit ,Over- temperature,Restrain surge interference,Eliminate noise,Protection for thunder striking,provide the reliable power to the home appliances.



Wall Mounted Integrated Solar Power Inverter System Technical Specifications

MODEL 1K-12 2K-24 3K-48 4K-48 5K-48
Max.PV Array Power 1000W 2000W 4000W 4000W 6000W
Rated Output Power 1000W 2000W 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 15~115VDC 30~115VDC 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 1 1 2
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 4.3A 8.7A 13A 17.4A 21.7A
Power Factor >0.99
Maximum Conversion Efficiency (DC/AC) 90%
Accepatable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 30A 40A
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
Nominal DC Voltage 12VDC 24VDC 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 140A 140A 180A
Parallel Function N/A N/A Yes Yes Yes
Communication USB or RS232/Dry-Contact
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50
