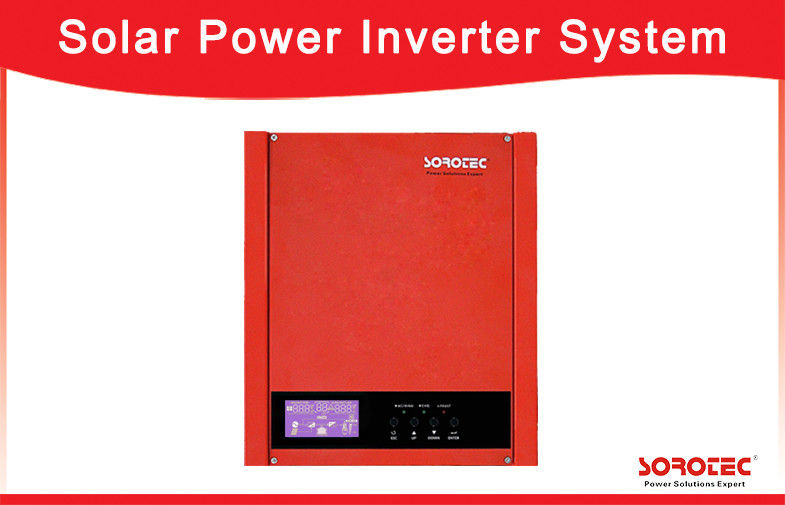

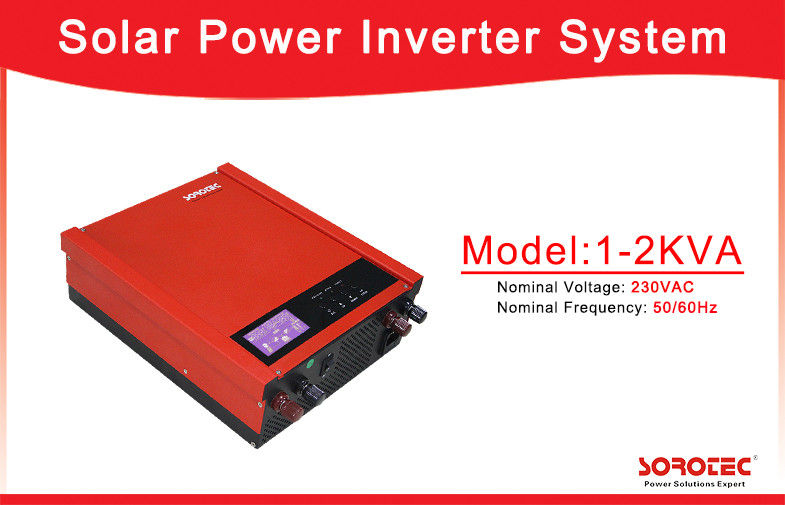

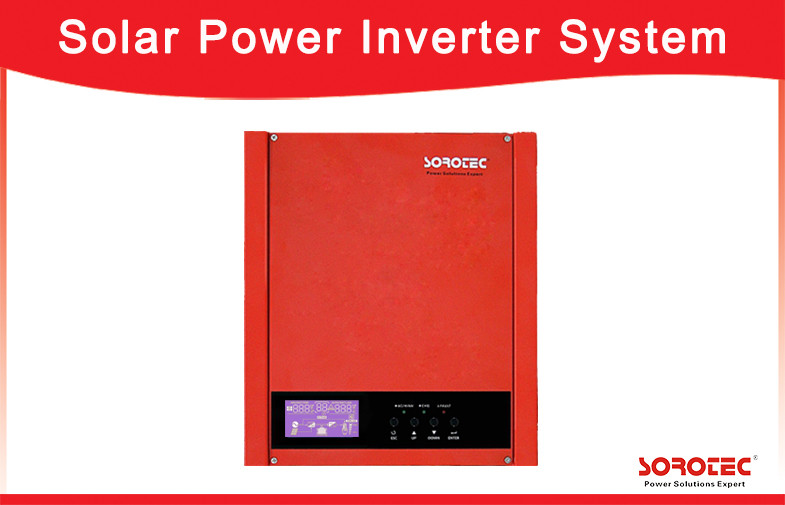

Red 1000VA 720W Solar Power Inverters with LCD Display for Office Appliances

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for modified sine wave solar inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping, L/C, T/T Supply Ability : 5000PCS/Month for Solar Power Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: SSP3111C Plus 1-2kVA

Detail Information

Product Name: 1000VA/720W Solar Power Inverters Inverter Capacity: 1-2kVA
Maximum Efficiency: >96% Standby Power Consumption: <20W
Humidity: 5%-905% (<40°C, Non-condensing) Dimension,D×W×H (mm): 298.9×250×105
Net Weight (kgs): 2.62/2.76KGS IP Proyection Level: IP20
High Light:

solar power inverter for home

,

solar energy inverter

Product Description

High Quality 1000VA 720W Solar Power Inverters with LCD Display for Office Appliances



     SSP3111C Plus Series inverter is a type of off-grid solar power inverter ,which widely used to provide reliable and long time backup power supply for the household appliances, office appliances and solar power systems etc,LCD display the information in real-times and support wide and narrow input voltage range optional. The protection for the low batteryvoltage, overload, output short circuit and over-temperature restrain surge interference.



Key Features:



1.Built-in PWM solar charge controller.

2.Modified sine wave output.

3.High frequency design.

4.Optional input voltage range.

5.Full automatic and silent operation.

6.Automatic charging.

7.Automatic transfer AC-DC

8.Over-load protection.

9.Automatic restart.

10.Three-steps intelligent charging control to recharging.

11.LCD display, audible and visual alarm.





Product Descriptions of Solar Power Inverter

Model SSP3111C Plus 1000-2000VA
1000-12 2000-24
Capacity 1000VA/720W 2000VA/1440W
Nominal Voltage 220/230/240VAC
Nominal Frequency 50/60Hz
Input
Voltage Range 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range)
Frequency Range 50/60Hz
Output
Voltage Regulation 230VAC±10%
Frequency Regulation 50/60Hz±0.1Hz
Wave Form Modified Sine wave
Utility to battery mode 15-20ms typical(narrow range); 40ms max(wide range)
Battery mode to Utility 10ms max
Battery mode efficiency >80%
Line mode efficiency >95% (battery full charged)
Battery
DC Voltage 12V 24V
Overcharge Protection 16V 32V
Charge Current 15A/20A 10A
LCD Display & LED Indicate
Line mode Line mode 1, charge current >3A Green flashing every 2 seconds
Line mode 2,charge current ≦3A Green solid lighting
Off-charge mode Green flashing as cycle:
Battery Mode Yellow lighting
Overload Red flashing every 0.5 second
Fault Red lighting
SOLAR CHARGE
Maximum PV Array Open Circuit Voltage 55VDC
PV Optimal Work Voltage 15V~18Vdc 30-36Vdc
Maximum Charging Current 50A
Maximum Efficiency >96%
Standby Power Consumption <20W
Environment
Temperature 0°C~40°C
Humidity 5%-95% (<40°C, Non-condensing)
Storage Temperature -15°C~55°C
Elevation <1500m
IP Proyection level IP20
PHYSICAL
Dimension,D×W×H (mm) 298.9×250×105
Net Weight (kgs) 2.62 2.76
