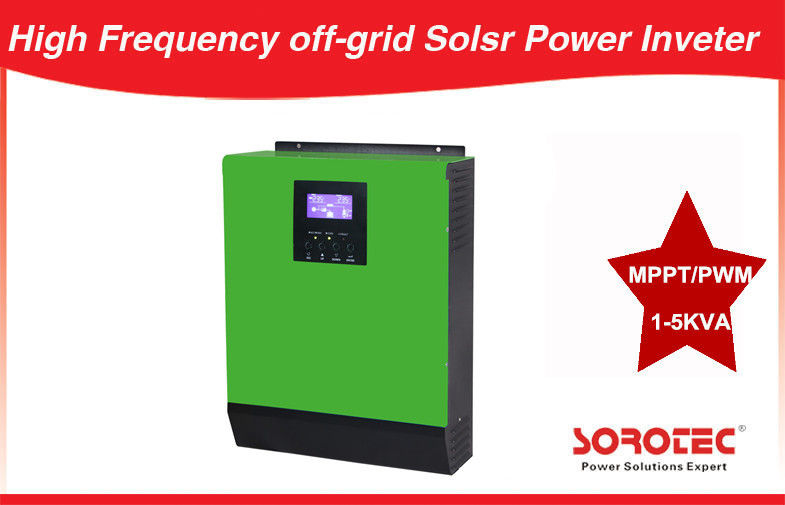

Wall Mounted affordable Solar Power Inverters Built in 80A MPPT Controller

Minimum Order Quantity : 1pcs Price : 1-500 USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC /OEM
Certification: CE,ROHS,RSO9000 Model Number: SSP3118C2 1-5KVA

Detail Information

Product Name: Solar Power Inverter Capacity: 1kva-5kva
Wavaform: Pure Sine Wave Output Power Factor: 0.8
Suitable Loads: Fridge,Air-conditional Nominal Voltage: 220/230vc
Nominal Frequency: 50/60hz Built-in: MPPT Solar Charge Controller
High Light:

solar power inverter for home

,

home power inverter

Product Description



Wall Mounted affordable Solar Power Inverters Built in 80A MPPT Controller



Key Features



►High frequency pure sine wave output



►Support AC/Solar input priority



►Remote panel available



►Charging current selectable



►AC/Solar output priority optional



►MPPT solar charge controller inbuilt



►Auto-restart while AC is recovering



►Support mains voltage or generator power



►Full protection for overload and short circuit



►Smart  battery charger design can prolong the  use life of battery



►Parallel operation max up to 6 units only available for 4KVA/5KVA



►Optional  input voltage range for home appliances and personal computer







Fully Protection:

Low battery voltage,Over load,Output short circuit,Over- temperature,Restrain surge interference,Eliminate noise,Protection for thunder striking







Technical Parameter:



MODEL C2 1K-2425 C2 2K-2425 C2 3K-2425 C2 4K-4880 C2 5K-4880
Rated Power 1KVA/800W 2KVA/1600W 3KVA/2400W 4KVA/3200W 5KVA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 4000W
MPPT Range @ Operating Voltage 30 ~ 66VDC 30 ~ 66VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145 VDC
Maximum Solar Charge Current 25A 25A 80A
Maximum AC Charge Current 20A 30A 30A 60 A
Maximum Charge Current 25A 30A 30A 140A
AC charger and solar charger can’t work at the same time.
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 6.8 7.4 11.0
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C







Application:



Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.
