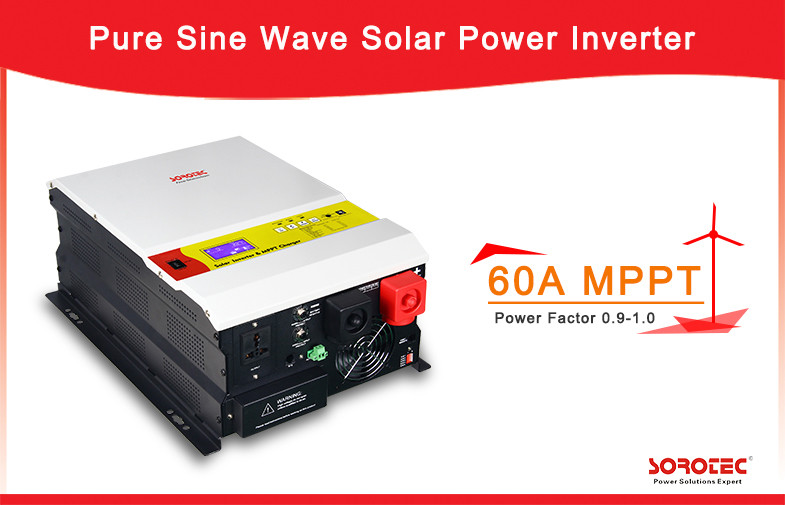

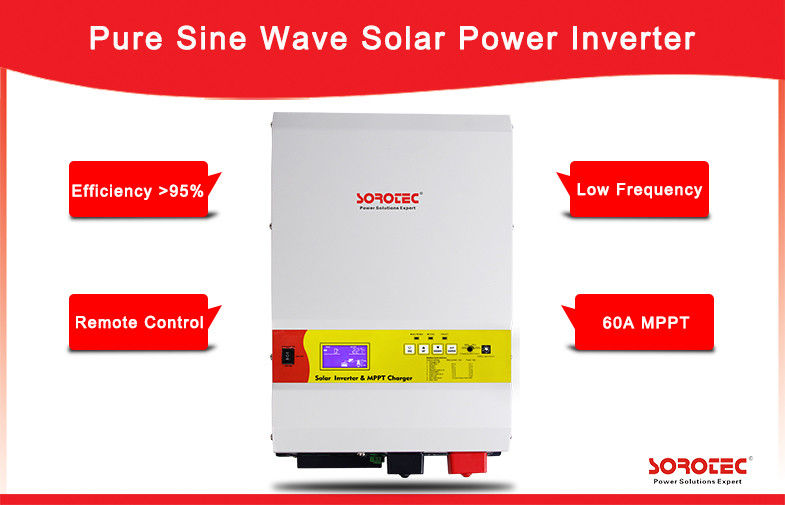

High Quality Output Power Factor 0.9-1.0 6kW 48V Solar Inverters with LCD Display

Good quality High Frequency Online UPS for sales
Good quality High Frequency Online UPS for sales
As an exclusive agent UPS distributor of SORO, We enjoyed wonderful business cooperation with them. Let's grow fast together!

—— Dennis Spalding --from LAX, USA

Perfect UPS, Perfect software(SNMP card), Perfect service, that is SORO UPS!!!

—— Antonie Williams --from Dubai

April, 2015, I visited Sorotec factories, I was pleasantly suprised by their design and artwork to ensure quality!!

—— Anuoluwapo Omobolaji Ayokunle

I'm Online Chat Now

High Quality Output Power Factor 0.9-1.0 6kW 48V Solar Inverters with LCD Display

China High Quality Output Power Factor 0.9-1.0 6kW 48V Solar Inverters with LCD Display supplier
High Quality Output Power Factor 0.9-1.0 6kW 48V Solar Inverters with LCD Display supplier High Quality Output Power Factor 0.9-1.0 6kW 48V Solar Inverters with LCD Display supplier

Large Image :  High Quality Output Power Factor 0.9-1.0 6kW 48V Solar Inverters with LCD Display

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SSP3115C 1-10kW

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Price Negotiable
Packaging Details: Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS per Month for Pure Sine Wave Solar Power Inverters
Contact Now
Detailed Product Description
Capacity: 1-10kW Minimum Start Voltage: 20V/40V
Maximum Effciency: >96% Maximum Charging Current: 60A
Norminal Voltage: 120VAC(option) 230VAC Output Frequency: 50Hz ± 0.3Hz Or 60Hz ± 0.3Hz

High Quality Output Power Factor 0.9-1.0 5kW 48V Solar Inverters with LCD Display

Product Snapshot:

1. Model: 1-10kW

2. Nominal Voltage: 230VAC

3. Nominal Frequency: 50Hz/60Hz

4. Output Power Factor: 0.9-1.0

5. Output Wave Form: Pure Sine Wave
Key Features:

1.Built-in MPPT solar controller
2.Pure sine wave output
3.Low frequency design
4.DIP switch to set AC input voltage range and low battery trip-voltage
5.Output power factor is 0.9-1 and output socket can choose
6.Well accept generator's output and auto generator start terminal
7.Full automatical and silent operation
8.Automatically transfer between battery and line modes
9.Microprocessor control guarantees high reliability
10.Remote control,BTS function(optional)
11.Four-steps intelligent charging control to recharging time
12.Bypass function with AVR function(optional)
13.The charging current is big up to 85 Amp,Can adjust through front panel
14.AC/solar output priority optional
15.Charging mode priorities optional
16.Battery type can choose through front panel

Product Descriptions Of SSP3115C 1-10kW Solar Power Inverter

MODEL SPS3115C 1-10KW
1kW 1.5kW 2kW 3kW 4kW 5kW 6kW 8kW 10kW
Input wave form Sine wave (utility or generator)
Normal voltage 120VAC(option)    230VAC
Low voltage re trip 90V±4% & 184V/154V±4%
Low voltage re engage 100V±4% & 194V/164V±4%
High voltage re trip 140V±4% & 253V±4%
High voltage re engage 135V±4% & 243V±4%
Normal input frequency 50Hz/ 60Hz (auto detection)
Frequency range 47Hz~65Hz
Output Wave form (Bypass mode)same as input
Over-Load Protection Circuit breaker
Short circuit Protection Circuit breaker
Efficiency on line transfer mode undefined95%
Line transfer time 10ms Typical
Bypass without battery connected Yes
Inverter output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000 8000 10000
Surge ratings 3000 4500 6000 9000 12000 15000 18000 24000 30000
Power factor 0.9-1.0
Nominal Output Voltage rms 120VAC(option) 230VAC
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Short circuit protection Yes,fault after 1 secs
Inverter input
Nominal input voltage 24V/48V 48V
Minimum start voltage 20V/40V 40V
Low battery alarm 21V/42V 42V
Low battery trip 20V/40V 40V
High voltage alarm 32V/64V 64V
Charger
Output voltage Dependent on battery type
Charge current 10-85A MAX 70A 85A
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection 15.7v for 12v(*2 for 24v;*4 for 48v)
Solar Charger
MPPT Range@Operating Voltage 30-115VDC/60-115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum Charging Current 60A
Maximum Effciency >96%
