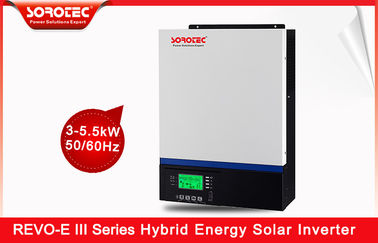

MPPT Hybrid Solar Inverter Charge Controller REVO E PLUS 240VAC 90A With Battery

Minimum Order Quantity : 10PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T Supply Ability : 5000PCS per Month for Pure Sine Wave Solar Power Inverters
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO-E PLUS

Detail Information

Capacity: 3-5.5kW Frequency Range: 50HZ/60HZ(Auto Sensing)
Output Power Factor: 1 Acceptable Input Voltage Range: 90-280VAC Or 170-280 VAC
Communication: USB Or RS232/Dry-Contact Parallel Function: Optional
Maximum AC Charge Current: 60A Output Type: Single
High Light:

grid hybrid solar power inverter

,

hybrid pv inverter

Product Description

REVO E PLUS 240VAC 90A MPPT Solar Charge Controller Solar Power Inverter with Battery Optional






Product Snapshot:

1.Model: 3-5.5kW

2.Nominal Voltage: 220/230/240VAC

3. Frequency Range: 50/60Hz

4. MPPT Solar Charge Controller: 90A

5. Output Power Factor: PF=1.0




Key Features:

1.On&Off Grid
2.PV and utility power take the load at same time (can setting)
3.Output power factor PF=1.0
4.AC charging and AC output time setting
5.Charging voltage and charging current timing
6.External Wi-Fi device potional
7.Connected with battery optional
8.Wide PV Input Range(120-450VDC)







Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO E PLUS 3K-24 REVO E PLUS 3.2K-48 REVO E PLUS 5.5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 13.6A/13.0A/12.5A 14.5A/13.9A/13.3A 25A/23.9A/22.9A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 120-280VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Surge Power 6000W 6400W 11000W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
Net Weight(KG) 11.75 11.9
Rough Weight(KG) 12.75 13.1
Dimension (W x D x H)mm 345x476x133.2





FACTORY SHOW


Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China

MPPT Hybrid Solar Inverter Charge Controller REVO E PLUS 240VAC 90A With Battery 0

Exhibition


MPPT Hybrid Solar Inverter Charge Controller REVO E PLUS 240VAC 90A With Battery 1


FAQ


Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?
A3: Shipped in 30 days after payment.

Q4: What is the warranty of inverter?
A4: One year warranty on SOROTEC-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
